Samsung SRD-470DP 4 Way DVR 100ips

Product ID: SRD-470DP
Samsung SRD-470DP 4 Way DVR 100ips

Price: 465.00 (558.00 Inc. VAT)

Hard Drive Options: 500 Gigabyte
1000 Gigabyte (+70.00)
Quantity:

Add to cart


  • 4ch CIF real-time DVR
  • Video (H.264) / Audio (ADPCM)
  • CIF Resolution real-time recording capability
  • (Full 4CIF resolution recording support)
  • Up to 4ch audio inputs and 1ch audio output
  • Combined BNC and VGA video output for main display (up to 1280 x 1024)
  • SRD-470D : SATA I/F HDD support (Internal Max. HDD x 1)
  • HDD & DVD SATA interface
  • DDNS
  • Built-in web server
  • Built in DVD Writer backup
  • 1 Year Warranty

The Samsung SRD-470 is capable of recording images in full D1 resolution and uses H.264 video compression in order to conserve hard drive space. This device can also record in real time at 100 ips which is 25 ips per camera. It features a built in DVD writer which allows easy local backup to DVD. The DVR combines either BNC or PC VGA monitor connection making it extremely versatile.

The built in web server allows it to be connected to a router to support remote monitoring via the internet. This Samsung DVR is suitable for small commercial or domestic surveillance.

DISPLAY
Video Inputs 4 Composite video 0.5-1 Vpp, 75 ohm automatic termination
Resolution NTSC : 704 x 480 / PAL : 704 x 576
Live Frame Rate NTSC : 120fps / PAL : 100fps
Resolution NTSC : 704 x 480 / PAL : 704 x 576
Multi Screen Display 1 / 4 / PIP
PERFORMANCE
Operating System Embedded Linux
Recording Compression H.264
Record Rate Up to 100fps@704 x 576(P)
Up to 100fps@704 x 288(P)
Up to 100fps@352 x 288(P)
Mode PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (0.8 / 1.6 / 3.1 / 6.2 / 12.5 / 25ips)
Overwrite Modes Continuous
Pre-alarm Up to 30sec. (5, 10, 20, 30sec.)
Post-alarm Up to 6hour. (5, 10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Search & Playback Search Mode Date/Time, Event, Back up, Pos, Motion (*All searching mode include prview function)
Playback Function Fast forward / backward, Slow forward / backward, Step forward / backward
Network Transmission Speed Up to 4 Mbps, Unlimited 4M / 2 / 1.5 / 1 Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50 kbps
Bandwidth Control Automatic
Multi Stream H.264 (4CIF / 2CIF / CIF)
Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Monitoring Net-i viewer, Smart viewer, Web viewer
Storage Internal HDD Up to 1 SATA HDD
External HDD N/A
DVD Writer (Back up) Yes
USB (Back up) 3 USB ports
File Format (Back up) AVI, MDB (DVR play back), EXE (Include player)
Security Password Protection 1 Admin, 10 Group, 20 User per 1 Group, User can be assigned authority for function
Data Authentication Watermark
INTERFACE
Monitors VGA Analog RGB 800 x 600, 1024 x 768, 1280 x 1024 resolution
HDMI N/A
Main Composite BNC 1 Vp-p, 75 ohm
Sub Composite 1BNC, 1 Vp-p, 75 ohm, Support multi screen and camera title
Loop Outputs 4
Audio Inputs 4 Line in
Output 1 Line
Compression ADPCM
Sampling Rate 16KHz
Alarm Inputs Terminal 4 inputs, NO/NC
Outputs Terminal 4 relay outputs, NO/NC
Remote Notification Notification via e-mail
Connections Ethernet RJ-45 10/100/1000 Base-T
Serial Interface RS-232C
PTZ Control Interface RS-485
PTZ Keyboard RS-485
USB 2 USB 2.0 ports
eSATA N/A
Application Support Mouse, Remote controller
Communication Protocols Supported PTZ Cameras Samsung-E, Samsung-T, Pelco-D, Pelco-P, Panasonic, Phillips, AD, DIAMOND ERNA, KALATEL, VCL TP, VICON
GENERAL
Electrical Input Voltage 100 ~ 240V AC ±10%, 50/60Hz
Power Consumption Max. 35W (With 1X HDD)
Environmental Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F)
Operating Humidity 20% ~ 85%RH
Mechanical Dimensions (WxHxD) 215 x 88 x 352 mm (8.46" x 3.46" x 13.86")
Weight Approx. 4.0Kg (8.82 lb)
Rack Mount Kit 2ea
Language English, Korean, Spanish, French, German, Italian, Portuguese, Polish, Russian,Turkish, Japanese, Czech, Swedish, Danish, Chinese, Netherlands

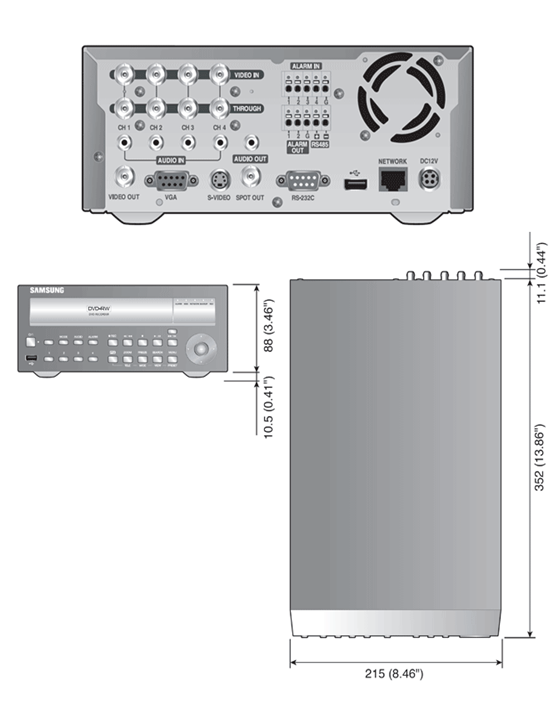

Samsung Samsung SRD-470DP Dimensions
