2.4Ghz RS485 data Tx & Rx kit

Product ID 15-2400RSK

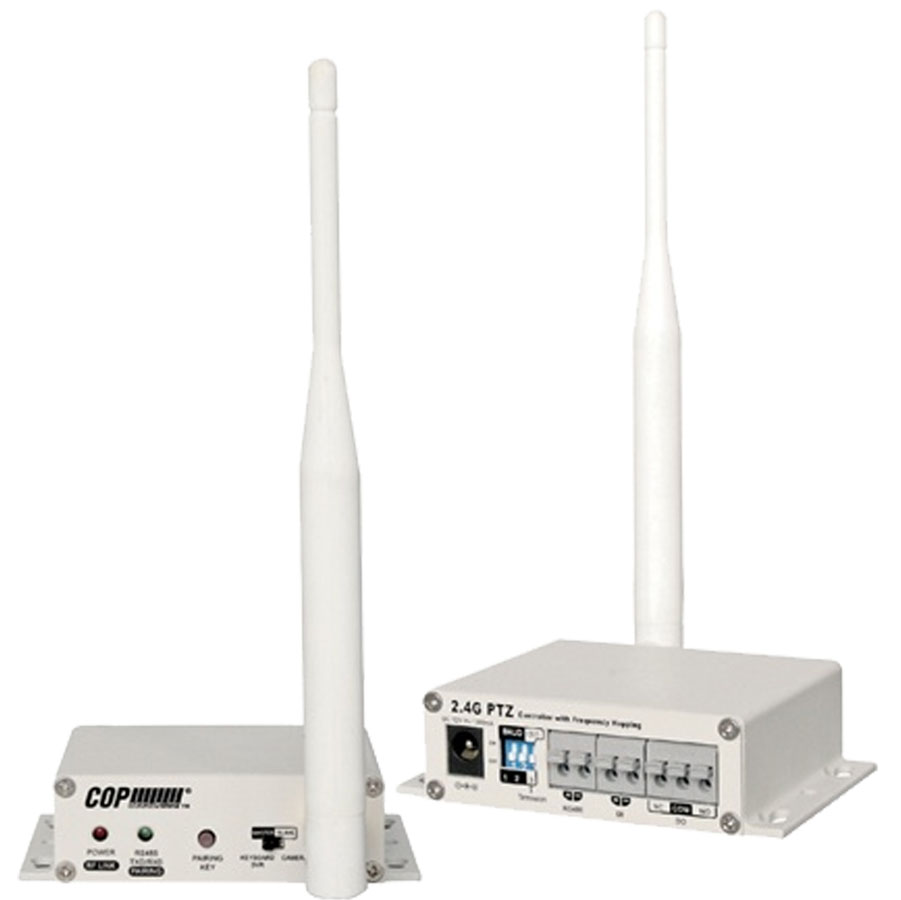

2.4Ghz RS485 data Tx & Rx kit

Price: £152.31 (£182.77 Inc. VAT)

+

-

« Previous | Next »

RS485 data 2 way transmission
Does not transmit video
Range 200 metres
5db antenna SMA connector
10mw output
PSU included
Transmission Range: Up to 200m line of sight
Frequency Channels: 2402 ~ 2480MHz, 79-CH (CE/FCC)
Output Power: 10mW
RF TX Power: 100mW Average
Minimum RX sensitvity: -86dBm
RF Impedance: 50ohm
RS485 2-wire: RS485 Half Duplex/Data Baud Rate: 2400, 4800, 9600bps/Fixed format: Start bit, 1 stop bit, 8 data bits, No parity.
Dual Directional / Alarm I/O: -Alarm Input: TTL/CMOS Contact Rating: AC 125v/0.5A; DC24v/1A -Alarm Output: NC/COM/NO (Dry Contact)
Power Consumption: 60mA Max @ DC12v
Weight (without antenna): <124.8g (4.4Oz)
Operation Temperature: -10°C~+55°C
Storage Temperature: -30°C~+85°C
Dimensions (exlcuding connectors and antenna): 92x75x25mm
