5.8Ghz video & audio receiver with alarm

Product ID 15-5800VR

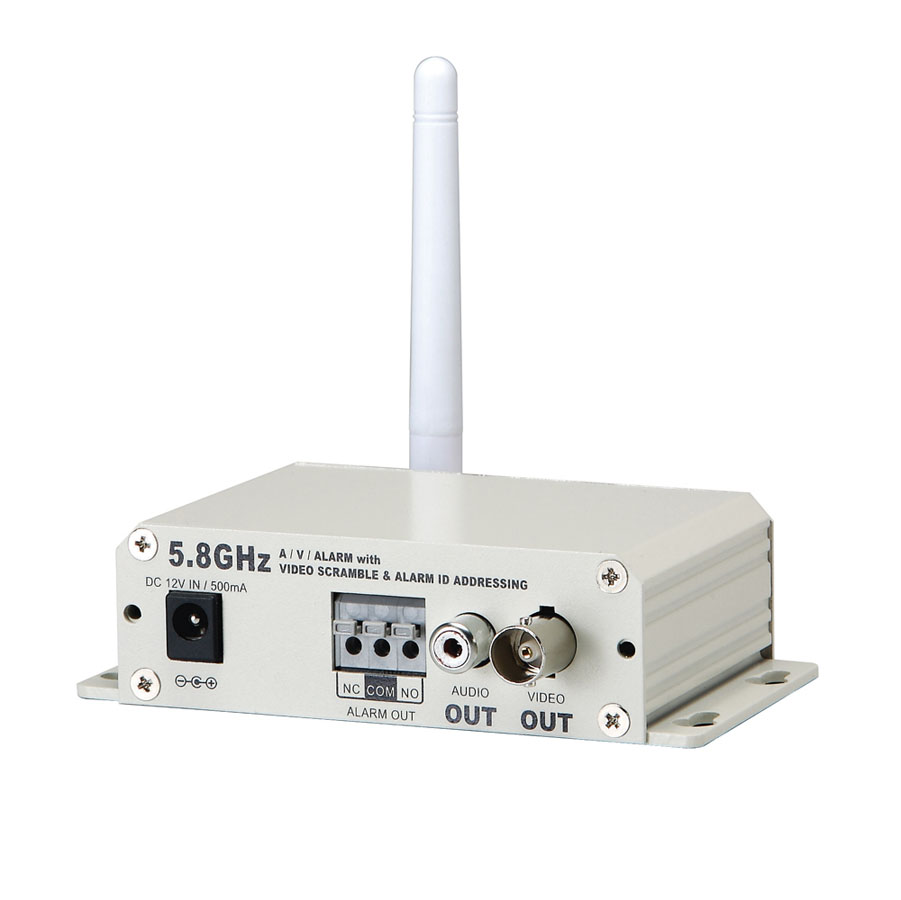

5.8Ghz video & audio receiver with alarm

Price: £67.69 (£81.23 Inc. VAT)

« Previous | Next »

Alarm receiver with buzzer
3db antenna SMA connector
Reduced interference from Wi-Fi
Video scramble
PSU included
Channel Frequency: CH1-5740 MHz / CH2-5752 MHz / CH3-5771 MHz / CH4-5790 MHz CH5-5809 MHz / CH6-5828 MHz / CH7-5847 MHz / CH8-5860 MHz
RF Impedance: 50ohm
5.8G bias-tee: 3.3V/25mA
Min RX Sensitivity: -84dBm
Input Voltage: 12v DC 500mA
Power Consumption: 280mA
Video Output: 1.0 Vp-p Composite @ 75W
Audio Output: 2.0 Vp-p Typical, 3.0 Vp-p Max. @ 600W
Alarm Output: NC/NO/COM (Dry Contact) Contact Rating: AC 125V / 0.5A ; DC 24V / 1A
Dimensions: 85x30x160mm
