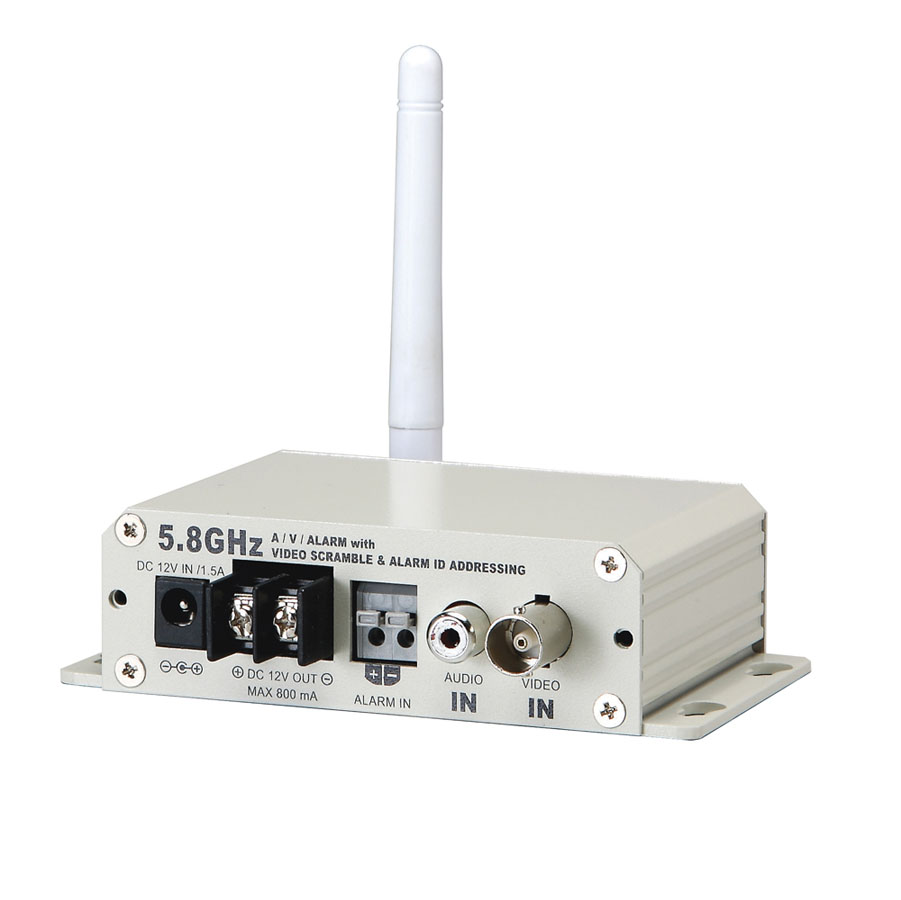

15-5800VT-A 5.8Ghz video & audio transmitter with alarm

• Range 100 metres
• 3db antenna SMA connector
• Reduced interference from Wi-Fi
• Video scramble
• PSU included
• Channel Frequency: CH1-5740 MHz / CH2-5752 MHz / CH3-5771 MHz / CH4-5790 MHz CH5-5809 MHz / CH6-5828 MHz / CH7-5847 MHz / CH8-5860 MHz
• Transmission Range: 100m with 3db Antenna (line of sight)
• RF Impedance: 50ohm
• Input Voltage: 12v DC 1500mA
• Power Consumption: 230mA Typical, Start-up current 500mA
• DC Output: 12v DC 750mA
• Video Input: 1.0 Vp-p Composite @ 75W
• Audio Input: 2.0 Vp-p Typical, 3.0 Vp-p Max. @ 600W
• Alarm Input: TTL/CMOS (Level Detection)
• Dimensions: 85x30x160mm
• 3 Year Warranty

Model Number: 15-5800VT-A
Channel Frequency: CH1-5740 MHz / CH2-5752 MHz / CH3-5771 MHz / CH4-5790 MHz CH5-5809 MHz / CH6-5828 MHz / CH7-5847 MHz / CH8-5860 MHz
Transmission Range: 100m with 3db Antenna (line of sight)
RF Impedance: 50ohm
Input Voltage: 12v DC 1500mA
Power Consumption: 230mA Typical, Start-up current 500mA
DC Output: 12v DC 750mA
Video Input: 1.0 Vp-p Composite @ 75W
Audio Input: 2.0 Vp-p Typical, 3.0 Vp-p Max. @ 600W
Alarm Input: TTL/CMOS (Level Detection)
Dimensions: 85x30x160mm
