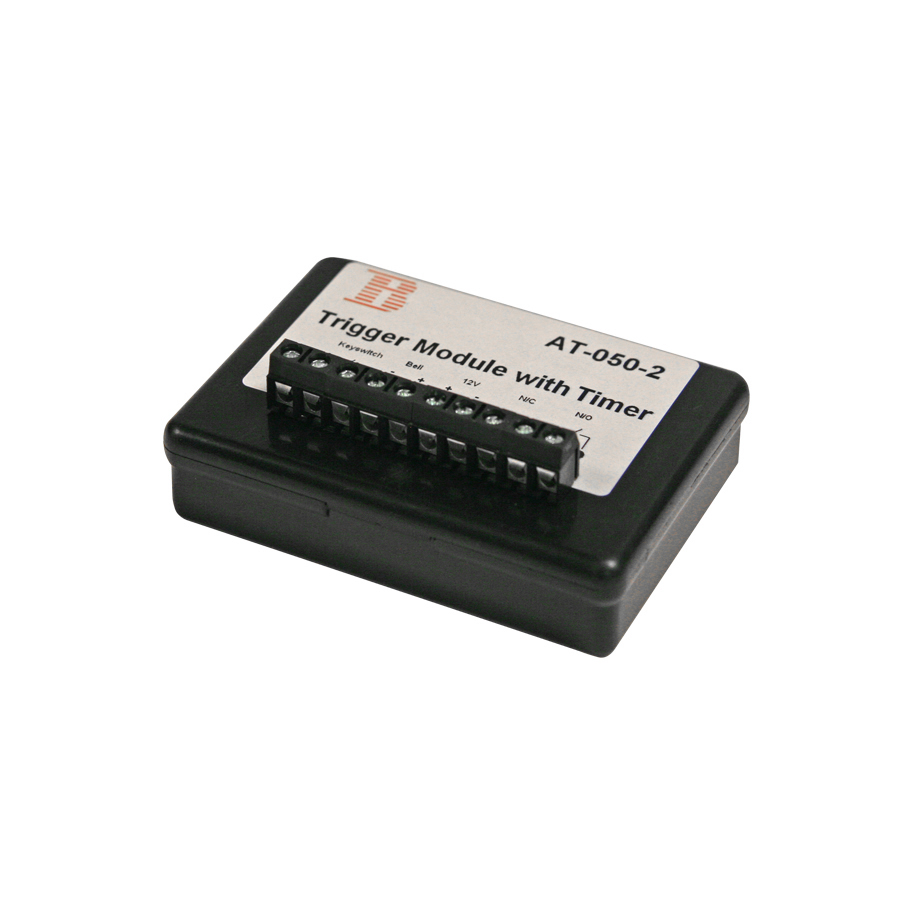

New Trigger Module

AT-050-2

• Versatile unit with basic control panel functions
• 12V operation
• low quiescent current less than 1mA
• Normally open loops
• Normally closed loops
• Terminals for key switch
• Re-settable fused sounder output
• Factory preset on-timer - set at 17 mins
• Protected from reverse polarity connection
• Size: 15 x 69mm
• 1 Year Warranty

• Model Number: AT-050-2
• Operating Temperature: -10°C~+65°
• Power Requirements: 10V to 15V DC Quiescent current nominal at 15V and 23° = 25uA Quiescent current nominal at 15V and 65° = 500uA
• Normally Open Loop: Less than 200 Ohms - guaranteed closed Greater than 3k Ohms - guaranteed open
• Normal Closed Loop: Greater than 3k Ohms - guaranteed closed Less than 200 Ohms - guaranteed open
• Output Switching: 1.5 Amps at 23° and 1 Amp at 65°
• On Timer After Trigger: 8 to 4096 seconds, set at factory - tolerance = +/- 20%
