Cable CAT5e HD Black Exterior 200m

Product ID CAB410

Cable CAT5e HD Black Exterior 200m

Price: £129.99 (£155.99 Inc. VAT)

+

-

« Previous | Next »

CAT5e Pro HD External for high speed transfers up to 1000MBs

Designed to support 1000Mbps
Solid copper cores for better connections
Marked every 1m
Tougher outer sheath
Less crosstalk than standard CAT5

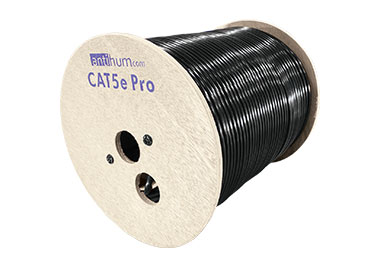

Supplied on wooden drums
200m Black
Suitable for outdoor use
1 Year Warranty

Tougher outer sheath stabilised for outdoor use and waterproof for ducts.

CAT5e cable has become increasingly popular for CCTV installations. It is easy to install and produces excellent results with clear video signals over considerable distances.
This CAT5e-CCTV cable has been jointly developed by ourselves and a major cable manufacturer to provide superb results in video signal transmission. Featuring quality copper cores, it can often outperform standard computer CAT5e producing a better picture quality over longer distances.
To make the cable suitable for most installations, it is available with either a black or white outer sheath so it looks right on either white or dark skirting boards or building fascias.
The cores are colour coded in a meaningful and engineer-friendly colour code as below:
Pair 1 - Brown & White
Pair 2 - Green & White
Pair 3 - Blue & White
Pair 4 - Yellow & White
Whereas co-ax cables are classed as an "unbalanced" mode of video transmission, Cat5 twisted pair is know as a balanced mode. In this balanced mode, the two cores carrying the video signal are balanced to a particular reference point and the cable twists enable a uniformed rejection of interference, effectively cancelling it out. To produce a balanced signal, equipment known as BALUNs are used, standing for BALanced to UN balanced.
The CAT5e cable can be used for short distances without baluns but they do obviously improve the cable's performance resulting in a better picture quality.
Low Density Polyethylene (LDPE) sleeve means it features a heavy duty, damp proof membrane.
Solid Copper Cores for 38% longer cable runs than CCA (Copper Coated Aluminium) as copper is a superior conductor of signals.
Antihum cable is supplied on wooden reels (not cardboard) so they don’t fall apart on the back of your van!
The cable is marked every 1m so you know how much you have remaining!
Cable is supplied in the following:
CAB410 (200m Exterior Black)
CAB415 (200m Exterior White)

Spec

Sheath Colour Black
Outer Sheath Plastic
Resistance 9.5/Core
Data Speed 1000MBs
Cable Length 200 Mtr Roll
