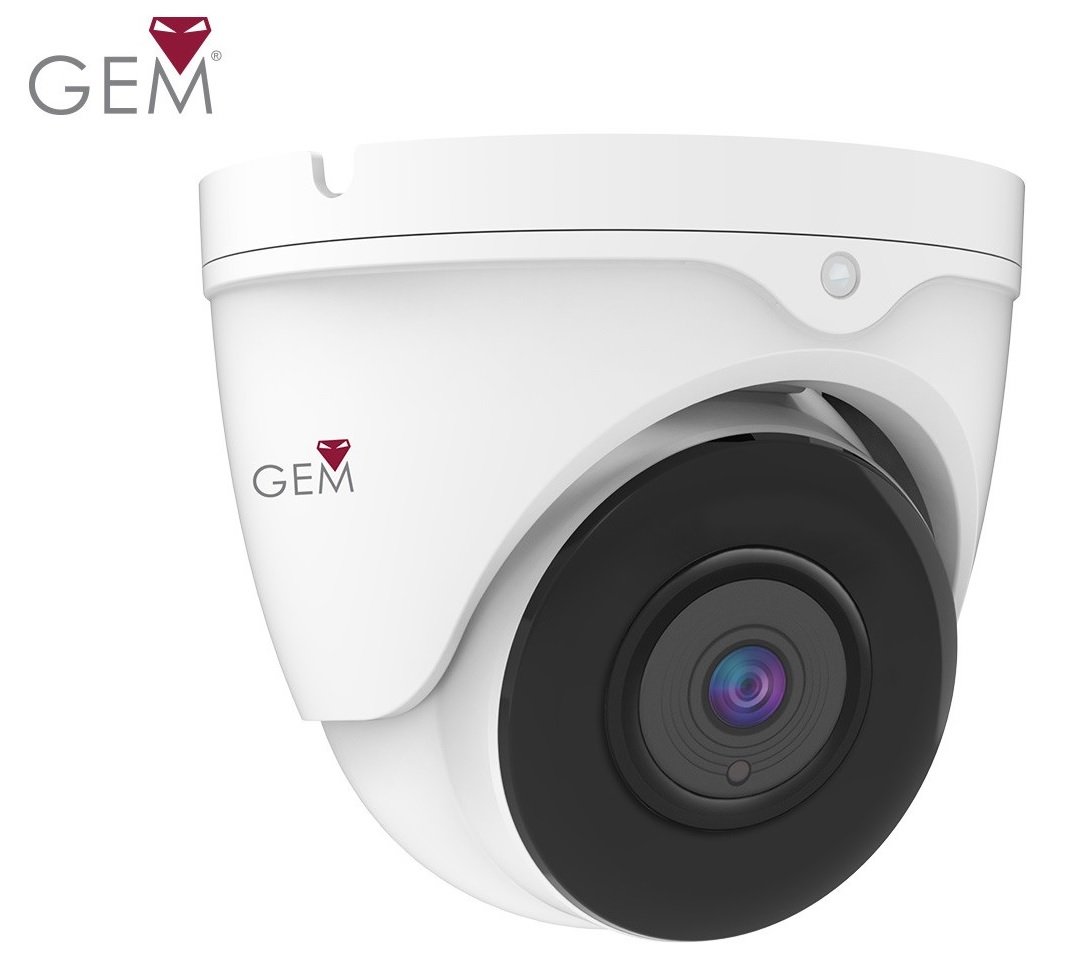

This mid sized eyeball is a great style when you're looking for a CCTV camera that's fairly low-key. It measures just 100mm in diameter. The design is externally rated for outdoor use and the white looks great in an office, shop or on a white UPVC fascia.
A great advantage over other CCTV cameras is the wide choice of mounting bases. Choose from an extra deep base for easy cabling connections, the wall mount "top hat" style for a near wall mount, the swan neck for a classic look or the ceiling bracket for porches, shops, warehouses etc.
A wide angle 3.6mm lens gives general all round surveillance and the single Hi-Power IR LED has a superb range of 30m for great night time viewing!
As with all our latest HD range the camera has a 4-in-1 output – TVI, CVI, AHD & CVBS so it works with most DVRs on the market. This can be quickly setup on the dip switch lead when connecting and powering the camera up.
A low current consumption means the camera is easy to power with a local 500mA plug-in power supply such as POW151 or by using a run of RG59+2 shotgun cable like CAB502.
|
CAM1100W |
|
Resolution |
2MP |
|
Lens Type |
3.6mm Fixed Lens |
|
Image Output |
TVI / CVI / AHD / CVBS |
|
Day/Night Function |
Mechanical (True Day-Night) |
|
IR LEDs |
2x High Power |
|
IR Range |
Up to 30m |
|
Input Voltage |
12V DC |
|
Current Consumption |
130mA / 300mA IR on |
|
Video Connection |
BNC Socket |
|
Power Connection |
2.1mm DC Socket |
|
Protocol |
UTC (Coaxitron) |
|
IP Rating |
IP66 For External Use |
|
Build |
Metal |
|
Dimensions |
Ø100mm x (H) 90mm |
