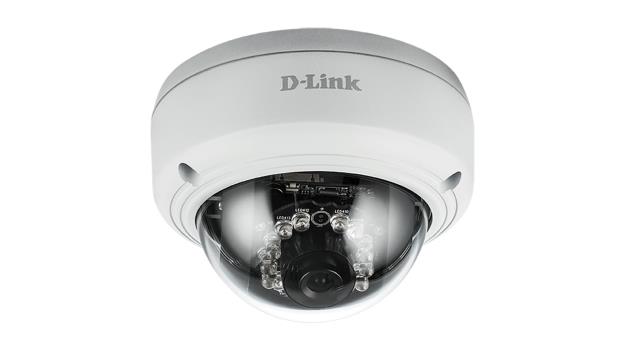

The Vigilance Full HD PoE Dome Camera is a professional, full featured HD Camera, that is designed to be easy to install and integrated into a highly affordable video surveillance solution. Featuring a high resolution 3-Megapixel sensor, the camera supports resolution up to 2048 x 1536. Incorporating IR LED illuminator, WDR and 3DNR support, you get up to 10 metres night vision and clear detailed images in contrasting and low light environments.
Specifications
Functions & Features
Features
Full HD 1080p, 30 fps
3-Megapixel sensor, supporting resolution up to 2048 x 1536
Day and night with ICR filter and IR LED
10m night vision
Wide Dynamic Range
3D Noise Reduction
Supports Power over Ethernet
Technical Specifications
Hardware Features
Indoor/Outdoor
Indoor only
Image Sensor
1/3” 3-Megapixel progressive scan CMOS
Maximum Video Resolution (Ratio)
1920 x 1080 (16:9)
2048 x 1536 (other)
Maximum Frame Rate
Up to 30 fps
Lens
Fixed 2.8 mm, F1.8
Minimum Illumination (Lux)
1.0 lux/F2.0 (colour)
0.5 lux/F2.0 (B/W)
0 Lux (B&W, IR-LED on)
Infrared-Cut Removable Filter
Yes
IR Built-in
10 m
Wide Dynamic Range (WDR)
Yes
3D Noise Reduction
Yes
Angle Of View (H/V/D)
96° / 54° / 108°
Gimbal
2-Axis
Vertical: 60° / Horizontal 350°
Privacy Masks
3 zones
Wired Connection
Fast Ethernet (10BASE-T, 100BASE-TX)
Power over Ethernet (802.3af PoE)
Software Features
Video Format
H.264
MJPEG
Multi-Stream
Yes
ONVIF
Yes
Digital Zoom
10x
Motion Detection
Yes
Event Recording
Yes
E-Mail Notification
Yes
Recording to NAS
Yes
IPv6 Support
Yes
Others
Dimensions
Φ110 × 78mm
Operating Temperature
-30 ~ 50°C
Operating Humidity
20 ~ 80% RH (non-condensing)
Optional Power Input
DC power adapter (Input: 100-240VAC, 50/60Hz; Output: 12VDC, 1.5A)
Safety
CE (Class A)
CE LVD
FCC (Class A)
C-Tick
