Key Features
Allows the camera to see objects in contrasting light conditions
3 axis mechanism gives horizontal, vertical and rotation adjustments
Wall or ceiling mountable

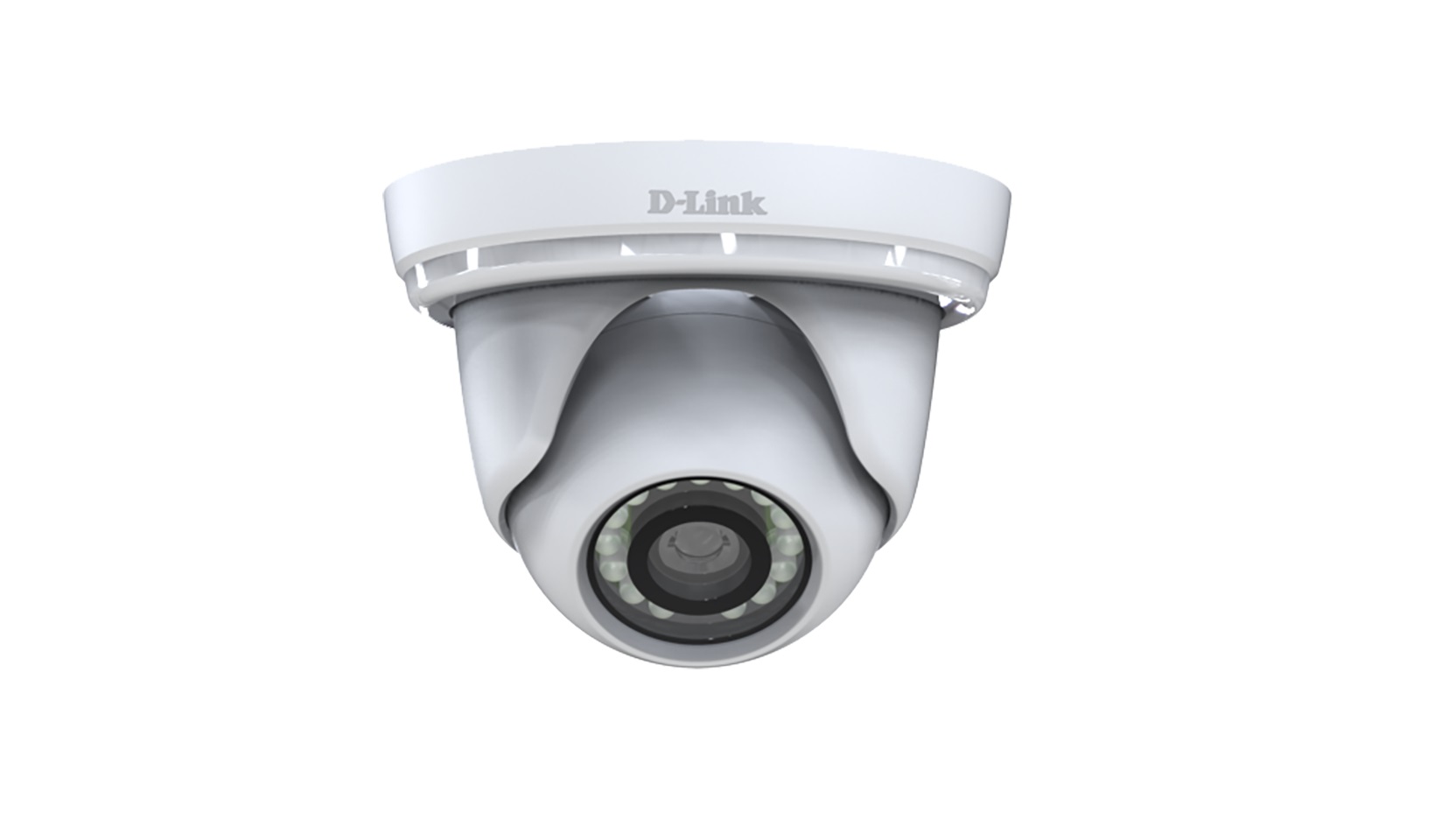

The Vigilance Full HD Outdoor PoE Mini Dome Camera is a professional, full featured full HD Camera that is designed to be easy to install and integrated into a highly affordable video surveillance solution. Incorporating IR LED illuminator, WDR and 3DNR support, you get up to 30 metres night vision and clear detailed images in contrasting and low light environments. The camera’s IP-66 (weather-proof) housing is specifically designed to withstand all adverse weather conditions.
Wide Dynamic Range
•Allows the camera to see objects in contrasting light conditions.
•Ideal for entrances or windowed foyers where it is necessary to monitor
both indoor and outdoor areas, or shadowed areas as well as brightly
lit areas.
3-Axis Gimbal
• 3 axis mechanism gives horizontal, vertical and rotation adjustments.
• This provide greater flexibility to achieve the view you want, whether the
camera is mounted on the ceiling or wall.
Specifications
Functions & Features
Features
Full HD 1080p, 30 fps
Day and night with ICR filter and IR LED
30m night vision
Wide Dynamic Range
3D Noise Reduction
Supports Power over Ethernet
IP66 outdoor certified
Technical Specifications
Hardware Features
Indoor/Outdoor
Indoor and outdoor IP66
Image Sensor
1/3” 2-Megapixel progressive scan CMOS
Maximum Video Resolution (Ratio)
1920 x 1080 (16:9)
1400 x 1080 (other)
Maximum Frame Rate
Up to 30 fps
Lens
Fixed 2.8 mm, F1.8
Minimum Illumination (Lux)
1.0 lux/F2.0 (colour)
0.5 lux/F2.0 (B/W)
0 Lux (B&W, IR-LED on)
Infrared-Cut Removable Filter
Yes
IR Built-in
30 m
Wide Dynamic Range (WDR)
Yes
3D Noise Reduction
Yes
Angle Of View (H/V/D)
96° / 54° / 108°
Gimbal
3-Axis
Vertical: 60° / Horizontal 355° /Rotational 355°
Privacy Masks
3 zones
Wired Connection
Fast Ethernet (10BASE-T, 100BASE-TX)
Power over Ethernet (802.3af PoE)
Software Features
Video Format
H.264
MJPEG
Multi-Stream
Yes
ONVIF
Yes
Digital Zoom
10x
Motion Detection
Yes
Event Recording
Yes
E-Mail Notification
Yes
Recording to NAS
Yes
IPv6 Support
Yes
Others
Dimensions
Φ113 × 77.7mm
Operating Temperature
-30 ~ 50°C
Operating Humidity
20 ~ 80% RH (non-condensing)
Optional Power Input
DC power adapter (Input: 100-240VAC, 50/60Hz; Output: 12VDC, 1.5A)
Safety
CE (Class A)
CE LVD
FCC (Class A)
C-Tick
