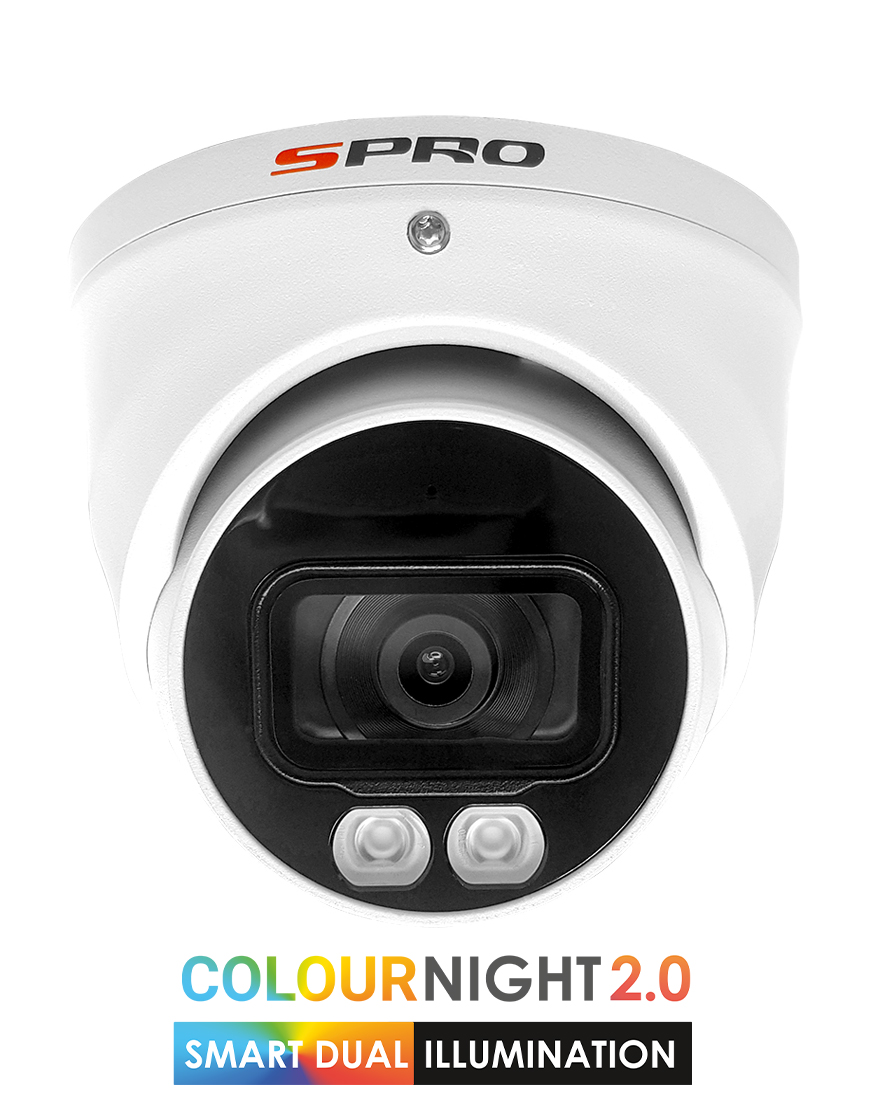

Specifications: |
|
|
Model Number |
DHD50/28LRW-4-M |
|
Image Sensor |
5MP CMOS |
|
Max. Resolution |
2880 (H) x 1620 (V) |
|
Pixel |
5 MB |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
PAL: 1/3 s–1/100000 s
NTSC: 1/4 s–1/100000 s |
|
Min. Illumination |
0.001 lux@F1.0 (Color, 30 IRE);
0.0001 lux@F1.0 (B/W, 30 IRE);
0 lux (Illuminator on) |
|
S/N Ratio |
>65dB |
|
Illumination Distance |
40 m (98.43 ft) (IR); 40 m (98.43 ft) (Warm light) |
|
Illuminator On/Off control |
Auto/Manual |
|
Illuminator Number |
1 (IR LED); 1(Warm light) |
|
Pan/Tilt/Rotation Range |
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360° |
|
Lens |
|
|
Lens Type |
Fixed-focal |
|
Lens Mount |
M12 |
|
Focal Lenght |
2.8mm; 3.6mm |
|
Max. Aperture |
F1.0 |
|
Field of View |
2.8mm:H:111° V:57° D:131°
3.6mm: H:92° V:47° D:104° |
|
Iris Control |
Fixed |
|
Close Focus Distance |
2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 2.2 m (7.22 ft) |
|
DORI Distance |
Detect: 66.0m
Observe: 26.4m
Recognize: 13.2m
Identify: 6.6m
|
|
Video |
|
|
Frame Rate |
CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps;
AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps;
TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps;
CVBS: PAL: 960H; NTSC: 960H |
|
Resolution |
5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
|
Day/Night |
Auto(ICR)/Colour/B/W |
|
BLC |
BLC/HLC/WDR/HLC-Pro |
|
WDR |
120dB |
|
White Balance |
Auto; Area White Balance |
|
Gain Control |
Auto; Manual |
|
Noise Reduction |
3D NR |
|
Defog |
Electronic defog |
|
Digital Zoom |
4x |
|
Mirror |
Yes |
|
Privacy Masking |
Off/On (8 areas, rectangle) |
|
Illumination Mode |
Smart IR&WL; WL Mode; IR Mode |
|
Certification |
|
|
Certifications |
CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013,
EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014,
EN62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14) |
|
Port |
|
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|
Video Intput |
One channel built-in MIC |
|
Power |
|
|
Power Supply |
12 VDC ± 30% |
|
Power consumption |
Max 5.7 W (12 VDC, LED on) |
|
Environment |
|
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to 140 °F) |
|
Operating Humidity |
< 95% (RH), non-condensing |
|
Storage Temperature |
–40 °C to +60 °C (-40 °F to 140 °F) |
|
Protection |
IP67 |
|
Structure |
|
|
Casing |
Metal |
|
Product Dimensions |
Φ106.0 mm × 93.6 mm (Φ4.17" × 3.69") |
|
Net Weight |
0.49 kg (1.08lb) |
|
Gross Weight |
0.66 kg (1.46 lb) |
|
Installation |
Wall mount; ceilling mount; vertical pole mount |
