Specifications: |
|
|
Model Number |
DHIPPTZ20/25XR-AI |
|
Image Sensor |
1/2.8" CMOS |
|
Effective Pixels |
1920(H) x 1080(V), 2Megapixels |
|
ROM |
4 GB |
|
RAM |
1 GB |
|
Electronic Shutter Speed |
1/3 ~ 1/30,000s |
|
Scanning System |
Progressive |
|
Min. Illumination |
Color: 0.005 Lux@F1.6
B/W: 0.0005 Lux@F1.6
0 Lux (IR light on) |
|
Illumination Distance |
150 m (492.13 ft) |
|
Illuminator On/Off Control |
Zoom Prio/ Manual/ Off |
|
Illuminator Number |
4 |
|
Lens |
|
|
Focal Length |
5.4 mm – 135 mm |
|
Max Aperture |
F1.6– F3.5 |
|
Field of View |
H: 58.7°–3.1°; V: 33.2°–1.7°; D: 67.3°–3.9° |
|
Optical Zoom |
25x |
|
Focus Control |
Auto/ Semi-Auto/ Manual |
|
Close Focus Distance |
0.1 m–1.5 m (0.33 ft–4.92 ft) |
|
Iris Control |
Auto/ Manual |
|
DORI Distance |
Detect: 1655m-Observe: 657m-Recognize: 331m-Identify: 166m |
|
PTZ |
|
|
Pan/Tilt/Rotation |
Pan: 0°–360°; Tilt: -15°–+90° |
|
Manual Control Speed |
Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s |
|
Preset Speed |
Pan: 400°/s; Tilt: 300°/s Speed Adjustment |
|
Presets |
300 |
|
Tour |
8 (up to 32 presets per tour) |
|
Pattern |
5 |
|
Scan |
5 |
|
Power-off Memory |
Support |
|
Idle Motion |
Preset/ Tour/ Pattern/ Scanning |
|
Protocol |
DH-SD, Pelco-P/D (auto recognition) |
|
General Intelligence |
|
|
Event Trigger |
Motion detection, video tampering, scene changing, Network
disconnection, IP address conflict, illegal access, and storage anomaly. |
|
IVS |
Object Abandoned/ Missing |
|
Artifical Intelligence |
|
|
Smart Capture |
Support human, motor vehicle and non-motor vehicle image capture. |
|
Perimeter Protection |
Tripwire and intrusion. Support alarm triggering by target types (human and vehicle).
Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
|
SMD PLUS |
Support |
|
Auto Tracking |
Support |
|
Face Detection |
Support |
|
Video |
|
|
Compression |
H.265/ H.265+/ H.264+/ H.264/ MJPEG (Sub Stream) |
|
Streaming Capability |
3 streams |
|
Resolution |
1080P (1920×1080)/ 720P (1280×720) / D1 (704×576/ 704×480)/
CIF(352×288/352×240) |
|
Frame Rate - Main Stream |
1080P/ 1.3 M/ 720P (1–50/60 fps) |
|
Frame Rate - Sub Stream 1 |
D1/CIF (1–25/30 fps) |
|
Frame Rate - Sub Stream 2 |
1080P/1.3M/720P/D1/CIF (1–25/30 fps) |
|
Bit Rate Control |
Variable/ constant |
|
Bit Rate |
H.265/H.264: 3 kbps–20480 kbps |
|
Day/Night |
Auto (ICR)/ Color/ B/W |
|
BLC |
Support |
|
WDR |
120 dB |
|
HLC |
Support |
|
White Balance |
Auto/ Indoor/ Outdoor/ Tracking/ Manual/ Sodium lamp/ Natural light/Street lamp |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
2D/3D |
|
Motion Detection |
Support |
|
Region of Interest (RoI) |
Support |
|
Image Stabilization |
Electronic |
|
Defog |
Support |
|
Digital Zoom |
16x |
|
Flip |
180° |
|
Privacy Masking |
Up to 24 areas, and up to 8 areas in the same view |
|
Audio |
|
|
Compression |
G.711A; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723 |
|
Network |
|
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP;
RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMPv1/v2c/v3 (MIB-2); RTCP; RTMP |
|
Interoperability |
ONVIF (Profile S/Profile G); CGI |
|
Streaming Method |
Unicast/Multicast |
|
User/Host |
20 (total bandwidth 64M) |
|
Storage |
FTP; Micro SD card (256G); NAS |
|
Browser |
IE7 and later versions / Chrome 42 and earlier versionsFirefox 52 and earlier versions / Safari |
|
Management Software |
SPRO CSS |
|
Smart Phone |
iPhone, iPad & Android |
|
Certification |
|
|
Certification |
CE: EN55032/EN55024/EN50130-4, FCC: Part15 subpartB,ANSI C63.4- 2014
UL:UL60950-1+CAN/CSA C22.2,No.60950-1 |
|
Port |
|
|
Audio In |
1 (LINE IN; bare wire) |
|
Audio Out |
1 (LINE OUT; bare wire) |
|
Alarm I/O |
2/1 |
|
General |
|
|
Power Supply |

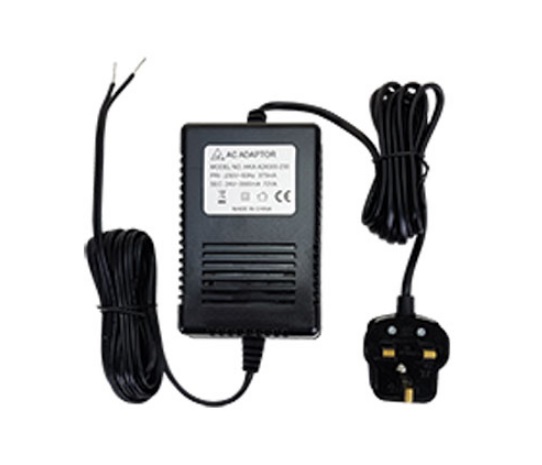

AC24V/ 3A±25%, POE+ |
|
Power Consumption |
8W, 20W (IR light on) |
|
Operating Temperature |
–40°C to +70°C (–40°F to +158°F) |
|
Operating Humidity |
?95% RH |
|
Protection |
IP67; IK10; TVS 6000V lightning protection; surge protection |
|
Casing |
Metal |
|
Dimensions |
?190 mm×332 mm |
|
Net Weight |
4.7Kg |
|
Net Weight |
8Kg |
