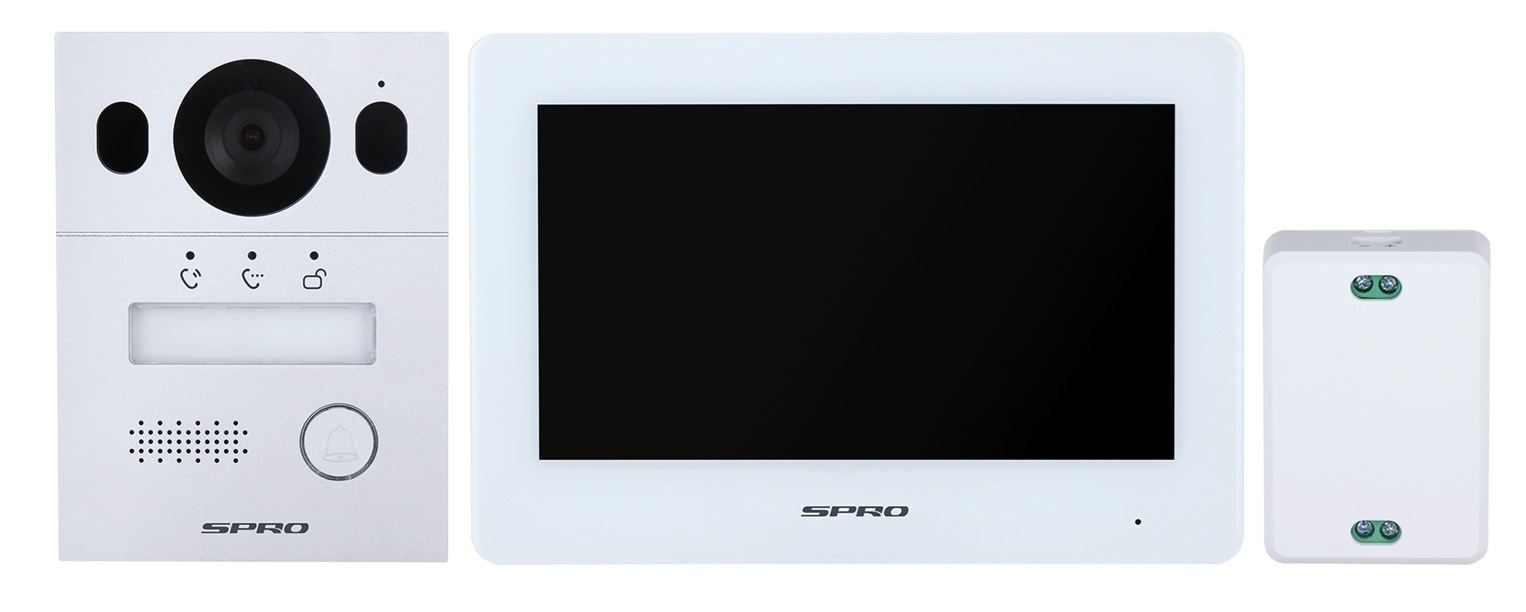

The SPRO DHVDPKIT04-S is a robust, high-performance 2-wire intercom kit designed to deliver advanced entry management and communication for residential complexes, commercial buildings, and secure facilities. Combining a high-resolution 2MP CMOS HDR camera with intuitive touch-screen operation and seamless remote access, this kit ensures security and convenience in a compact, weather-resistant design.
Key Features:
• 2MP HDR Camera with DWDR: Capture images in varying lighting conditions with the 2-megapixel CMOS HDR sensor and Digital Wide Dynamic Range (DWDR) technology — ideal for both day and night use.
• 7” TFT Touch Screen Monitor: A sleek, full-colour interface offers easy navigation and real-time video display, enabling users to see, speak to, and grant access to visitors with a simple tap.
• 2-Wire Installation: Simplified wiring for easier upgrades and retrofits without the need for extensive cabling – perfect for new builds and refurbishments alike.
• Two-Way Audio with Auto IR Illumination: Crystal-clear voice communication and automatic infrared lighting ensure effective interaction and visibility, even in complete darkness.
• Remote Unlock & Lock Control: Grant access securely from the indoor monitor or remotely via mobile device (with supported integration), giving users complete control wherever they are.
• Anti-Tamper Alarm: Built-in security features alert users to tampering attempts, enhancing the integrity of your premises.
• Durable, Surface-Mount Design: Built to withstand harsh environments with IP65 weatherproofing and IK07 vandal resistance, ensuring long-term reliability and protection.
• Nameplate Functionality: Clearly identify units or occupants – ideal for multi-dwelling applications or shared access points.
Ideal for:
• Apartment complexes
• Office buildings
• Gated communities
• Small business premises
The SPRO DHVDPKIT04-S offers a perfect balance of security, user-friendliness, and installation flexibility. Whether for retrofitting existing systems or integrating into new builds, this 2-wire intercom kit is engineered for professional-grade performance with minimal installation complexity.
|
Specifications: |
|
|
Model Number |
DHVDPKIT04-S |
|
Intercom |
|
|
Main Processor |
Embedded Processor |
|
Button Type |
Mechanical |
|
Basic |
|
|
Camera |
1/2.8" 2 MP CMOS HDR Camera |
|
Field of View |
H: 110°; V: 60° |
|
WDR |
DWDR |
|
Noise Reduction |
3D NR |
|
Video Resolution |
960 (H) × 576 (V) |
|
Video Frame Rate |
25fps |
|
Light Compensation |
Auto IR |
|
Day/Night |
Auto(ICR) / Colour / B/W; Colour/ B/W |
|
Audio Input |
Built-in Microphone |
|
Audio Output |
Built-in speaker |
|
Audio Mode |
Two-way audio (half-duplex) |
|
Function |
|
|
Unlock Mode |
Remote unlock |
|
Leave Videos |
Yes (SD card is needed in the monitor) |
|
Performance |
|
|
Casing Material |
Aluminium Alloy |
|
Port |
|
|
RS-485 |
1 |
|
Alarm Output |
1 |
|
Power Output |
1 x 12 VDC output, 200 mA |
|
Exit Button |
1 |
|
Door Status Detection |
1 |
|
Lock Control |
1 |
|
Alarm |
|
|
Tamper Alarm |
Yes |
|
General |
|
|
Appearance Colour |
Silver |
|
Power Supply |
2-wired controller |
|
Installation |
Flush mount; Surface mount |
|
Certifications |
CE; FCC |
|
Product Dimensions |
130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12") |
|
Protection |
IP65; IK07 |
|
Operating Temperature |
–40 °C to +60°C (–40 °F to +140 °F) |
|
Operating Humidity |
10%–95% (RH), non-condensing |
|
Operating Altitude |
0 m–3000 m (0 ft – 9842.52 ft) |
|
Power Consumption |
≤ 1.5 W (standby), ≤ 10 W(working) |
|
Gross Weight |
0.502 kg (1.11 lb) |
|
Storage Temperature |
–40 °C to +70°C (–40 °F to +158 °F) |
|
Storage Humidity |
95% (RH), non-condensing |
|
Monitor |
|
|
System |
|
|
Main Processor |
Embedded Processor |
|
Operating System |
Mechanical |
|
Network Protocol |
IPv4; UDP; DNS; TCP |
|
Basic |
|
|
Screen Type |
Capacitive Touchscreen |
|
Display Screen |
7" TFT |
|
Screen Resolution |
1024 (H) x 600 (V) |
|
Audio Compression |
G.711a; G.711u; PCM |
|
Audio Input |
Built-in Microphone |
|
Audio Output |
Built-in speaker |
|
Audio Mode |
Two-way audio VTO (half-duplex);
Two-way audio with app (full-duplex) |
|
Audio Enhancement |
Echo suppression/digital noise reduction |
|
Audio Bit Rate |
16 kHz; 16 bit |
|
Function |
|
|
Leave Videos |
Yes (SD card needed) |
|
DND Mode |
Do not disturb period can be set |
|
Number of Extensions |
5 |
|
Wi-Fi |
Yes |
|
Wireless Standard |
IEEE802.11b/802.11g/802.11n |
|
Wireless Frequency Range |
2.4 GHz |
|
Max Transmission Power |
≤20 dBm@2,400–2,483.5 MHz |
|
Storage |
Micro SD card (up to 64 GB) |
|
Port |
|
|
RS-485 |
1 |
|
Alarm Input |
6 |
|
Alarm Output |
1 |
|
Power Output |
1 (12V, 200mA) |
|
Door Bell |
Yes (use the alarm input port) |
|
Performance |
|
|
Casing Material |
PC + ABS |
|
General |
|
|
Appearance Colour |
White |
|
Power Supply |
2-wire controller |
|
Installation |
Surface Mount |
|
Certifications |
CE; FCC |
|
Product Dimensions |
130 mm × 189 mm × 23.9 mm (5.12" × 7.44" × 0.94") |
|
Operating Temperature |
–10 °C to +55°C (14 °F to +131 °F) |
|
Operating Humidity |
10%–95% (RH) |
|
Operating Altitude |
0 m–3000 m (0 ft – 4265.09 ft) |
|
Power Consumption |
≤ 2.5 W (standby), ≤ 10 W(working) |
|
Gross Weight |
0.633 kg (1.40 lb) |
|
Storage Temperature |
–40 °C to +70°C (–40 °F to +158 °F) |
|
Storage Humidity |
95% (RH), non-condensing |
|
2-Wire Controller |
|
|
Performance |
|
|
Casing Material |
PC + ABS |
|
General |
|
|
Appearance Colour |
White |
|
Power Supply |
48 VDC |
|
Certifications |
CE; FCC |
|
Accessory |
Included: Line termination terminal |
|
Product Dimensions |
65.2 mm × 46.2 mm × 23.2 mm (2.57" × 1.82" × 0.91") |
|
Operating Temperature |
–10 °C to +55°C (14 °F to +131 °F) |
|
Operating Humidity |
10%–95% (RH) |
|
Operating Altitude |
0 m–3000 m (0 ft – 4265.09 ft) |
|
Power Consumption |
3.5 W |
|
Gross Weight |
0.13 kg (0.29 lb) |
