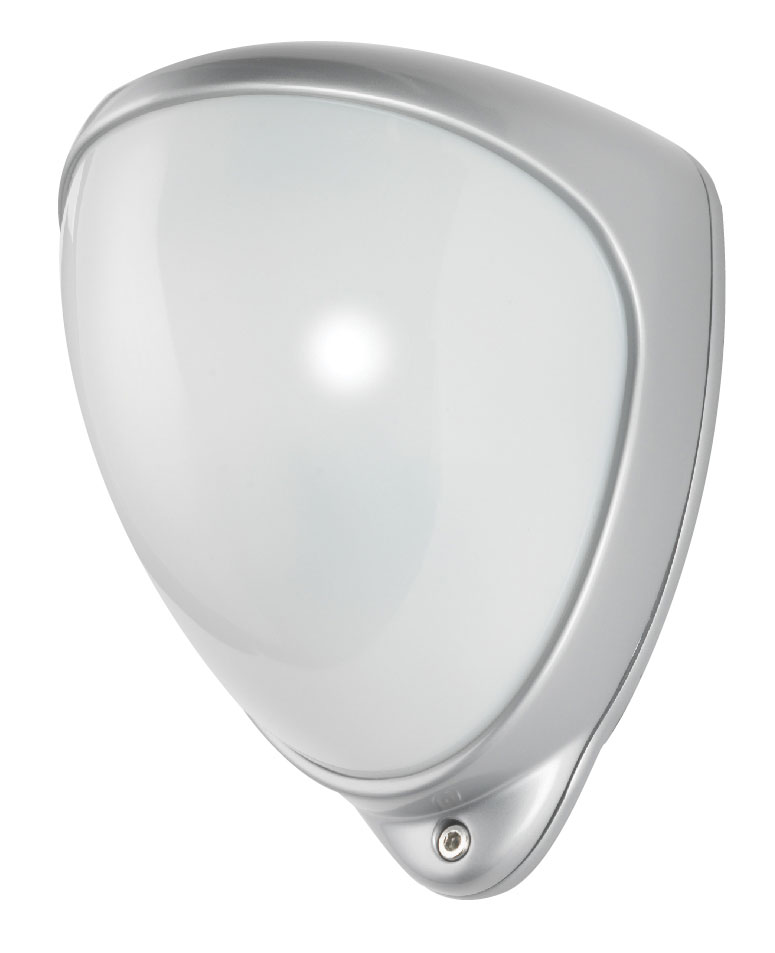

A remarkable, robust external detector with an optimum mounting height of 3m. Equipped with a pan and tilt dual infrared scanner module with two volt-free and two negative switched outputs. Can be used to control cameras and also interfaces with GJD's lighting control systems.
| TECHNICAL SPECIFICATION: DTECT2 |
| Range |
Programmable up to 35m |
| Coverage |
10°-70° detection angle, 30m x 30m coverage max |
| Adjustment |
180° pan + 90° tilt |
| Mounting Height |
Variable – optimum 3m |
| Fresnel Lens |
28 zones for each Pyro pair, which can be masked with the curtain sliders and special masking tape (supplied) |
| Outputs |
2 Volt free and 2 neg. switched plus one common tamper (front and rear switches) |
| Power input |
9 to 15 VDC |
| Current |
9mA (12V nominal) |
| Pulse count |
1 - 3 |
| Operating Temperature |
-20°C to + 55°C. Conformally coated electronics for increased stability |
| Housing |
High impact zinc alloy |
| Protection Rating |
IP55 |
