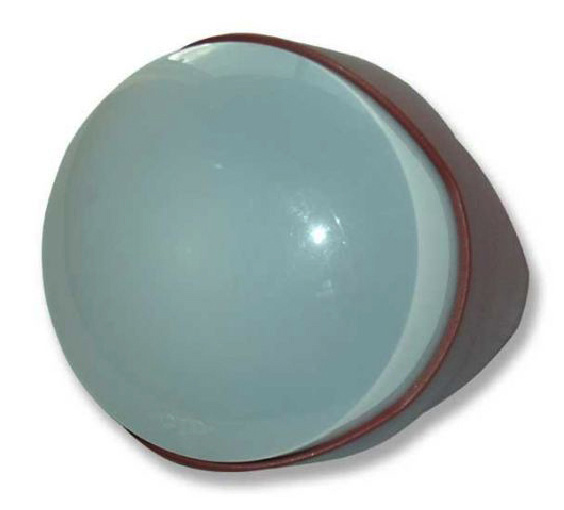

The Elite is a passive infrared detector that simultaneously or individually controls cameras, VCR’s, DVR’s and all low voltage switching requirements.
The Elite offers a high level of adaptability. There are seven different modes of operation, giving various permutations of normally open and normally closed arrangements for the two pairs of volt-free relays, plus a selection of timing and functional options for the relay changeover contacts. Other programmable parameters include the duration of timed changeover, a pulse count feature and a choice of detection ranges from 10 to 35 metres.
| TECHNICAL SPECIFICATION: Elite |
| Range |
Programmable up to 35m |
| Coverage |
90° detection angle, 35m x 30m coverage max. |
| Adjustment |
180° pan + 90° tilt |
| Mounting Height |
Variable up to 6m – optimum 3m |
| Fresnel Lens |
36 zone, which can be masked with special masking tape (supplied) |
| Outputs |
Output 1 Volt free 24VAC/DC @ 50mA selectable N/O or N/C.
Integral 80 Ohm series resistor.
Adjustable timer 0.4 to 60 secsOutput 2 Volt free 24VAC/DC @ 50mA selectable N/O or N/C.
Integral 80 Ohm series resistor.
Adjustable timer 2 to 60 secsOutput 3 ‘A’
Open collector negative switching.
Max 25mA.
Alarm period: 400ms
Output 4 ‘S’
Open collector negative switching.
Max 25mA.
Alarm period: detection + 60 secs.
Adjustable Dusk (2 Lux) to 24 hour |
| Power input |
9 to 15 VDC |
| Current |
10mA (12V nominal) |
| Pulse count |
1, 2, 3 & 4 |
| Operating Temperature |
-20°C to + 55°C. Conformally coated electronics for increased stability |
| Housing |
High Impact ABS Housing |
| Protection Rating |
IP55 |
