The new range of Active Edge IR beams brings together stylish design with unbeatable technology. Simple to install and set-up, our Dual Infrared beams are proven to deliver effective and precise detection solutions, for both outdoor and indoor applications – with achievable coverage up to 600m.
Available in a choice of either Twin or Quad beams, Active Edge infrared beams set exciting new standards, giving you the flexibility you need for every application

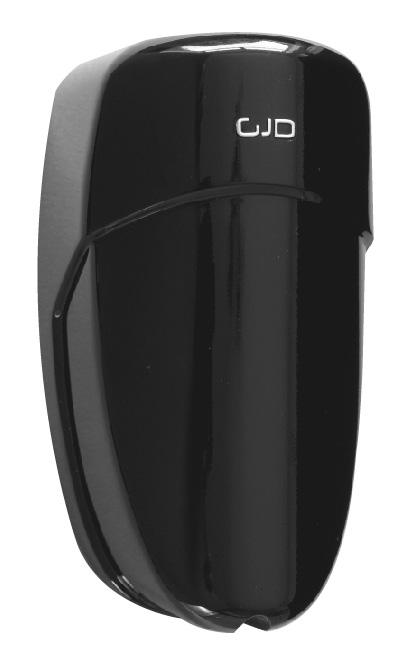

| TECHNICAL SPECIFICATION: GJD940 |
| Outdoor detection range |
60 metres |
| Indoor detection range |
180m |
| Beam characteristics |
Pulsed infrared double beams |
| Interruption period |
50~700 milliseconds (selectable) |
| Power input |
DC12~24V/AC 11~18v |
| Current consumption |
40mA max (GJD940)
65mA max (GJD960) |
| Alarm period |
2 seconds (+/-1) nominal |
| Alarm Output |
Form C relay (AC/DC 30v 0.5mA max) |
| Tamper switch |
N/C opens when the cover is removed |
| Operating temperature |
-25°C ~+55°C |
| Environment humidity |
95% max |
| Alignment angle |
+/-5° vertical, +/-90° vertical |
| Mounting |
Wall or pole |
| Weight |
659g (Both the transmitter and receiver) |
| Appearence |
PC resin (black) |
