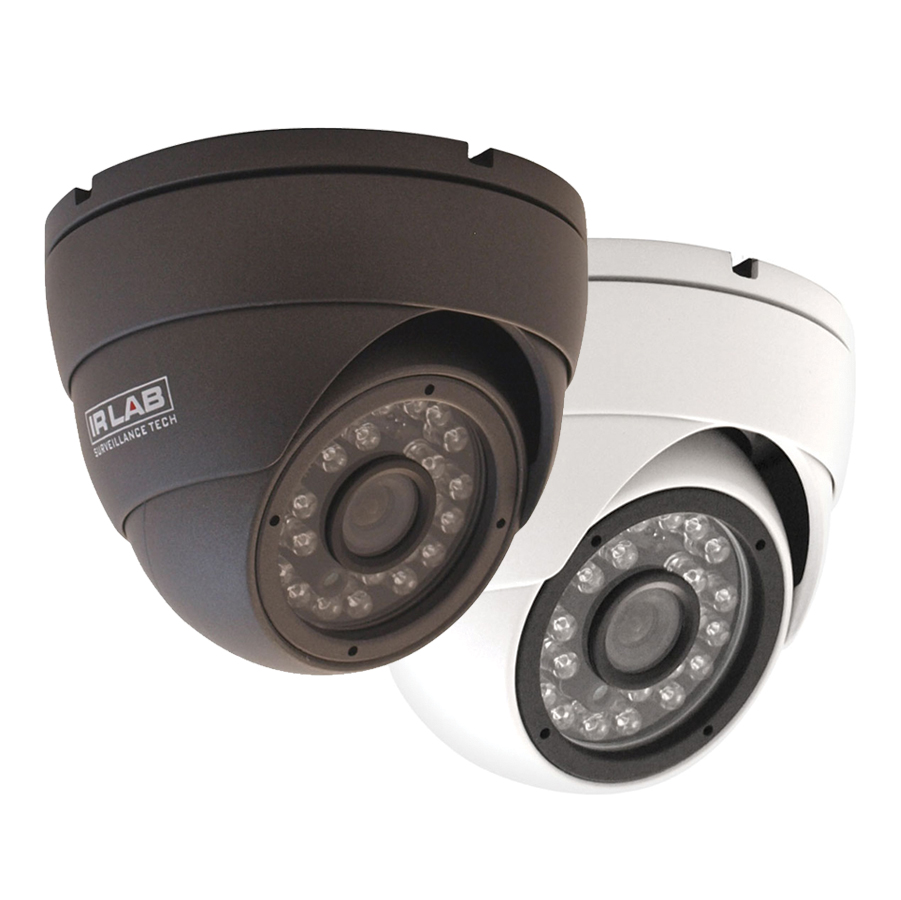

IRLAB 700TVL 960H IR Mini Dome

Product ID INS-315D-UH
Price: £53.99 (£64.79 Inc. VAT)
  • 700TVL 960H Sony Effio-E
  • Day/night
  • 3.6mm fixed lens
  • 15m IR range
  • Digital Wide Dynamic Range
  • Smart IR
  • OSD
  • Graphite/White
  • IP65
  • 12v DC 260mA
  • Size: Ø 94 x 80mm
  • Model Number: INS-315D-UH
  • Resolution: 700TVL
  • 960H: Yes
  • Lens Size: 3.6mm
  • Lens Type: Fixed Iris
  • Lens Angle: Diagonal:93°/Horizontal:74°/Vertical:56°
  • Sensor: Sony 811 CCD
  • DSP: EFFIO-E - Sony 4140
  • IP rating: IP65
  • IR Cut: No
  • IR LEDs: 24pcs
  • IR LED Range: 15m
  • IR LED Angle: 80°
  • Smart IR: Yes
  • Video Format: PAL
  • Scanning System: 2:1 Interlace
  • Picture Elements: 1020Hx508V
  • S/N Ratio: >52dB
  • Wide Dynamic Range: No
  • DWDR/ATR: Yes
  • White Balance: Auto, ATW, Push Lock, Anti CR, User, Manual
  • Back Light Compensation: Off, BLC, HLC
  • AGC: Auto, Manual
  • Gamma: 0.45
  • Minimum Illumination: 0Lux
  • Electronic Shutter: 1/50 - 1/10,000s
  • Sens UP/DSS: No
  • 2D Noise reduction: Yes
  • 3 D noise reduction: No
  • Digital Zoom: No
  • On Screen Display: Yes
  • UTC: Yes
  • Voltage: DC12V
  • Current: 270mA
  • Video Output: 1v p-p, 75ohm
  • Audio Output: No
  • ICR External Control: No
  • Back Focus: No
  • Operating Temperature: -30°C to +45°C
  • Dimensions: 94x80mm
  • Weight: 460g
