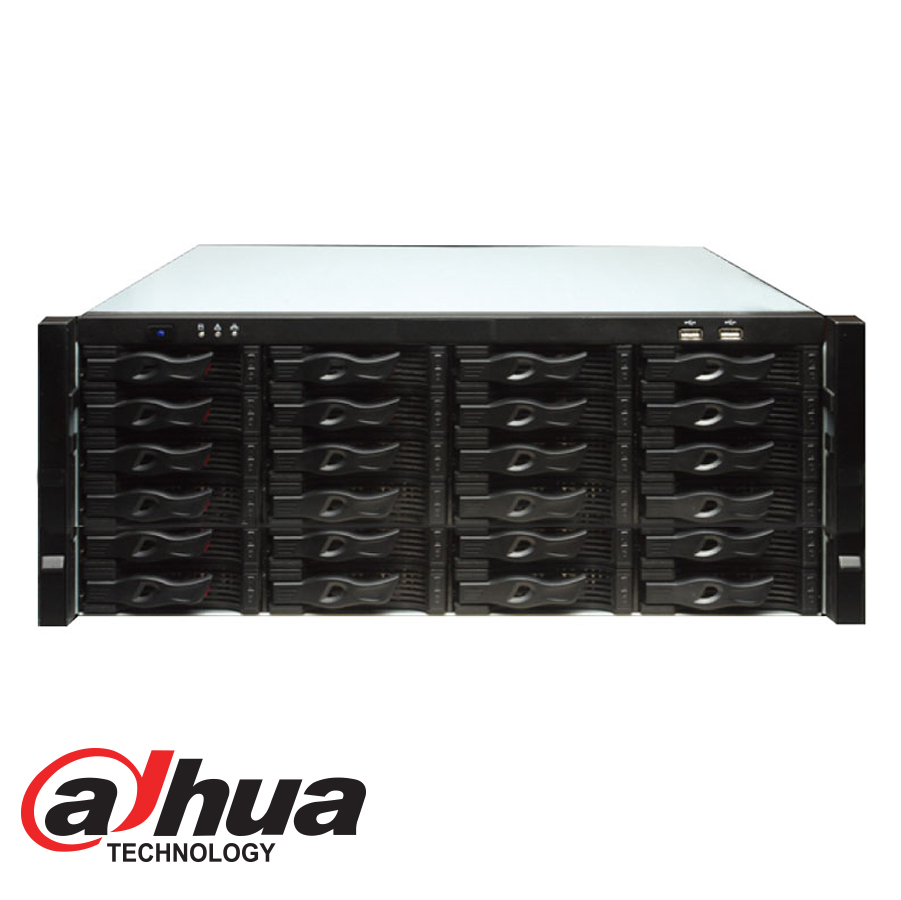

HD-IP 256Ch NVR + Dahua CMS + 1080p + Megapixel Recording

• 8000GB to 96000GB HDD Options
• Megapixel Recording
• 1080P Live Real Time Display
• ONVIF Compatible
• Up to 8 Megapixel recording resolution
• Up to 512Mbps incoming bandwidth
• Free Dahua CMS for Windows & Mac
• Dedicated Dahua Smartphone App with playback
• USB/CD/DVD/Network Backup
• 2x HDMI 1x VGA Outputs
• Audio Recording
• Alarm In/Out
• Smart Search Facility
• Digital Zoom
• Size: 494 x 480 x 175mm (4U)
• 3 Year Warranty

Model Number: NVR724-256-8TB

SYSTEM

Main Processor: Intel® Core™ i7 Processors
Operating System: LINUX
Motherboard: Embedded Board (Support 7x24 operation)
Memory: 8GB DDR3 (up to 16GB)
Case: Hot-dipped galvanized sheet steel (1.2mm thickened), High-precise aluminum alloy slide, Patented pull-out rack design
Fan: Dual ball screw bearing fan, MTBF>100,000h, support replacement during operation
Interface: Local GUI & WEB GUI

VIDEO & AUDIO

Input: 128ch@1080P/256ch@720P
Transmission: 128ch@1080P/256ch@720P
Recording: 128ch@1080P/256ch@720P
Preview: 20ch@1080P/40ch@720P/68ch@D1 (Screen 1 2 , default) +16ch@1080P/16ch@720P/16ch@D1(Screen 3 6) (Optional)
Playback: 16ch@1080P/16ch@720P/16ch@D1 (128Mbps in Raid 5 mode) 8ch@1080P/16ch@720P/16ch@D1 (64Mbps in single HDD mode)
Recording Resolution: 8Mp, 5Mp, 3Mp, 1080P, 720P, 960H, D1, CIF, QCIF, VGA
Audio: 1ch Mic in, 1/1ch audio in/out

RECORDING

Recording Mode: Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
Alarm Recording: Video loss, Camera blank, Motion detection, External alarm
Backup Mode: Network download/USB HDD/USB CD&DVD-RW/eSATA Device

DISPLAY

Interface: 6 HDMI, 1 VGA (Default: 2 HDMI+1 VGA )
Video Output: 6 HDMI, or 1ch VGA(or built-in LCD) & 5ch HDMI sync video output (Default: 2 HDMI, or 1 VGA(or built-in LCD) & 1ch HDMI sync video output )
Multi-screen Display: The 1st screen: 1/4/6/8/9/16/25/36/64 The 2nd-6th screens: 4
Privacy Masking: 4 customized zones for privacy masking for each area
Maximum Live View Channels: Screen 1: 9CH Screen 2: 3CH @ 720P (30fps), Screen 1: 4CH Screen 2: 2CH @1080P (30fps), Screen 1: 6CH Screen 2: 3CH @ 3MP (15fps), Screen 1: 7CH Screen 2: 4CH @ 5MP (8fps), 16 - 64CH @ Extra Stream Resolution
Maximum Playback Channels: 16CH @ 720P, 1080P, 3MP, 5MP

STORAGE

Internal HDD: 24 SATA ports, up to 96TB
HDD Mode: Single, Raid 0, Raid 1, Raid 5 (Support global HDD Hot-standby) (Optional)
HDD: Independent HDD rack, support hot swap

NETWORK

Interface: 4 RJ-45 ports (10/100/1000Mbps)
Ethernet Port: 4 Ethernet ports joint working or 4 independent 1000Mbps Ethernet ports

MD & ALARM

Motion Detection: Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Alarm Input: 4ch, low level effective, green terminal interface
Smart Camera Support: Yes
Relay Output: 4ch, Relay contact (1A@24VDC), NO/NC programmable, green terminal interface

AUXILIARY INTERFACE

Front cover: Support hot swap, 7" inch HD LCD (1920x1080/1280x1024/1024x768) (Model –D&-DR)
USB: 4 USB ports (2 USB2.0 on front-panel, 2 USB3.0 on rear panel)
eSATA: 1 eSATA port
RS485: 2 Mini SAS ports

GENERAL

Power Supply: AC 100V~240V, 47~63Hz
Power Consumption: 200W~400W (With HDD)
Working Environment: 0°C~40°C
Working Humidity: 10%~80% (non-condensation)
Dimension: 4U, 480mm×494mm×175mm
Weight: 29kg (without HDD)
Installation: Rack-mounted
