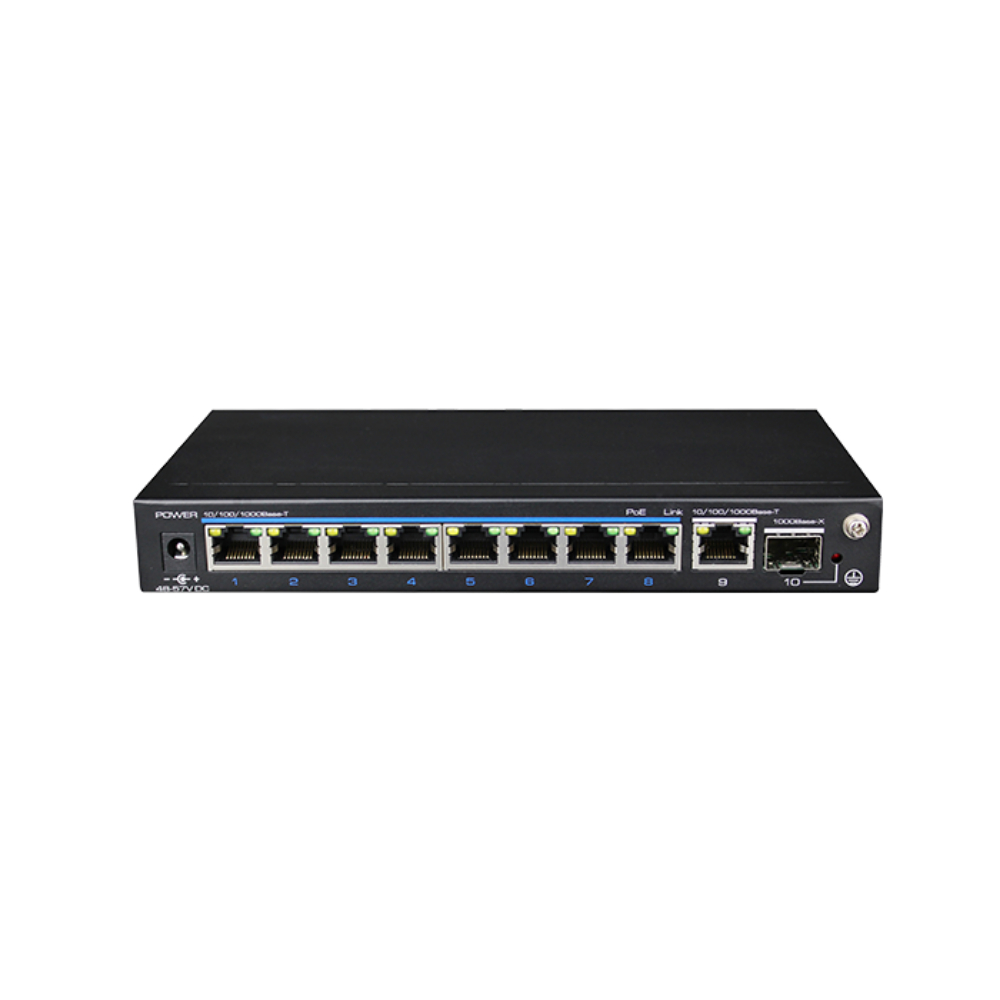

The Genie IP8GESP/E is an unmanaged ethernet switch designed for gigabit Ethernet access and PoE powered network. It provides 8 gigabit ethernet ports, 1 gigabit uplink port, and 1 gigabit SFP optical module.

Features:

• 8 Gigabit 10/100/1000 Base downlink electrical RJ45 ports
• Optical and electrical gigabit uplink port available
• Each port offers 30W per port
• High speed data forwarding
• Easy plug and play installation (Wall, din rail and rack mount options)
• Design for CCTV application
• Supports PoE and PoE+ products
• 6Kv surge protection

Specifications:

• Weight - 0.54 kg
• Interfaces - 8x Ethernet Ports – 10/100/1000 Mbps
  RJ45 Connection
  1x Uplink Ports
  1x Ethernet Ports 10/100/1000Mbps –
  RJ45 Connection
  1x SFP – 1000Mbps
• Network Protocol & Standards - IEEE802.3, IEEE802.3u, IEEE802.3ab, EEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad, IEEE 802.1D and IEEE 802.1.
• Switch Capacity - 20 Gbps
• Packet Forwarding Rate - 14 Mpps
• Exchange Way - Store and Forward
• Cache - 1M
• MAC Address - 4K
• PoE Standards - 802.3af/at (PSE)
• PoE Supply - End-Span
• PoE Power Line Sequence - 1/2 (+), 3/6(-)
• PoE Output Power - Single-Port PoE Output<30W (54V DC), PoE Output power of the whole machine <120W
• Lightning Protection - 6KV Standards: IEC61000-4-5
• ESD - Contract Discharge 6KV, Air Discharge 8KV, Implementation of Standards: IE61000-4-2
• Input Voltage - DC 48V-57V
• Power Consumption - <5W
• Working Temperature - -10°C-45°C
• Storage Temperature - -40°C-85°C
• Working Humidity - 5%-95% (No Condensation)
• Power Supply - AC100V – 240V (Mains)
• Dimensions - 200 x 101.88 x 27 mm
• Weight - 500g
• Certification - CE, FCC, ROHS
