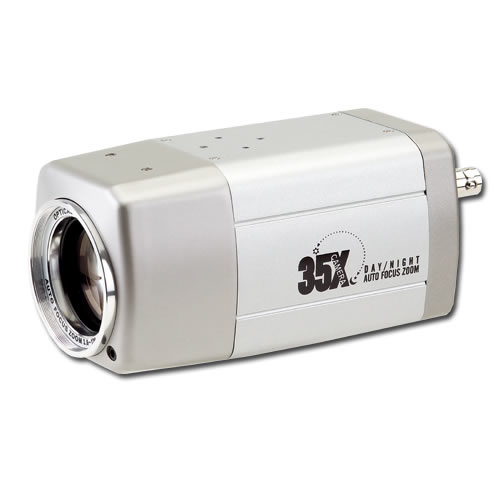

Ivigil Auto Focus Zoom Camera 520TVL

Product ID IVA702
Price: £224.35 (£269.22 Inc. VAT)
  • Sony EX-View HAD CCD sensor (HR)
  • 35x optical zoom, 16x digital zoom
  • Day & Night (IR Cut Filter Removable)
  • On Screen Display (OSD) set-up menu
  • Built-in 5 keys to control zooming, focusing function and setup menu adjustment
  • Support functions: AI, AWB, AGC, BLC, FL,
  • Positive / Negative and Auto Focus, Audio function
  • Support Auto / Native / PELCO D&P / LG protocol
  • Option: Wire Remote Controller with 30M Cable
  • 2 Year Warranty

Designed for applications where a zoom camera is required enabling operators to zoom in on the action as it happens. The zoom function is controlled using RS485 or RS422 data signals via a control panel or compatible DVR. This camera will communicate with control devices which use the popular Pelco P & D protocols.

Model No. IV-A702
Image Device 1/4" Colour Sony EX-View HAD (Hi-Res.)
Picture Elements PAL:752x582
Resolution 520 TVL
Min. Illumination 0.05 Lux (Night / BW), 0.12 Lux (Day / Color) / F1.6
S/N Ratio More than 48dB
Electronic Shutter PAL:1/50~1/30,000
Flickerless Mode On / Off (PAL:1/120)
Iris Control Auto / Manual
Lens Furnished 35x Auto Focus Zoom (3.6~126mm / F1.6~4.2), Video AF, IR-Cut Filter Removable
Digital Zoom Ratio Basic 16x (Total Zoom Ratio 352x), 2x~16x variable
Min. Shutting Distance 0.01m (Wide), 1.5m (Tele)
Camera Control RS-485/422 or RS-232 (option)
Remote Control 6-pin Circular Connect: Zoom, Focus, A/D key, DC12V IN
Key Control Tele (Up), Wide (Down), Near (+), Far (-)
Protocol Auto / Native / PELCO D&P / LG
Zoom Speed 8 /11 / 14 sec mode
Zoom / Focus Preset 128 preset points
Focus Mode Auto / Manual / Push Auto
On Screen Display On / Off
Negative / Positive On / Off
Day / Night Mode AE / Sensor / Day / Night / External
Day / Night Control Day / Night output, Day / Night External input
Brightness Control Manual
Wide Burst On / Off
White Balance Auto / Hue / Indoor / Outdoor / Manual / Push Auto
Gain Control Auto / Manual
Back Light Comp. On / Auto (Center / Up / Down / Left / Right) / Super / Off
Sync. System Internal
Video Output 1 Vp-p / 75 Ohms
Audio Output 2 Vp-p / 50 Ohms
Power Supply DC12V±10%
Power Consumption 340mA max.
Operating Temp. -10°C ~50°C
