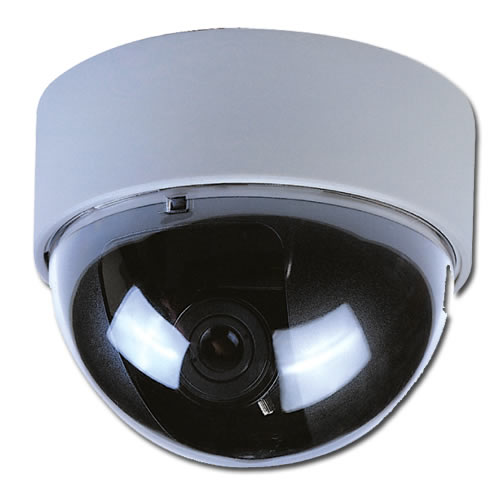

Ivigil Vari-Focal Dome Camera 540TVL

Product ID IVD822

Price: £49.95 (£59.94 Inc. VAT)

Add Plug & Play Cable

Add Power Supply

Overview
Description
Specifications
Delivery Information

1/3” High sensitivity CCD sensor for 540TVL
Support functions OSD, AI, AWB, AGC, BLC, FL, Mirror
Vari-Focal DC Drive Lens
3-Axis Mechanism for free lens rotation
2 Year Warranty

The Ivigil security camera range offers highest quality surveillance images at affordable prices. This latest addition to the range is a VF (Vari-focal) dome camera which provides high resolution colour CCTV images.

The lens is mounted on a 3-axis bracket which allows the dome to be wall or ceiling mounted which makes it suitable for most indoor applications. It's discreet appearance enables it to blend in to most environments.

Model No.	IV-D822
Image Device	1/3" Color Sharp
Picture Elements	NTSC:768x494, PAL:752x582
Resolution	540 TVL
Min. Illumination	0.02 Lux / F 1.2 (IR Off),
S/N Ratio	More than 48dB
Electronic Shutter	NTSC:1/60~1/100,000, PAL:1/50~1/110,000
Gamma	0.45
Iris Control	DC Drive
Lens Furnished	Vari-Focal Lens (VF) : 3.7~12mm / F1.6~3.0, Wide:71.6°×55.8°, Tele:23.8°×17.9° (H×V)
White Balance	Auto, Manual
Gain Control	High / Low
Back Light Comp.	On / Off
Camera ID	15 Charactors
Mirror	On / Off
Sync. System	Internal
Video Output	1 Vp-p / 75 Ohms
Power Supply	DC12V±10%
Power Consumption	110 mA max.
Operating Temp.	-10°C ~ 50°C
