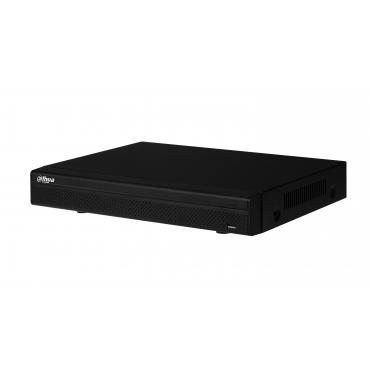

HD-IP 4 Channel NVR Cube + PoE Supported

• 1000GB to 4000GB HDD Options
• 1000GB Included
• Modern design ideal for domestic installations
• Megapixel Recording
• PoE on all channels
• True Plug & Play
• 1080P Live Real Time Display
• ONVIF Compatible
• Up to 56Mbps incoming bandwith
• Free Dahua CMS for Windows & Mac
• Dedicated Dahua Smartphone App with playback
• USB/Network Backup
• HDMI/VGA Outputs
• Audio Recording
• Supports P2P with QR code
• Size: 205 x 205 x 45mm (Smart 1U)

Specification

Model Number: NVR1104-P-1TB

System

Main Processor: Dual-core embedded processor
Operating System: Embedded LINUX

Video

IP Camera Input: 4 channel
Two-way Talk: 1 channel Input, 1 channel Output, RCA

Display

Interface: 1 HDMI,1 VGA
Resolution: 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split: 1/4
OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Compression: H.264/MJPEG
Record Resolutions: 1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480)
Maximum Record Bandwidth: 56Mbps
Bit Rate: 48 ~ 8192kbps
Record Mode: Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval: 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection & Alarm

Trigger Events: Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection: Motion Detection, MD Zones: 396(22×18), Video Loss & Anti Tamper
Alarm Input: N/A
Alarm Output: N/A

Playback & Backup

Sync Playback: 1/4
Search Mode: Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode: USB Device/Network

Network

Ethernet: 1 RJ-45 port (10/100Mbps)
PoE: 4 ports (IEEE802.3af/at)
Network Function: HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), SNMP, P2P
Max. User Access: 128 Users
Smart Phone: iPhone, iPad, Android, Windows Phone

Storage

Internal HDD: 1 SATA port, up to 4TB
External HDD: N/A

Auxiliary Interface

USB: 2 ports,USB2.0
RS232: N/A
RS485: N/A

General

Power Supply: Single, DC48V/1.25A
Power Consumption: NVR: 10W(without HDD), PoE: Max 25.5W for single port
Working Environment: -10°C~+55°C / 10%~90%RH / 86~106kpa
Dimensions : Smart 1U, 325mm×255mm×55mm
Weight: 500G(without HDD)
