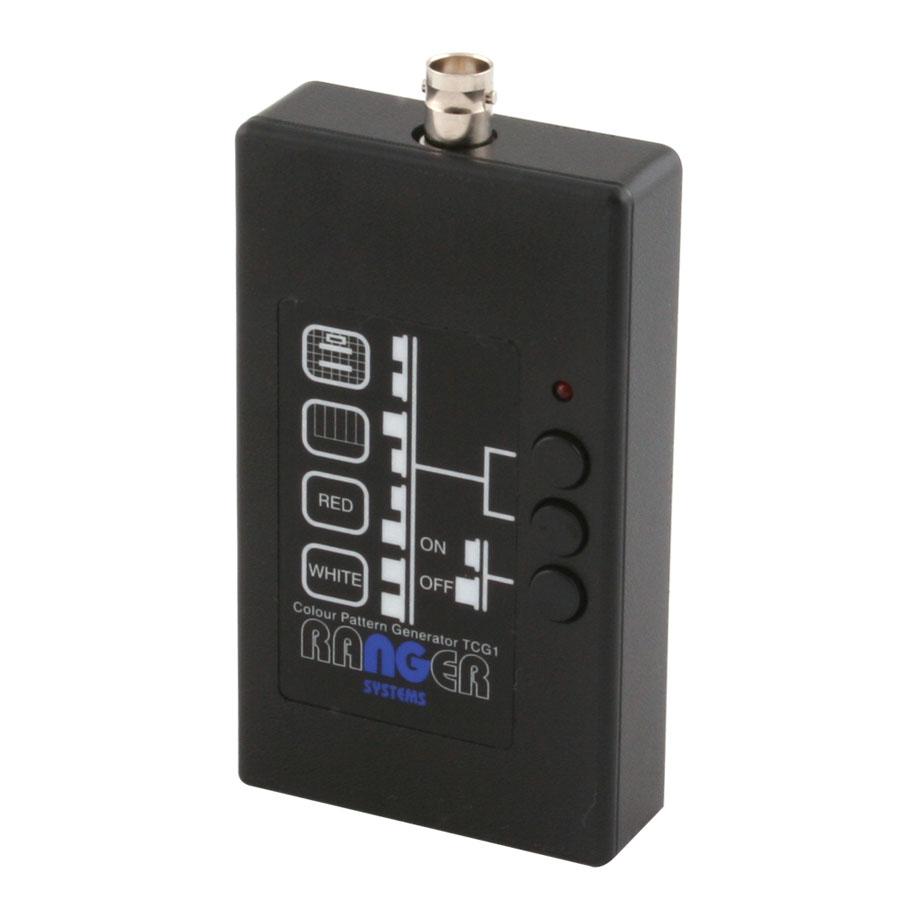

Battery Operated Test Card Generator

A test meter that will generate a 1-volt peak to peak video test signal in PAL (colour) or CCIR ( mono).

• Generate a 1-volt peak to peak video test signal
• PAL or CCIR
• Battery operated
• 1 Year Warranty

Specification

Model Number: PR139
Output: 1 volt p-p into 75 Ohm
Line Frequency: 15,625 Hz
Field Frequency: 50Hz interlaced
Chroma subcarrier frequency: 4.43381875 MHz
Colour System: PAL
Power Source: PP3 Alkaline Battery
Dimensions (overall): 118 x 60 x 29mm
