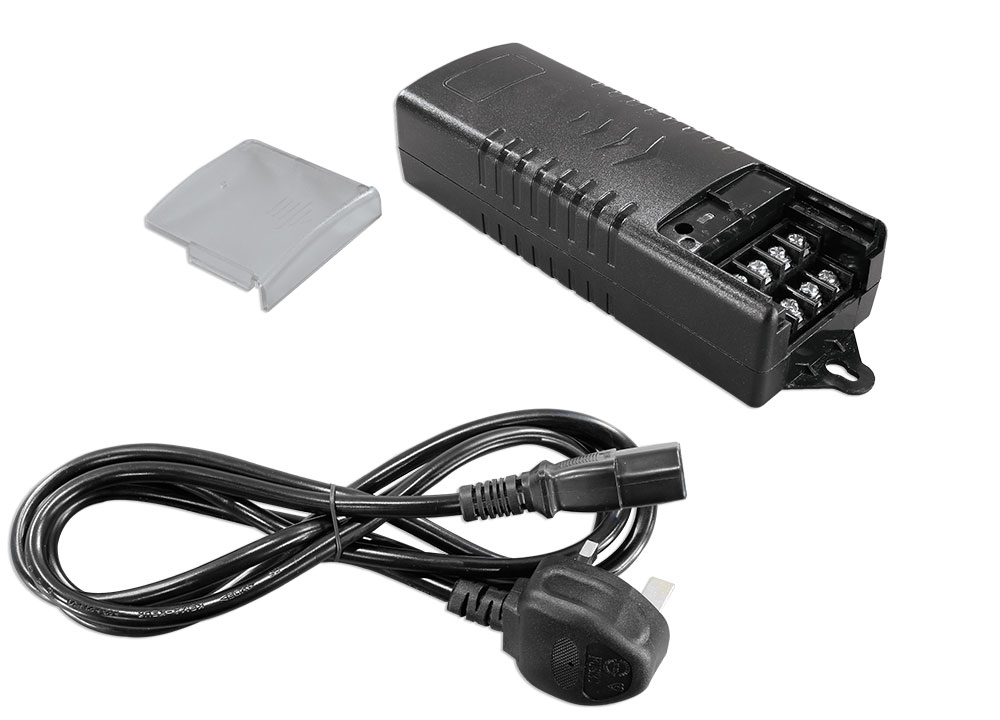

Wall Mount Camera PSU 18 Port, 20 Amp Power Supply

Product ID PSU20A18B
Price : £69.99 (£83.99 Inc. VAT)
  • Rear cable entry point
  • PTC Technology
  • Green active status LED's
  • Double earth lid and base
  • Easy access terminals
  • 1 Year Warranty

With rear cable entry point and easy access terminals this is a user friendly wall mount power supply. It has LED status for each output which when active shows a green light. High quality connectors, flathead or philips screwdriver fitting. This unit also benefits from PTC technology which protects the equipment in the event of a surge with a maximum 1.5 amp current per output.



SPECIFICATION
Input Voltage Range 220VAC
Output Voltage 12V DC
Output Current 18A=1A*18 /18A=1.5A126
Output Power 216
Effenciency >78%
Work Temperature 0-40°C
Storage Temperature 0-70°C
Humidity 95RH
Elevation >3500
Rated Input Voltage 220VAC
Input Voltage Range 190-264VAC
Input Current 2.3A
Input Freq Range 50/60Hz
Voltage without load 12VDC
Voltage Regulation 12V +5%
Voltage with full load 12v -5% +5%
Current Regulation 1%
Current Range 0.3-20A
Ripple and Noise <100mV
Peak <250mV
Start Time <3s
Hold Up Time <20s
Over Current Protection Rated Current 110%-160%
Short Circuit Protection OK
