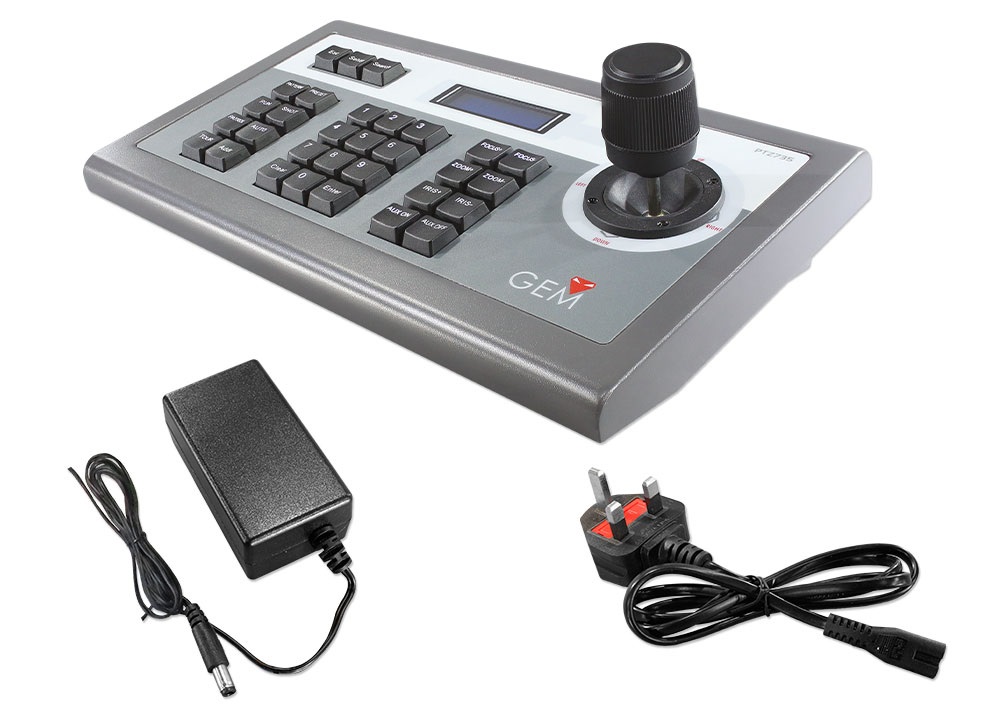

Mini Compact PTZ Keyboard Controller

Product ID PTZ705
List Price: £99.99
Price : £79.99 (£95.99 Inc. VAT)

SALE## SALE## Only 4 Units Left In Stock!


  • Control Up To 255 PTZs
  • LCD Backlit Display
  • 4 Selectable Speed Levels
  • 4 Different Protocols
  • Compact Size Just 129mm Wide
  • Light Up keys
  • 1 Year Warranty

With the ultra compact PTZ705 it's easy to control all the functions of up to 255 PTZ domes with a maximum communication distance of up to 1.2 km. The LCD backlit display indicates the camera ID, protocol and baud rate. The keys and display illuminate so you are still able to use the keyboard in low light situations. Other features include key press tones (adjustable volume), anti jamming and password lock.

View instruction manual here.


  • All operations are displayed in the LCD display.
  • One PTZ705 can control up to 255 x PTZs.
  • The address range for PTZ domes is 0 ~ 254.
  • Supports Protocols: Pelco-D, Pelco-P, Hik & Dahua.
  • Buad Rates Provided: 2400, 4800, 9600, 19200, 38400
Input Voltage 12V DC
Power Connection 2.1mm DC Socket
Protocol Pelco D, Pelco C, Hik, Dahua
Baud Rate 2400, 4800, 9600, 19200, 38400
Finish Black
Build Plastic
Backlight Compensation LCD Display & Keys
Operating Temperature 0 deg C to 50 deg C
Pan Speed Selectable
Tilt Speed Selectable
Maximum Number Of PTZs 255
Joystick 3D
LCD Screen Yes
Dimensions 135 x 129 x 5mm
