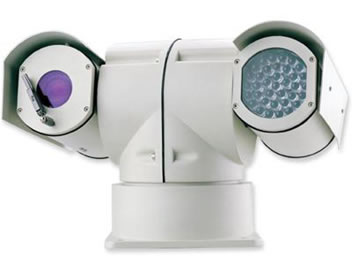

Armoured High Speed PTZ Head Camera With IR Illuminator And Wiper

Product ID PTZ920J
Price: : Trade only
  • Overview
  • Description
  • Specifications
  • FAQ's
  • 22X Optical zoom
  • 6 Tours and 128 Preset positions
  • High resolution 500TVL
  • High speed 80° per second
  • High tilt speed 40° per second
  • Weatherproof with IP66 rating
  • Built in wiper for
  • IR range of up to 30 metres
  • Multi protocol
  • 1 Year Warranty

The new Armoured ROBO-PTZ camera range is a great choice for indoor surveillance of warehousing and other similar "voluminous" storage areas due to its built in and directional Infra-Red illuminator.

Wherever you point the camera you also point the IR illuminator for great low light surveillance. The IR illuminator has an effective range of about 30 metres indoors but please note the illumination is a narrow angle of about 15 degrees so it doesn't produce a floodlight effect, more like a powerful torch.

Constructed out of metal with a minimal window size for the lens and the IR illuminator, the ROBO-PTZ has more vandal resistant features than a standard PTZ dome and offers more of an obvious deterrent as you can see it rotate. The lens and IR illuminator almost give it "eyes" so you know when its looking at you! The built-in multi-protocol controller card means its easy to integrate into other CCTV systems with Pelco-D, Pelco-P and 14 more popular protocols built in as standard.

Please note alarm inputs are not available on the 12v versions of the ROBO PTZ.

Weather-proof the PTZ can also be used externally but please note the CCTV cameras lens cover has no "wiper" on it so that if rain droplets where to land on it they may obscure the vision temporarily.

Built to a high standard, the ROBO-PTZ can also be mounted on to of a vehicle for mobile surveillance. A separate shock absorber is available that helps mount it on a vehicle and lessens vibration when travelling to the location requiring monitoring.

TECHNICAL SPECIFICATION: PTZ920J
Image Sensor 1/4" Colour
Resolution 500 TVL
Lens Type 3.6-82.2mm Autofocus
Image Output 1 Volt Peak-Peak 75 ohm
Min. Illumination 0.5 Lux
InfraRed LEDs 36
Input Voltage 12V DC
Current Consumption 1.5 Amp
IP Rating IP66
Iris Control Auto or Electronic
Signal to Noise Ratio 50dB
Video Connection BNC Socket
Power Connection Terminal Strip
Protocol Pelco P & D
Other Protocols 14 others
Finish Ivory
Build Aluminium
IR Wavelength 850nM
Optical Zoom 22 x
Pre-sets 128
Tours 6
Pan Speed 0-70deg/sec
Tilt Speed 60 deg/ sec
Dimensions W300 x D178 x H224mm

Not available on this product.
