Star Design HD Camera Keyswitch Isolator

Product ID SEE486B
List Price: £149.99
Price: £129.99 (£155.99 Inc. VAT)

Disguised in an isolator switch box this high resolution dual output CCTV camera can be used with your existing legacy 'Analogue' CCTV systems using its 700TVL camera output or using the 1080p HD-TVI connector it will produce ultra high resolution 2MP (two Megapixel) video quality.

The metal casing hides a tiny HD module camera with a 3.7mm fixed pinhole lens. The unique connection lead has been designed specifically for this camera. The ultra thin 3m lead terminates into 2 BNC (1x TVI, 1x CVBS) and a 2.1mm DC socket. The extra long 3m lead enables the connections to be hidden far from the camera for a truly covert installation.
The SEE486B features an isolator star switch design. Alternative isolator (SEE486A), aircon control (SEE486C) and solar control (SEE485D) designs are also available.

FEATURES
  • Dual Output TVI & Analogue
  • Motion Detection
  • Ideal For Entrances
  • 3.7mm Pinhole Lens
  • Privacy Masking
  • Tough Metal Casing
  • 1 Year Warranty
SPECS
  • Image Sensor 1/2.8" Sony CMOS
  • Resolution 1080p (TVI) / 700TVL (CVBS)
  • Lens Type 3.7mm Cone Pinhole
  • Image Output 1 Volt Peak-Peak 75 ohm
  • Min. Illumination 0.01 Lux
  • Day/Night Function Electronic
  • Input Voltage 12V DC
  • Current Consumption 110mA
  • Gain Control Automatic
  • Video Connection BNC Socket
  • Power Connection 2.1mm DC Socket
  • Finish Silver
  • Build Aluminium Alloy (Case)
  • Backlight Compensation Selectable
  • White Balance Auto
  • Digital Zoom 8 x
  • Cabling 3m (300mm) Fly Lead Supplied
  • Wyde Dynamic Range Yes
  • Sens Up Yes
  • Menu OSD
  • Up The Co-ax TVI Coaxitron
  • Noise Reduction DNR
  • Dimensions 92 x 38 x 31mm

Delivery & Returns Information

Product Reviews
No Reviews For This Product.

Recommended products

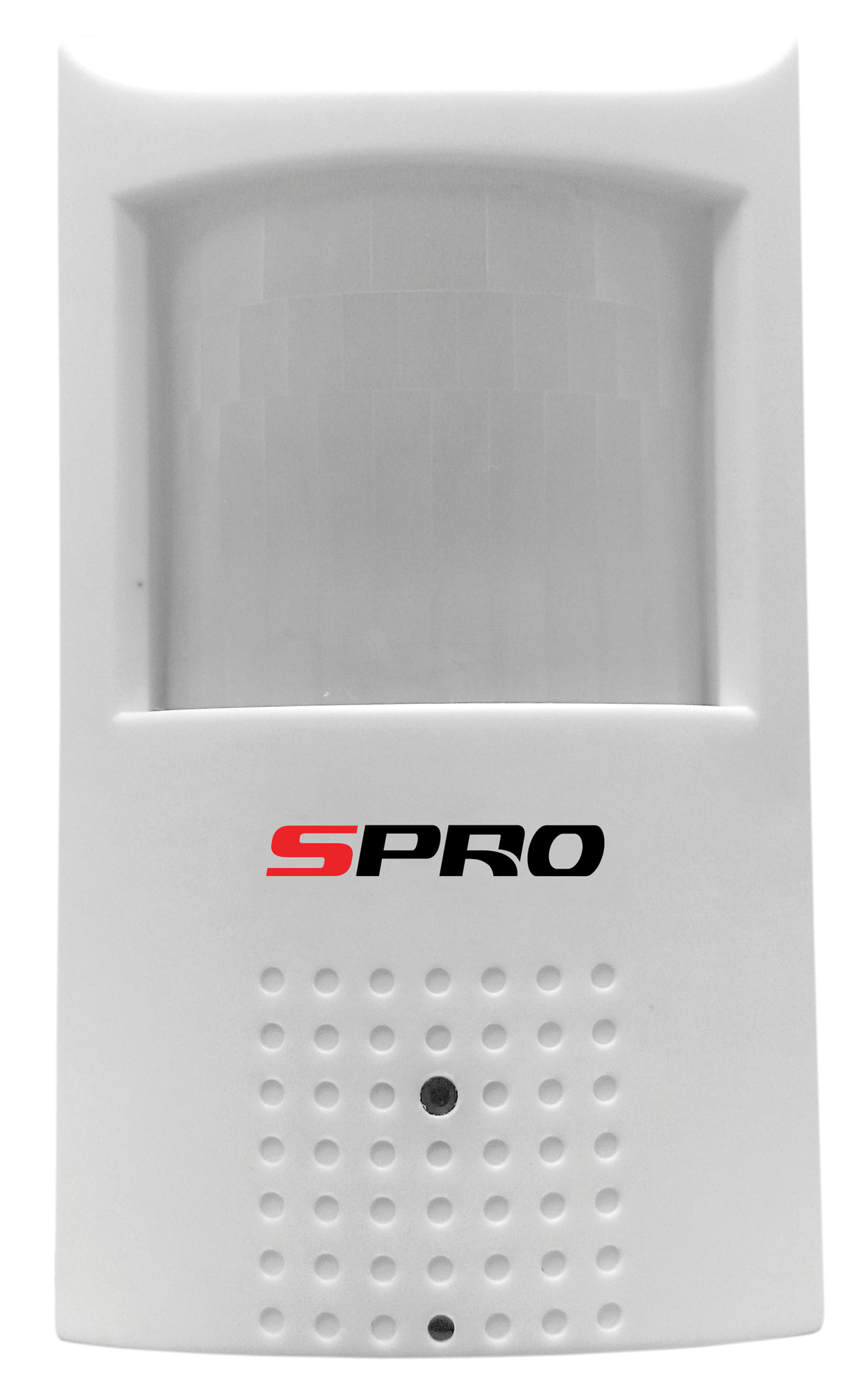

700TVL 3.7mm PIR Camera With IR LEDs And Audio
