Apollo HD Ready 720p Eco 8 Camera System

Product ID SYS700
Price : Email for pricing

  • Overview
  • Description
  • Specifications
  • Cable Solutions
  • FAQ's

Camera Overview

  • 1/4" CCD Image Sensor
  • 3.6mm Board Lens
  • High resolution 480TVL
  • 12V DC Operation
  • Plastic dome camera
  • 0.8 lux Minimum Illumination
  • Back light compensation
  • Auto white balance
  • Auto electronic shutter
  • Auto gain control
  • Great internal camera
  • 1 Year Warranty
DVR Overview
  • H.264 compression algorithm ideal for standalone DVR
  • Realtime live display up to 8 cameras with 720P high denition
  • 200/240fps recording for CIF and special channel D1(4CIF) realtime recording
  • Dual encoding streams exible for network transmission and mobile phone monitoring
  • Pentaplex function: live, recording, playback, backup & remote access
  • 4 HDDs supported, eSATA port & CD-RW/DVD-RW supported
  • 8 channel simultaneous playback
  • Smart video detection: motion detection, camera blank, video loss
  • Smart camera settings: privacy masking, camera lock, color setting and title display
  • Alarm triggering screen tips, buzzer, PTZ preset, e-mail, FTP upload
  • Powerful network software: built-in web server, multi-DVR client, MSS(mobile phone surveillance software) & CMS
  • 3 Year Warranty



High resolution system suitable for internal use. HD Ready DVR 720p with added benefit of having a DVD writer which allows the user to backup there evidence on to DVD.

Camera Specifications

TECHNICAL SPECIFICATION: LCDMPC
Image Sensor 1/4" CCD
Resolution 480 TVL
Lens Type 3.6mm Board
Image Output 1 Volt Peak-Peak 75 ohm
Min. Illumination 0.8 Lux @ F1.2
Input Voltage 12V DC
Current Consumption 150mA
Dimensions Dia 128mm x (H)80mm
Signal to Noise Ratio More than 48db
Finish Black
Backlight Compensation Automatic

 DVR Specification

Video
Video Input 8 Channel BNC 1.0Vp-p 75Ω
Video Output 1 Channel TV output BNC 1.0Vp-p 75Ω, 1 VGA output 1 X HDMI output
Video Standards PAL(625Line, 50fps) NTSC(625Line 60fps)
Video Compression H.264
Video Resolution
Format PAL NTSC
D1(4CIF) 704 X 576 704 X 480
DCIF 704 X 288 704 X 240
CIF 352 X 288 352 X 240
QCIF 176 X 144 176 X 120
Video Recording CIF/QCIF: PAL 1f/s~400f/s
4CIF: PAL 1f/s-96f/s 25 fps per camera CIF
6 fps per camera 4CIF/D1Dual encoding streams supported;
Video Display Split Full and multiple screen display,
1 / 4 / 8
Tour Display Support
Image Quality 1~6 level(level 6 is the best)
Privacy Masking 8 self-defined four-sided zones for privacy
masking for each camera
Camera Lock Camera locked for users
Camera Adjustment Adjust colour according to different time period
Video Information Camera title, time, video loss, camera lock,
motion detection, recording
TV Output Adjustment Adjust TV output colour & display zone
Audio
Audio Input 4 channel. RCA,200-2800mV, 30KΩ
Bidirectional Talk Input 1 channel, RCA 200-2800mV, 30KΩ
Audio Output 1 channel, RCA 200-2800mV, 5KΩ
Audio Compression G.711
Video Detection & Alarm
Motion Detection Zones: 396 (22*18) detection zones
Sensitivity: 1~6 (level 6 is highest)
Trigger recording, PTZ movement, tour, alarm
Video Loss Trigger recording, PTZ movement, tour, alarm
Camera Blank Trigger recording, PTZ movement, tour, alarm
Alarm Input 16 channel, programmable, ground, manual
open/closed
Trigger recording, PTZ movement, tour, alarm
Relay output 3/3/3 channel, 30VDC, 1A, NO/NC, form-C
Hard Disk
Hard Disk 1 SATA port
Space Occupation Audio: 14.4MB/H Video: 56~500MB/H
HDD Management Hard disk hibernation technology, HDD faulty
alarm & Raid(Redundancy)
Record, Playback & Backup
Recording Mode Manual, continuous, video detection
(including motion detection, camera blank,
video loss), Alarm
Recording Priority Manual >Alarm >Video Detection >Continuous
Recording Interval 1 to 120 minutes (default: 60 minutes)
Overwrite Mode Support
Raid Function Support
Search Mode Time/Date, Alarm, Motion Detection & exact
search (accurate to second)
Playback 8 channel playback simultaneously, pause, stop,
rewind, fast play, slow play, next file, previous file,
next camera, previous camera, full screen, repeat,
shuffle, backup selection
Digital Zoom Selected zone can zoom into full screen
during playback
Backup Modes Flash disk/ USB HDD/ USB CD/DVD-RW (data)/
Network download
Digital Zoom Selected zone can zoom into full screen during
playback
Network
Interface RJ-45 Port (10/100M)
Network Functions TCP/IP, PPPOE,DDNS, FTP, IP Filter,
Remote operation Monitor, PTZ control, playback, system setting,
file download, log information
Auxiliary Interface
USB Interface 2 ports, 1 for mouse control, 1 for backup
RS232 PC Communication
RS485 PTZ Control
Environmental
Power Supply 220V 50Hz / 110V 60Hz
Power Consumption 25W
Working Temperature -10oC~+55oC
Working Humidity 10%~90%
Atmosphere Pressure 86kpa~106kpa
Dimension 1U, 375mmx285mmx45mm (W*D*H)
Weight 2.35KG(without HDD)
Mounting Desktop or rack
System
Main Processor High performance embedded microprocessor
Operating System Embedded Linux
System Resources Pentaplex function: live, recording, playback,
backup & remote access
User Interface GUI, on-screen menu tips
Control Device Front panel, USB mouse,
IR remote control, network keyboard
Input Method Numerical/Character/Denotation
System Status HDD status, data stream statistics, log record,
bios version, on-line user etc.

When purchasing our 8 camera systems you have three options to choose from in regards to cable and power requirements.  All CCTV cameras require a power supply and a cable to run the power to the camera and a cable to run the video from the camera back to your monitor or CCTV recorder.

Select the "No Cable Required" option if you have your own cables and power supply. You may want to just upgrade your cameras and DVR but use your existing cabling that is already installed.


No Cable Required

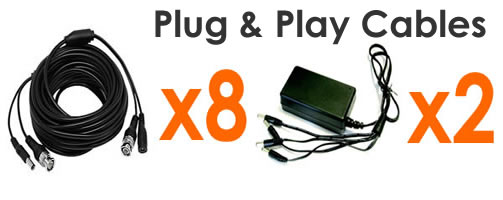

Select the "Plug And Play Cable" option if you are new to CCTV and you are looking for a simple straight forward cable and power solution then our Plug & Play cable option is right for you. It includes 8 X 20 metre RG59+2 Power/Video shotgun cables and 2 X 4 Way 5A 12V Power Supply. This method requires no knowledge of electrics or CCTV installation, each cable has 4 connection points.


Plug and Play Cable Option
Select our "Professional Cable" option if you have a bit more confidence with technical tasks. We still recommend this option to most customers because it is cost effective and can enable you to thread the cable through tight spaces such as small holes. This option includes a 250 metre cable roll of RG59+2 power/video shotgun cable, 16 X BNC twist on plugs, 8 X DC power socket, 8 X DC power plug and 2 X 4 way 5A 12V power supply. This method again requires no knowledge of electrics and there is no soldering required.
Professional Cable Option

Not available on this product.
