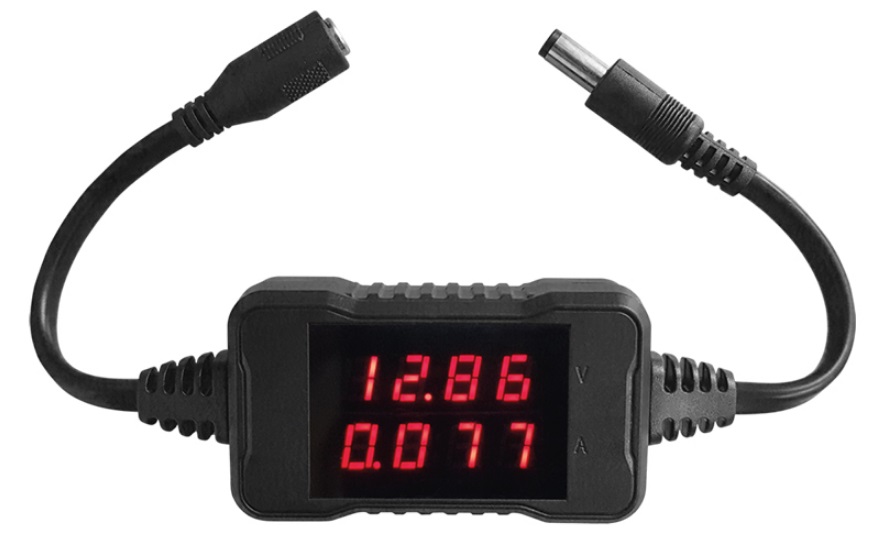

Voltage And Current Meter

Information:

• Voltage and Current Meter
• 1. Voltage range: 3.6V-15V
• 2. Current range: 0-3A
• 3. Accuracy: ±3%
• 4. Power Max.: 45W
• 5. Operating temp.: 0°C ~ 50°C
• 6. Storage temp.: 0°C ~ 60°C
• 7. Pocket-size (65 x 38 x 16 mm)
• 8. Test the voltage and current of cameras, DVR, routers and monitors etc.

• Model Number VCMETER
• Type Voltage and current meter

• 1. Connect the DC Female connector to the Power Supply and connect the DC Male connector to the equipment you are testing.
• 2. Power on your PSU.
• 3. Check your readings.

• Display segment 4 digitals(double, one for voltage, one for current)
• Voltage resolution 0.001V
• Current resolution 0.001V
• Input DC female, 5521
• Output DC male, 5521
• Wire Power cable
• Case ABS material

• Voltage range 3.6V-15V
• Current range: 0-3A
• Accuracy ±3%
• Power Max.: 45W
• Operating temp.: 0 °C ~ 50 °C
• Storage temp.: 0 °C ~ 60 °C

• Dimension (LxWxH) 65 x 38 x 16 mm
• Weight 30g

• 1. Please use at environment temperature 0~50°C and humidity below 85%;
• 2. Do not use in the environment of chemicals and gas which are harmful to electrical products;
• 3. In case of abnormal voltage caused by magnetic fields, high frequency instruments, high voltage spark, lightning etc., please try to isolate before use.
• 4. The input cable should be as short as possible, use a shielded cable if there is a possibility of interference.
