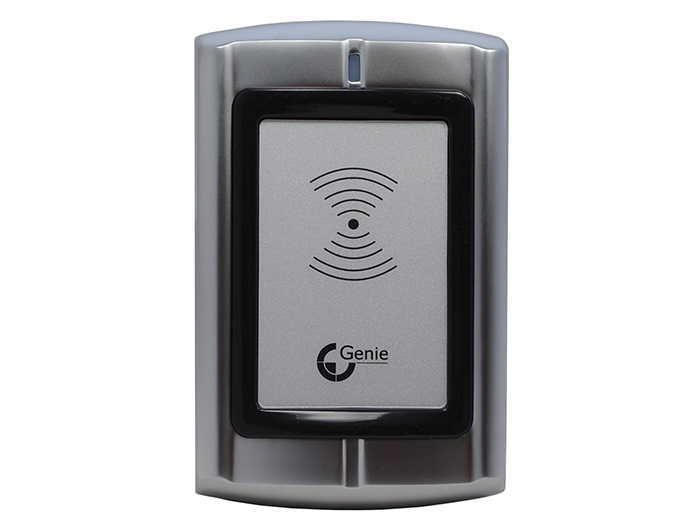

IP66 13.56MHz Proximity Reader

VR-PROX-M:

• Tamper protection
• Reads 13.56MHz cards or fobs
• Wiegand 26 bit
• Strong Zinc alloy electroplated anti-vandal case
• IP66 rating

Specification:

• Frequency 13.56MHz
• Reader Connection Type 50cm fly lead
• IP Rating IP66
• Read Range 20-50mm
• Read Speed 0.1 Second (Common)
• Output Format Wiegand 26 bit
• Working Voltage DC12V
• Working Current 40 ±5mA
• Temperature Range -20°C - 60°C
• Storage Temperature -25°C - 85°C
• Working Humidity 0% - 99% RH
• Dimensions 128 (H) x 82(W) x 28 (D) mm
