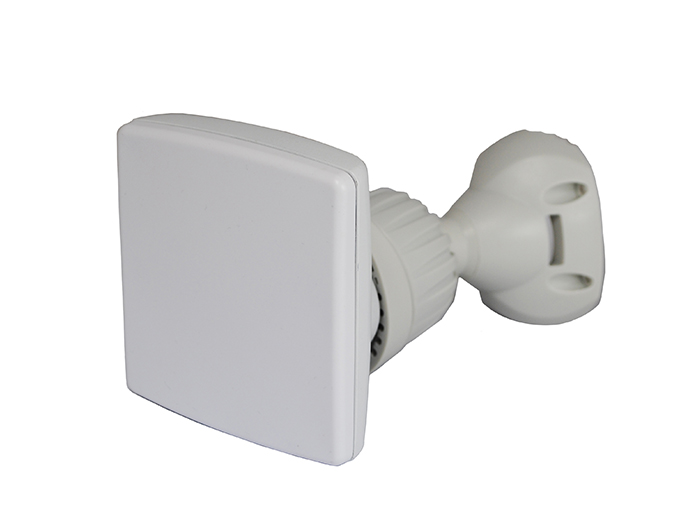

The Genie W3500S is a 5G wireless outdoor CPE with the next generation 802.11a/n Wi-Fi standard. Up to 300Mbps high speed data transmission and equipped with two 10/100m LAN ports, the W3500S achieves data transmission over the air for point-to-point and point to multi-point connections up to 3km transmission distance. The W3500S is designed to be simple to install and extremely reliable to use.

Features:

• Complies with IEEE 802.11a/n, 5G,300Mbps Data Rate
• 2x 10/100m LAN Port
• 500mW high power, built-in 14dBi MIMO panel antenna, stronger signal strength, more wireless coverage
• Support passive PoE
• Built-in firewall, IP filtering, URL filtering and MAC filtering
• Complies with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyser for better
  application in varying environments
• Supports DDNS, VPN pass through, Port forwarding and DMZ host
• Supports 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
• Point to point
• Point to multi-point

Specifications:

• Chipset - AR9344
• Dram - DDR2 64MB
• Flash - 8MB
• Interface - 10/100Mbps LAN x2
• Data Rate - 11a:54M,48M,36M,24M,18M,12M,9M,6Mbp11n:7.2M,14.4M,21.7M,28.9M,43.3M,57.8M,65M,72.2M,14.4M,
  28.9M,43.3M,57.8M,86.7M,115.6M,130M,144.4Mbps 433Mbps
• Transmission Mode - DSSS
• Modulation Mode - OFDM/BPSK/QPSK/CCK/DQPSK/DBPS
• Wireless Standard - IEEE802.11a, IEEE802.11n ,IEEE802.3u
• Protocol - CSMA/CA,TCP/IP,IPX SPX, NetBEUI, DHCP, NDIS3, NDIS4, NDIS5
• Frequency - 4900~6100MHz
• Power Consumption - ≤3W
• Power - PoE 24V 1A (Default), PoE 48V 0.5A (Optional)
• Sensitivity - 802.11a: 6Mbps ≤ -89, 54Mbps ≤ -68802.11n:
  HT20 – MCS 0 ≤ -86; MCS 7 ≤ -68
  HT40 – MCS 0 ≤ -83; MCS 7 ≤ -65
• Antenna - Frequency: 5180~5825MHz
  Polarisation Direction: Vertical
  DB: 14 dBi
• RF @25°C ±2dB - 802.11a:
  6-24Mbps: 19±2dBm 36-
  48Mbps: 19±2dBm
  54Mbps: 19±2dBm802.11n:
  HT20 –
  MCS 0-3: 17±2dBm
  MCS 4: 17±2dBm
  MCS 5: 17±2dBm
  MCS 6: 17±2dBm
  MCS 7: 17±2dBmHT40 –
  MCS 0-3: 16±2dBm
  MCS 4: 16±2dBm
  MCS 5: 16±2dBm
  MCS 6: 16±2dBm
  MCS 7: 16±2dBm
• Management - WEB management: Supports
  Telnet: Supports
  Serial: Supports
• Security - MAC control: Supports
  Encryption: WEP Encryption 64/128bits,WPA,WPA2,802.1x
• Environment Conditions - Working: -30~65°C
  Storage: -50~80°C
  Humidity: ≤95% (Non-condensing)
• Dimensions - 310 x 95 x 75 mm
• Weight - 0.45kg
