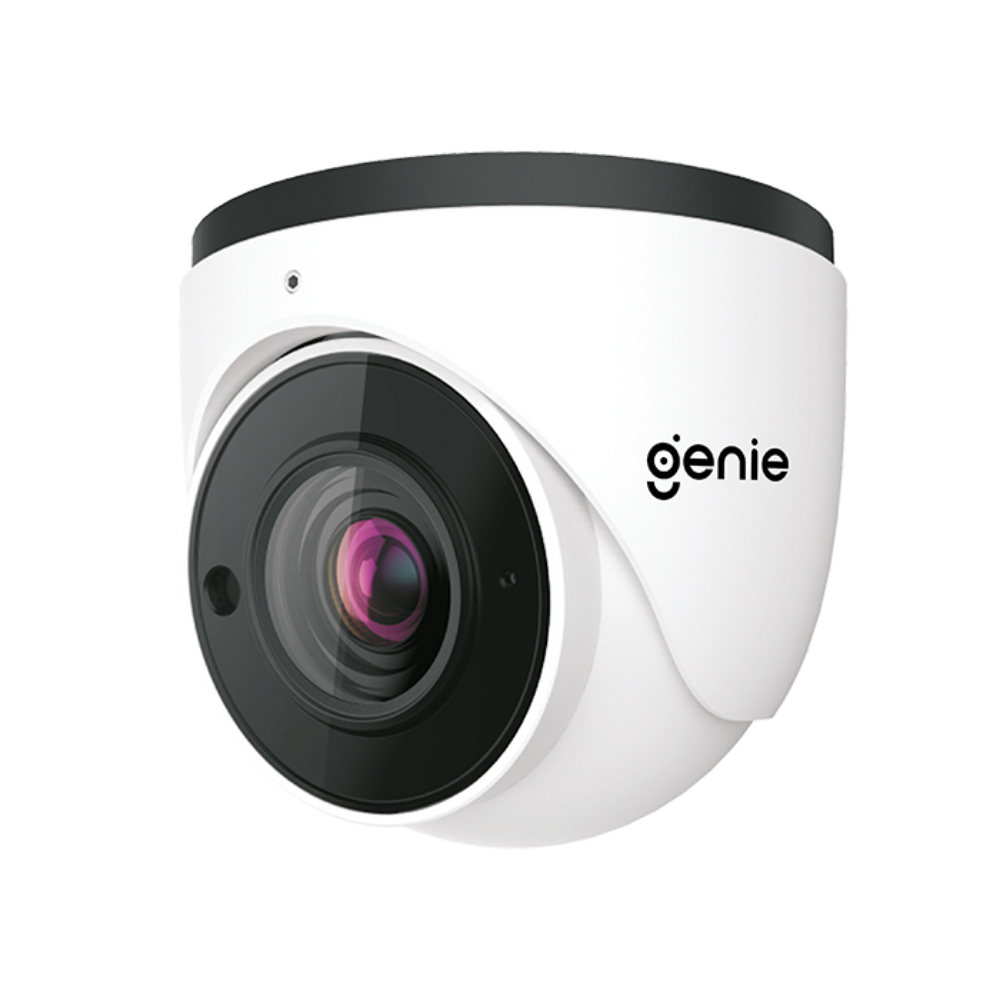

WIPX8NVDVAF

Features:

• NDAA Compliant
• H.265+/H.265/H.264+/H.264/MJPEG
  coding
• Maximum resolution: 8MP (3840 × 2160)
• ICR auto switch, true day / night vision
• 30 ~ 50m IR night view distance
• Motorised zoom lens
• 3D DNR, true WDR, HLC, BLC, Defog, Smart
  IR and ROI coding
• Support image distortion correction
• Built-in micro SD card slot up to 256GB
• DC12V/PoE power supply
• IP67 & IK10 ingress protection
• Supports three streams
• Intelligent analytics
• Supports remote monitoring by smart
  phones & tablet PCs with iOS and Android OS

Specifications:

• Weight - 1.2 kg
• Image Sensor - 1 / 2.8” CMOS
• Image Size - 3840 × 2160
• Electronic Shutter - 1 s ~ 1 / 100000 s
• Iris Type - DC Iris
• Minimum Illumination - 0.01 lux @ F1.2, AGC ON; 0 lux with IR 0.015 lux@F1.4, AGC ON; 0 lux with IR
• Lens - 2.8~12mm @ F1.4, motorised
• Lens Mount - Φ14
• Field of View - Horizontal: 97°~31.8°,
  Vertical: 53°~19°, Diagonal: 108°~36°
• Day & Night - ICR
• Wide Dynamic Range - 120dB
• BLC - Yes
• HLC - Yes
• Defog - Yes
• Digital NR - 3D DNR
• Angle Adjustment - Pan: 0°~345°, Tilt:0°~77°, Rotation: 0°~345°
• Remote Monitoring - Web browsing / CMS remote control
• Web Browser - IE (plug-in required) / Google Chrome / Edge / Firefox / Safari
• Online Connection - Supports simultaneous monitoring for up to 10 users. Supports multi-stream real time transmission
• Network Protocol - UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, FTP, PPPoE, DDNS, SMTP,SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS
• Interface Protocol - Onvif compatible
• Intelligent Analytics - Line crossing, Region entrance / exiting /intrusion (human / motor vehicle / non-motor vehicle classification), Scene change, video blur and video cast detection, Face recognition and face capture
• Smart Alarm - Motion detection, Sensor detection, SD card error, SD card full, IP conflict, cable disconnection
• General Function - Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction, etc.
• PoE - Yes, IEEE802.3af
• IR Distance - 30~50m
• Video Compression - Main stream: H.265+ / H.265 / H.264+ / H.264
  Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
  Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• H.264 Compression Standard - Baseline Profile / Main Profile / High Profile
• Resolution - 8MP ( 3840 × 2160 ), 6MP( 3072 × 2048), 5MP( 2592 × 1944), 4MP(2592 × 1520), 2K (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240
• Main Stream - 60Hz : 8MP/6MP/5MP/4MP/2K/3MP/10 80P/720P(1~30fps)
  50Hz : 8MP/6MP/5MP/4MP/2K/3MP/10 80P/720P(1~25fps)
  HFR Mode: 1080P/720P(60Hz: 1~60fps; 50Hz: 1~50fps)
• Sub Stream - 720P/D1/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps)
• Third Stream - D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps)
• Bit Rate - 64 Kbps ~ 12 Mbps
• Bit Rate Type - VBR / CBR
• Audio Compression - G711A / U
• Image Settings - ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR,etc. Adjustable through client software or web browser
• ROI - Each ROI to be configured separately
• Network - RJ45
• Video Output - CVBS Output (BNC x 1)
• Audio - 1CH audio input, 1CH audio output, 1CH built-in MIC
• Alarm - 1CH alarm input, 1CH alarm output
• Storage - Built-in micro SD card slot, up to 256GB
• Hardware Reset - Yes
• Ingress Protection - IP67 & IK10
• Power Supply - DC12V / PoE
• Power Consumption - < 10.5W
• Operating Environment - – 30 °C ~ 60 °C (-22 °F~140°F) Humidity: Less than 95 % (Non- Condensing)
• Dimensions - 141 × 100.2 mm
• Weight - Approx. 0.89 Kg
• Installation - Ceiling mounting; Wall mounting
