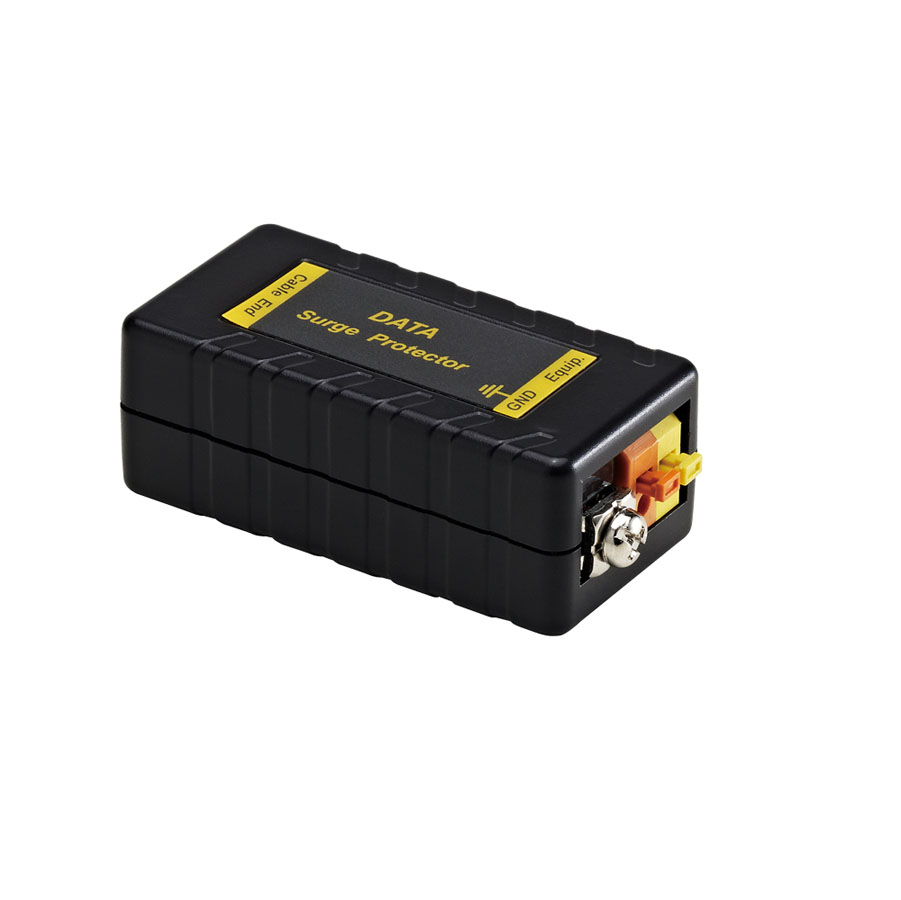

CAT-5e surge protection

Product ID 15-SP04D

CAT-5e surge protection

Price: £15.99 (£19.19 Inc. VAT)

+

-

« Previous | Next »

Passive filter
Protect a CCTV system from voltage surges
1x terminal in, 1x terminal out
For use with CAT-5e cable
Invisible to video signals
Size: 25 x 25 x 74mm
Product Type: Cat5e Surge Protector
Connections: 1x Data Terminal In, 1x Data Terminal Out, 1x Ground Terminal
Surge Protection Attack Time: 100ns
Maximum Surge Current: 5000A
Surge Life: 300 Surges of 100 Amps
Normal Resistance Across Coax: 10,000 Mohm
Surge Resistance: Approx 0Ohm
Power Passing Capability: DC 5Vm
Insertion Loss: Less than 0.2dB
Return Loss (75 ohms): 16dB
Over Current Protection: 120mA (Max)
Dimensions: 61x31x23mm
Weight: 35g
