Surge Protector T/Strip - Easy Fit

Product ID CON753
Price: £19.99 (£23.99 Inc. VAT)
+
-
  • Protects Expensive Equipment
  • Easy to Fit
  • Great Value
  • Keep in your Toolbox
  • 1 Year Warranty

It's a true fact that people and equipment can be killed by lightning. In CCTV installations, long cable runs to camera and equipment act like massive antennae ready to be struck by lightning. If lightning does strike one of these cable runs, it can quite easily destroy the delicate CCTV equipment. One way to protect against this is to use a surge protector. These work by channelling any high voltage spikes or surges down to ground rather than through the CCTV equipment. Ideally a surge protector should be fitted at both ends of a cable run to protect both the camera and the control equipment. This unit is designed a terminal strip connection for use with most installations.

Input Connection

  Screw Terminal
No of Inputs 1
Type of Input Video
Output Connection Screw Terminal
No of Outputs 1
Type of Output Video
Video Out 1 Volt peak-peak 75 Ohm
Capability Colour or B&W
Max Current Surge 5000 Amps
Insertion Loss Less than 0.2dB
Mount Wall
Case Black
Dimensions L68mm x W25mm x D25mm



Product Reviews
No Reviews For This Product.

Recommended products

RG59 video surge protector
Price£15.99 (£19.19 Inc. VAT)
CAT-5e surge protection
Price£15.99 (£19.19 Inc. VAT)
Genie Coaxial Surge Protection Device BNC Male to BNC Female
Price£19.99 (£23.99 Inc. VAT)
Genie Coaxial Surge Protector
Price£21.99 (£26.39 Inc. VAT)
RG59 & CAT-5e video & data surge protector
Price£23.99 (£28.79 Inc. VAT)
Genie Video & Data Surge Protector
Price£29.99 (£35.99 Inc. VAT)
Genie Twisted Pair Surge Protector
Price£29.99 (£35.99 Inc. VAT)
Genie PoE Surge Protector
Price£29.99 (£35.99 Inc. VAT)

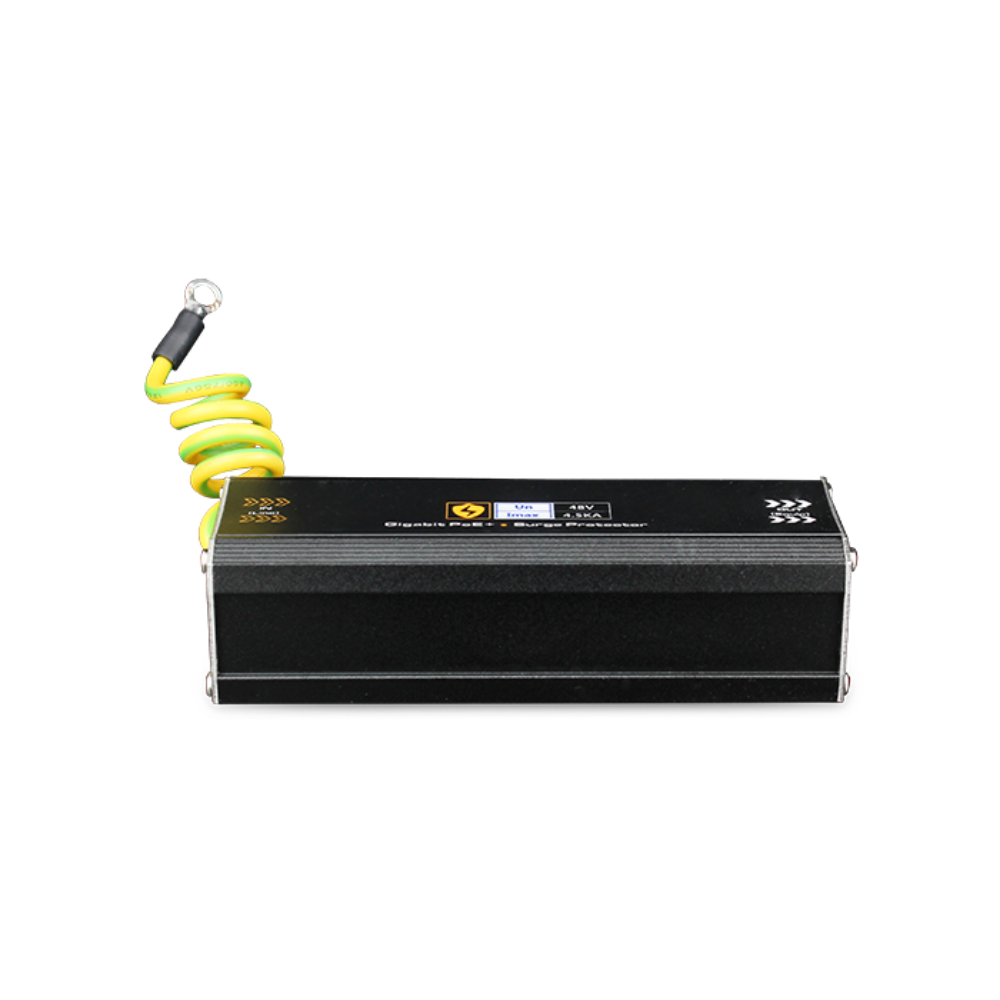

Genie Gigabite PoE Surge Protector - 10 / 100 / 1000 Mid / End Span
