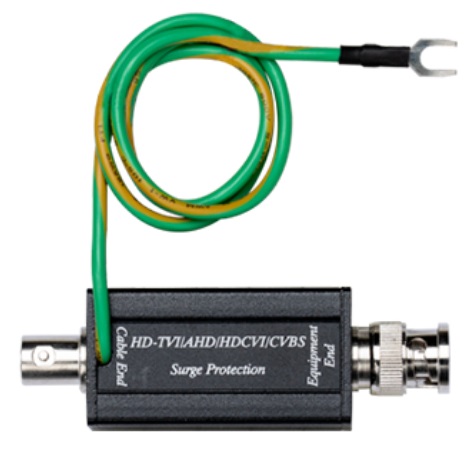

The Genie GSP01HD is a surge protector designed to protect HD-TVI, AHD, HDCVI, CVBS devices from high voltage surges.

Features:

• Resolution up to 4K (8MP)
• Built-in BNC connectors
• Response time less than 1 ns

Specifications:

• Weight - 0.07 kg
• Compliance - IEC 61000-4-5
• Response Time - Less than 1ns
• ESD Protection - 15KV(Air),8 KV (Contact)
• Lightning Protection - 2KA (8/20μs)/6KV (8/20μs)
• Insertion Loss - 0.8db @ 42 MHz
• Maximum Discharge Current - 15 KA
• Maximum Clamping Voltage - 25V
• Starting Voltage Surge - 6V
• Equipment End - 1 x BNC Male
• Cable End - 1 x BNC Female
• Operation Temperature - -20°C ~ 55°C
• Storage Temperature - -20°C ~ 85°C
• Humidity - 0~95%
• Dimensions - 79.3 x 25.4 x 25.4mm
• Weight - 75g
