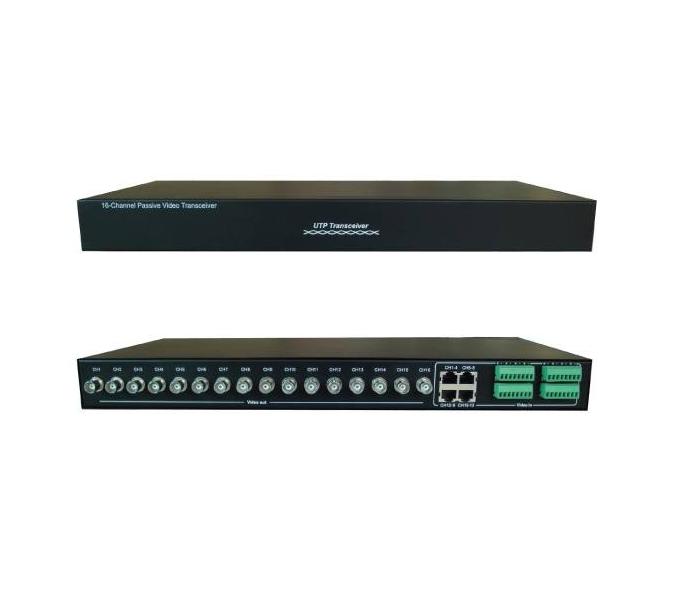

HD-TVI, CVI, AHD 16CH Passive Balun 200m Transmission Range

Versatile Analogue 16ch passive balun has both RJ45 sockets and screw terminals for maximum flexibility

• Passive No Power Required
• 4 x RJ45 Sockets
• Transient Suppression
• Use with Analogue or HD-TVI, CVI, AHD
• Screw Terminals
• Up To 200m Range
• 19 inch 1U Rack Mount Design
• Up to 16 Video Inputs
• Baluns contain small signal transformers that are specially tuned to match the cables impedance and convert the unbalanced signal to a balanced one in fact PASSIVE baluns just have the transformers and very little else in them.
• On some PASSIVE baluns that carry video and data signals, the data “terminals” do not go through a transformer or any other electronics and are a direct electrical connection to the CAT5 cable. These “terminals” can be useful for lots of purposes including sending low voltage (5 or 12V) from one balun to another.
• The new ZENDit range of baluns have built in QUAD technology that make them compatible with both analogue and HD (TVI, CVI & AHD) video signals
• 1 Year Warranty

• No of Video Inputs 16
• Video Input Connection BNC Socket (Female)
• CAT V Output Connection Terminal Strip & RJ45 Sockets
• No of Video Outputs 16
• Max TX Distance 200 Mtrs
• Video Bandwidth 60 MHz
• Power Passive (Not Required)
• Dimensions 430 x 180 x 44mm
