50 Metre Plug & Play Cat5e Cable - RJ45 Connector

• Available in 8 circuits (4 twisted pairs)
• Standard wires colours: Blue/Blue-white, Orange/Orange-white, Green/Green-white and Brown/Brown-white
• Solid wire (AWG 24/1)
• HDPE insulator
• PVC jacket
• Frequency:Maximum 100MHz
• Operating temperature:-200c to +750c
• Electrical Features:
• DC-Loop resistance:≤0.095Ω/m
• Propagation speed:0.64
• Propagation delay:4.80-5.30 ns/m
• Delay skew < 100MHz <0.20 ns/m
• Capacitance:5,6 Nf/100M
• Return Loss(Min.at 250MHz):15.60 dB
• Attenuation:(Min.at 250MHz):39.40 dB
• Meet EIA/TIA 568 B.2,EN 50173-1,ISO/IEC 11801
• 1 Year Warranty

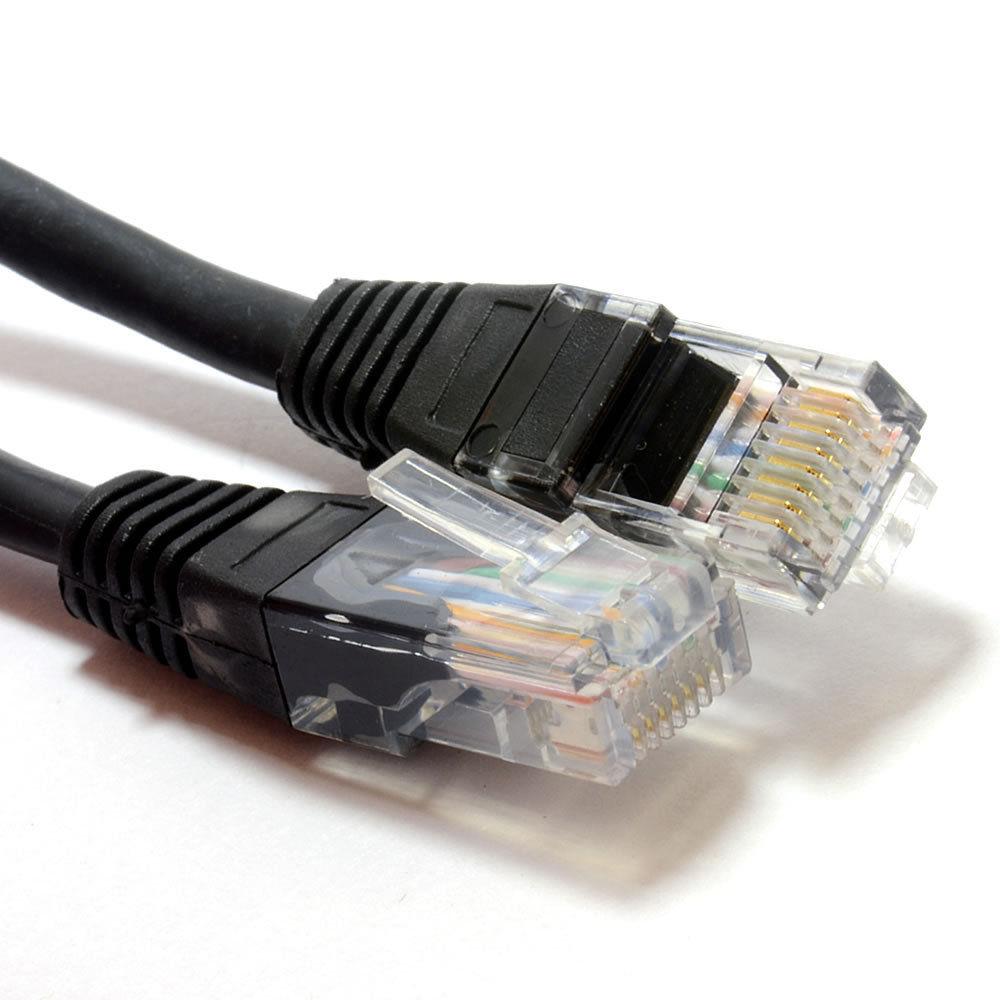

This is a 50 metre black Cat5e patch cable terminated at each end with a RJ45 connector
