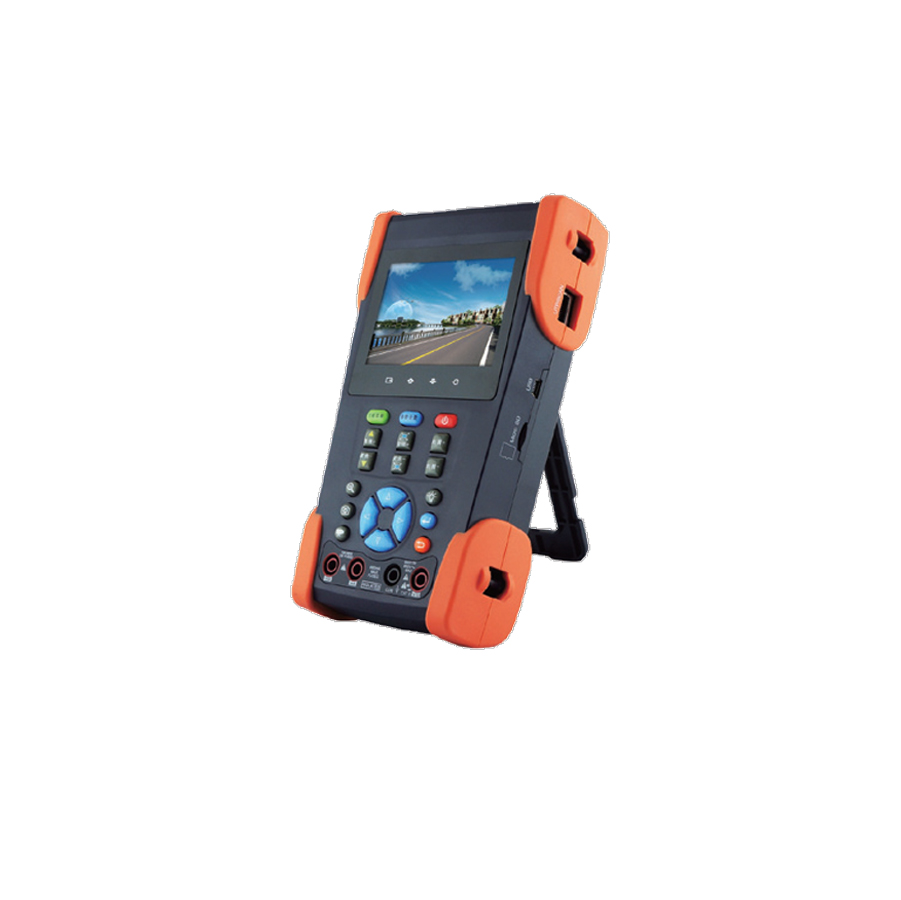

We're really sorry... We don't currently have that one in stock Please add your email and we'll notify you when it's back Email Home» Accessories» Tools & Installation Aids 3.5 INCH IP-HDCVI Test Meter With Touch ScreenProduct ID DA-NU35CPrice: £349.99 (£419.99 Inc. VAT)+- Add to cart« Previous | Next »DA-NU35C 3.5 Inch TFT-LCD Touch Screen Built-in WiFi, 10/100M Lan Port Supports CVI Camera Test Supports ONVIF Camera Test Support More Than 70 Customized IP Camera Protocols ONVIF PTZ Control Video level meter, PEAK level, SYNC level and color burst measurement PING, IP address scan, Port finder and link test Audio in/out, recording and storage Check the output voltage of POE ports 3 Year Warranty SPECIFICATION Model Number: DA-NU35C MAIN SPECIFICATION Display: 3.5" Touch Screen Display Resolution: 480 x 320 Network Port: 10/100 Auto Adaptive, RJ45 CVI Camera Test: Supports resolutions 720P 25fps, 30fps, 50fps, 60fps / 1080P 25fps, 30fps, Camera OSD menu control over coaxial cable. WiFi: Built in WiFi 150Mbps Supported IP Camera Protocols: Onvif, Acti, Dahua, Hikvision, Samsung, Tiandy, Kodak, Honeywell, Aipuwaton, Finetida, Weisky Video In/Out: 1x BNC Input, 1x BNC Output Video Level Test: Video Signals measured in IRE or mV Zoom Image: Support analogue camera and IP camera digital zoom Snapshot, Video record and Playback: Image screen snapshot, record, save, view, record and playback Power Output: 1x 12v DC 1A Audio Test: 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone. PTZ Control: Support RS232/RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as Pelco-D/P, Samsung, Panasonic, Lilin, Yaan Colour Bar Generator: Output one channel PAL/NTSC colour bar video signal for testing monitor or video cable UTP Cable Tester: Test UTP cable connection status and display on the screen. Read the number on the screen. Data Monitor: Captures and analyzes the command data from controlling device Network Test: Scan, Link Monitor, Ping Tests, IP Search POE Test: Measure POE switch or PSE power supply voltage and cable status POWER External PSU: DC 5v 1.5A Battery: Built in 3.7V Lithium polymer battery, 3500mAh Charge Time: 3 ~ 4 hours Run Time: 8 Hours PARAMETER Operation Setting: Touch Screen, OSD Menu Auto Power Off: 1 ~ 30 mins GENERAL Working Temperature: -10°C~50°C Working Humidity: 30% ~ 90% Dimensions: 194 x 112 x 48mm Weight: 540g Product ReviewsNo Reviews For This Product.Click to review this product
