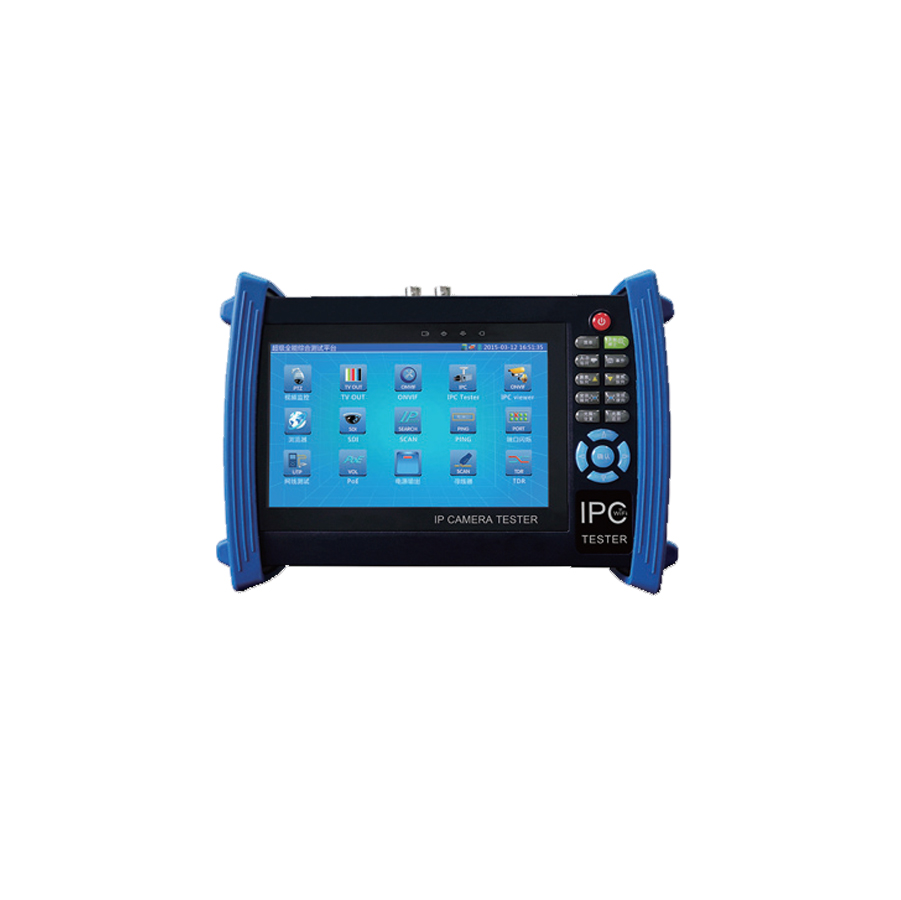

We're really sorry... We don't currently have that one in stock Please add your email and we'll notify you when it's back Email Home» Z - Listed for support Cop 7 Inch IP + HDCVI Test Meter With Touch ScreenProduct ID DA-NU70CPrice: £549.99 (£659.99 Inc. VAT)Notify when back in stock« Previous | Next »DA-NU70C 7 inch TFT-LCD touch screen Built-in WiFi, 10/100M Lan Port Support HDCVI camera test Support ONVIF camera test Support more than 80 customized IP camera protocols Analog video level meter HDMI output, 1920x1080P resolution PING, IP address scan, Port finder and Link test Audio in/out, recording and storage Output color bars and the testing image 48v PoE output 3 Year Warranty SPECIFICATION Model Number: DA-NU70C MAIN SPECIFICATION Display: 7" Touch Screen Display Resolution: 1024 x 600 Network Port: 10/100 Auto Adaptive, RJ45 CVI Camera Test: Supports resolutions 720P 25fps, 30fps, 50fps, 60fps / 1080P 25fps, 30fps, Camera OSD menu control over coaxial cable. WiFi: Built in WiFi 150Mbps Supported IP Camera Protocols: Onvif, Acti, Dahua, Hikvision, Samsung, Tiandy, Kodak, Honeywell, Aipuwaton, Finetida, Weisky Video In/Out: 1x BNC Input, 1x BNC Output Video Level Test: Video Signals measured in IRE or mV Video Level Meter: Peak Video signal level, SYNC signal level, Colour bar chroma level measurement Zoom Image: Support analogue camera and IP camera digital zoom Snapshot, Video record and Playback: Image screen snapshot, record, save, view, record and playback HDMI Output: 1 channel HDMI output, support 1920 x 1080P Power Output: 1x 12v DC 2A, 1x 5v DC 2A POE Power Output: 48v POE power output, Max power 24W Audio Test: 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone. PTZ Control: Support RS232/RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as Pelco-D/P, Samsung, Panasonic, Lilin, Yaan Colour Bar Generator: Output one channel PAL/NTSC colour bar video signal for testing monitor or video cable UTP Cable Tester: Test UTP cable connection status and display on the screen. Read the number on the screen. Data Monitor: Captures and analyzes the command data from controlling device Network Test: Scan, Link Monitor, Ping Tests, IP Search Cable Scan: Search the cable by the audio signal POE Test: Measure POE switch or PSE power supply voltage and cable status POWER External PSU: DC 12v 2A Battery: Built in 3.7V Lithium polymer battery, 6500mAh Charge Time: 7 ~ 8 hours Run Time: 15 Hours (POE use may reduce run time) PARAMETER Operation Setting: Touch Screen, OSD Menu Auto Power Off: 1 ~ 30 mins GENERAL Working Temperature: -10°C~50°C Working Humidity: 30% ~ 90% Dimensions: 231 x 172 x 52mm Weight: 1.26Kg Product ReviewsNo Reviews For This Product.Click to review this product
