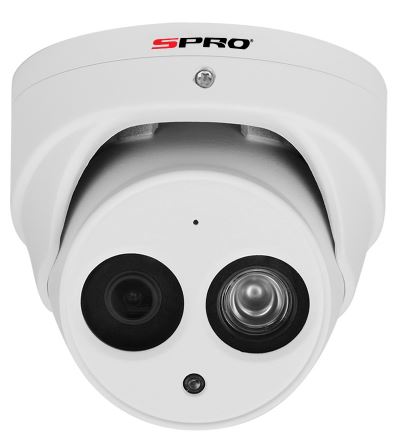

SPRO 6MP IP Fixed Lens Vandal Resistant Dome

DHIPD60-28RV-G:

• The DHIPD60/28RV-G is a grey 6MP IP vandal resistant camera. Also available in white.

• Model Number:DHIPD60/28RV-G
• Image Sensor:1/2.9” 6 Megapixel progressive scan CMOS
• Effective Pixels:3072(H) X 2048(V)
• Scanning System:Progressive
• Electronic Shutter Speed:Auto/Manual, 1/3(4)~ 1/100000s
• Min. Illumination:0.04Lux/ F1.6 ( Color, 1/3s, 30IRE), 0.4Lux/ F1.6 ( Color, 1/30s, 30IRE) 0Lux/ F1.6 (IR on)
• S/N Ratio:More than 50dB
• 2 Year Warranty

• Lens Type:Fixed lens
• Mount Type:Board-in
• Focal Length:2.8mm
• Max. Aperture:F1.6
• Focus Control:Fixed
• Angle of View:H:98°, V:67°

• IVS:Tripwire, Intrusion, Object Abandoned/ Missing
• Advanced:Intelligent
• Functions:Face Detection

• Compression:H.265+/ H.265/ H.264+/ H.264
• Streaming Capability:3 Streams
• Resolution:(3072×2048)/ (3072×1728)/ (2592×1944)/ (2688×1520)/ (2560×1440)/ (2304×1296)/ 1080P (1920×1080)/ SXGA (1280×1024)/ 1.3M (1280× 960)/ 720P (1280×720)/ D1 (704×576/ 704×480)/ CIF (352×288/ 352×240)
• Frame Rate-Main Stream:6MP (1~20fps), 4MP (1~25fps)
• Frame Rate-Sub Stream:D1 (1 ~ 25fps)
• Frame Rate-Third Stream:1080P (1~25fps)
• Bit Rate Control:CBR/VBR
• Bit Rate:H.265: 14K ~ 9984Kbps / H.264: 24K ~ 10240Kbps
• Day/Night:Auto(ICR) / Color / B/W
• BLC Mode:BLC / HLC / WDR (120dB)
• White Balance:Auto/ Natural/ Street Lamp/ Outdoor/ Manual
• Gain Control:Auto/ Manual
• Noise Reduction:3D DNR
• Motion Detection:Off / On (4 Zone, Rectangle)
• Region of Interest:Off / On (4 Zone)
• Digital Zoom:16x°
• Flip:0°/ 90°/ 180°/ 270°
• Mirror:Off / On
• Privacy Masking:Off / On (4 Area, Rectangle)

• Compression:N/A

• Ethernet:RJ-45 (10/100Base-T)
• Protocol:HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
• Interoperability:ONVIF, PSIA, CGI
• Streaming Method:Unicast / Multicast
• Max. User Accessr:10 Users
• Edge Storage:Local PC for instant recording
• Web Viewer:IE, Chrome, Firefox, Safari
• Smart Phone:iPhone, iPad & Android

• Power Supply:DC12V, PoE (802.3af) (Class 0)
• Power Consumption:< 5.5W
• Working Environment:-30ºC ~ 60ºC / Less than 90% RH
• Ingress Protection:IP67
• Vandal Resistance:IK10
• Casing:Metal
• Dimensions:Φ109.9mm × 81mm (4.33" x 3.19")
• Net Weight:0.41Kg
• Gross Weight:0.53Kg
