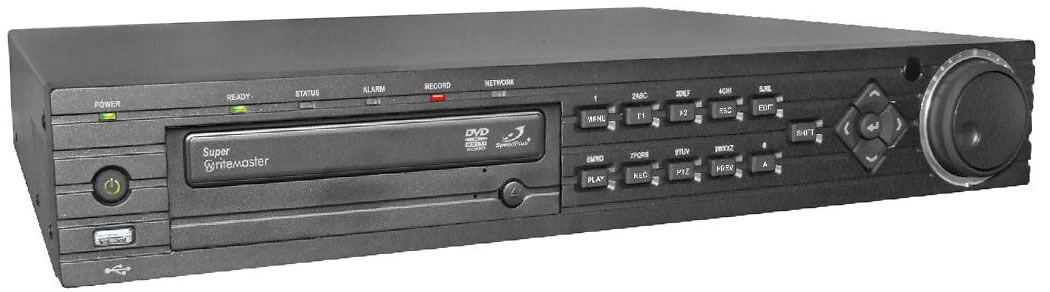

Inspire Blue 16 Channel Plus Pentaplex DVR

• 250 - 6000GB HDD options
• Built in CD / DVD drive
• High speed internet
• H.264 recording
• CIF, 2 CIF and D1 recording resolution
• Maximum record rate 400 fps
• Set the record rate FPS for each channel independently
• Set resolution for each channel independently
• Full D1 live real time display
• 1x BNC monitor out
• 1 x VGA monitor output
• 1 x Spot monitor output
• 1 x S - Video output
• 4 x Audio in, 1 x Audio out
• 4 / 8 / 16 x Alarm in, normally open or closed
• 4 x Alarm relay out
• Support for PTZ cameras via RS485 port, supports Pelco P/D
• Motion detect for each channel with sensitivity
• Support for schedule recording
• Covert camera facility
• Backup to USB memory stick using built in USB 2.0 port
• Backup to external hard drive using built in USB 2.0 port
• Backup player automatically copied with each backup
• Talkback function
• Infrared remote control
• Easy mouse control
• Built in recording time calculator
• Password protected
• Size: 440 x 365 x 70mm
• 3 Year Warranty

This 16 channel DVR supports up to 6000GB hard drive which would store over 30 weeks of footage recorded at D1 resolution. These stored images can easily be backed up on to CD / DVD when an incident occurs.

This device can be controlled using either the IR control or mouse which are also supplied with this model. Each of the 16 channels on the DVR can be setup to record independently, adjusting frame rate and resolution for each camera means hard drive space is used efficiently. For example reducing the frame rate and resolution in low risk areas will take up less valuable space on the hard drive.
