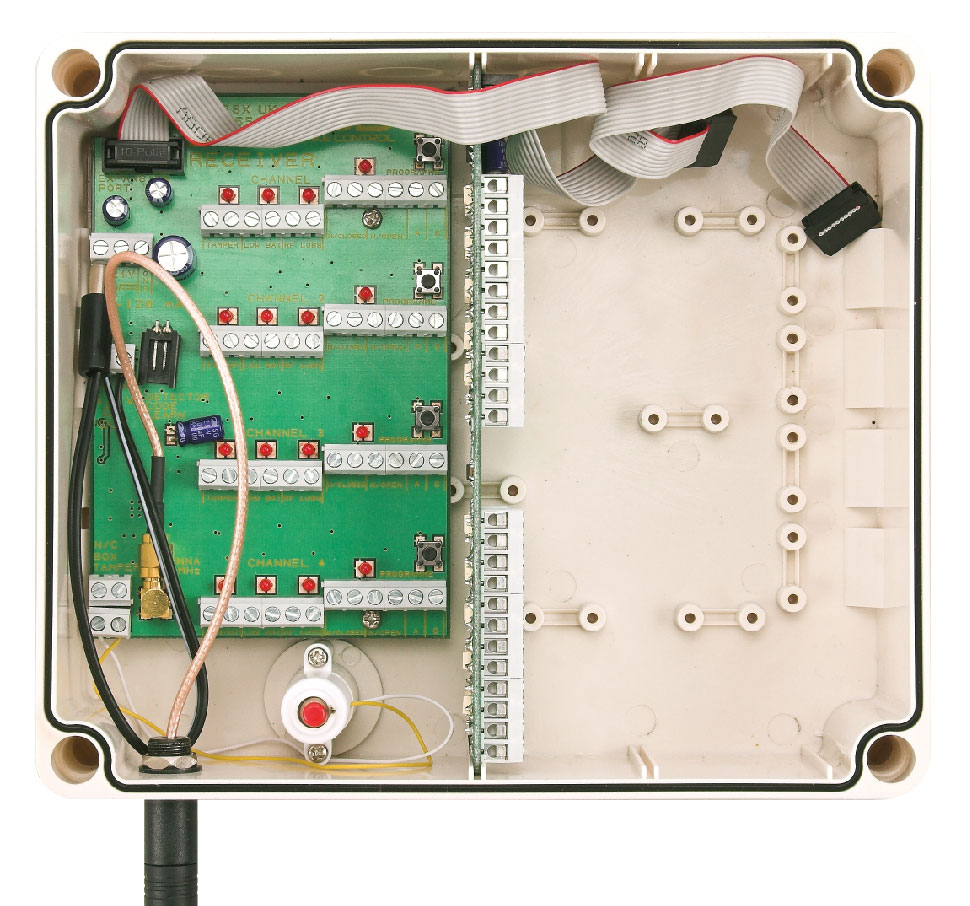

250m or 500m Wireless Receiver
The D-TECT X is a 250 or 500 metre communication range 4 channel receiver which is expandable up to 16 channels and compatible with D-TECT X & D-TECT X50 wireless detectors.
The wireless receiver can be expanded by the addition of 3 further four channel expansion modules to allow the receiver unit to monitor the active state of up to 16 wireless D-TECT X movement detectors.
| TECHNICAL SPECIFICATION: GJD392 |
| Transmission Range: |
250 metre (GJD390) or 500 metre (GJD391) line of
sight |
| Transmission Codes: |
16’700’000 |
| Power Input: |
12 – 24V AC/DC |
| Indicators (per detector): |
1 x LED on detection
1 x LED tamper
1 x LED RF loss
1 x LED low battery indication |
| Outputs (per detector): |
2 volt-free, silent solid state magnetically
immune contacts
2 neg. switched plus one common tamper (front and rear switches)
1 RF loss
1 Low battery |
| Operating Temp: |
-20°C to + 55°C. Conformally coated electronics
for increased stability |
| Protection Rating: |
IP 55 |
