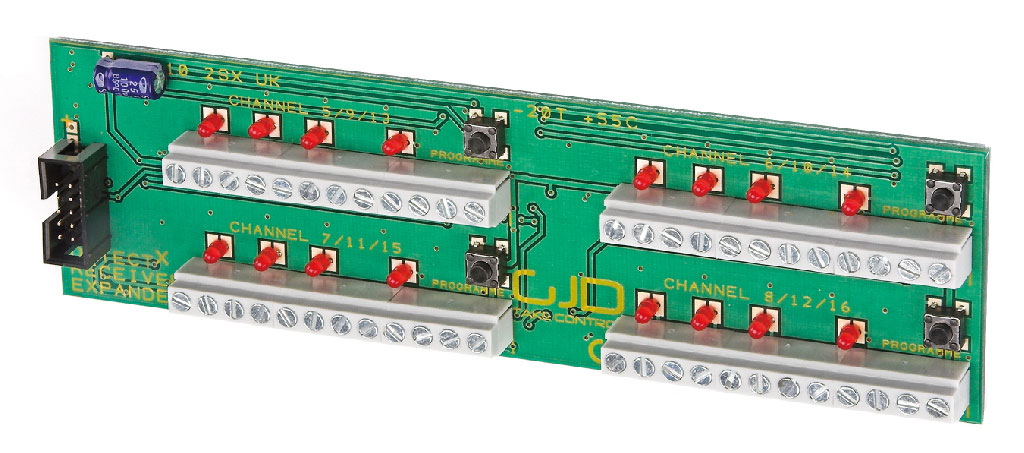

The D-TECT X4 provides an additional 4 channels for an existing D-TECT X Receiver installation. The module can be combined with two additional 4 way expansion modules to provide a maximum of 16 channels per D-TECT X Receiver.
| TECHNICAL SPECIFICATION: GJD393 |
| Transmission Range: |
250 metre (GJD390) or 500 metre (GJD391) line of
sight |
| Transmission Codes: |
16’700’000 |
| Power Input: |
12 – 24V AC/DC |
| Indicators (per detector): |
1 x LED on detection
1 x LED tamper
1 x LED RF loss
1 x LED low battery indication |
| Outputs (per detector): |
2 volt-free, silent solid state magnetically
immune contacts
2 neg. switched plus one common tamper (front and rear switches)
1 RF loss
1 Low battery |
| Operating Temp: |
-20°C to + 55°C. Conformally coated electronics
for increased stability |
| Protection Rating: |
IP 55 |
