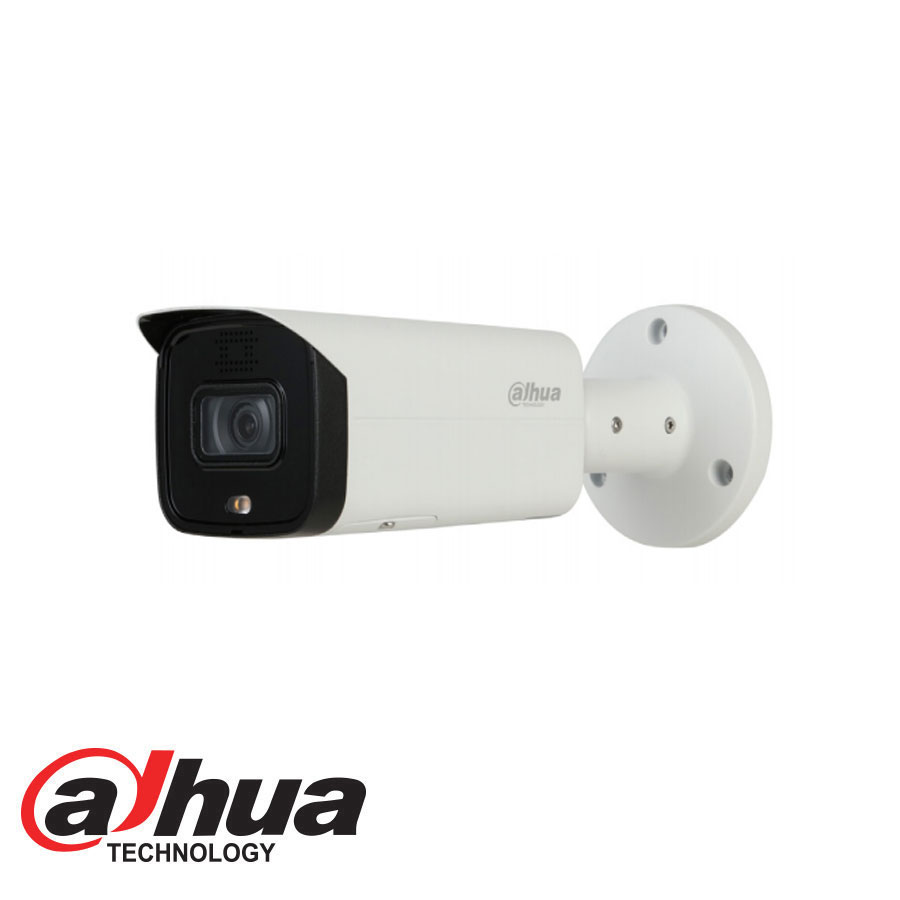

Dahua 5MP Starlight 2.8MM Fixed Lens

Key Features

• 2.8mm Fixed Lens
• 1/2.7" 5MP Progressive Scan CMOS
• H.265+
• 20fps @ 5MP
• Smart Features Incl: Tripwire, Intrusion, Abandoned/Missing, SMD
• SMD+
• 1x Audio In, 1x Audio Out
• 1x Alarm In, 1x Alarm Out
• Active Deterrence with White Light & Siren
• 60m IR Range
• PoE
• Micro SD Card Support
• WDR
• Size: 244 x 79 x 75mm

SPECIFICATION

• Model Number: IPC-HFW5541T-AS-PV-280

CAMERA

• Image Sensor: 1/2.7" 5MP Progressive Scan CMOS
• Effective Pixels : 2592 x 1944
• RAM/ROM: 512MB/128MB
• Scanning System: Progressive
• Electronic Shutter Speed : Auto/Manual
• Minimum Illumination: 0.01273Lux/F1.6 (Colour, 1/3s, 30IRE) 0.09276Lux/F1.6 (Colour,
• 1/30s, 30IRE) 0Lux/F1.6 (IR on)
• IR Distance: <20m
• IR Control: Auto/Manual
• IR LEDs: 3

LENS

• Lens Type: Fixed
• Mount Type: Board-in
• Focal length: 2.8mm
• Max. Aperture: F1.6
• Angle of View: H:102°, V:71°
• Optical Zoom: N/A
• Aperture Type: Fixed
• Close Focus Distance: 0.9m
• DORI Distance : Detect: 56m, Observe: 22m, Recognise: 11m, Identify:6m

PAN/TILT/ROTAION RANGE

• Pan/Tilt/Rotaion Range : Pan: 0~360°; Tilt: 0~90°; Rotation: 0~360°

ARTIFICIAL INTELLIGENCE

• Perimeter Protection: Tripwire, Intrusion (Human & Vehicle classification)
• People Counting: Line crossing people counting, Region people counting, Loitering Filter
• Face Detection: N/A

GENERAL INTELLIGENCE

• Event Trigger : Motion, Tampering, Scene Change, Net Disconnect, IP conflict, Illegal
• Access, Storage anomaly
• General Intelligence: Abandoned/missing

VIDEO

• Compression: H.265/H.264/H.264H/H.264B/MJPEG (sub stream)
• Streamng Capability: 3 Streams
• Resolution: 5MP, 4MP, 3MP, 2MP, 1.3MP, 720P, D1, CIF
• Frame Rate : Main Stream: 5MP@20fps Sub Stream: D1@25/30fps Third Stream:
• 1080P@13fps
• Bit Rate Control: CBR/VBR
• Bit Rate: H.264: 32~8192Kbps H.265: 19~8192kbps
• Day/Night : Auto(ICR) / Colour / B/W
• BLC Mode : BLC / HLC / WDR(120dB)
• White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
• Gain Control: Auto / Manual
• Noise Reduction : 3D DNR
• Motion Detection : Off / On
• Region of Inferest (ROI): Off / On
• Smart IR : Support
• Flip: 0°/90°/180°/270°
• Mirror: Off / On
• Privacy Masking: Off / On

AUDIO

• Compression: G.711a/G.711Mu/G.726/AAC/G.723

NETWORK

• Ethernet: RJ-45 (10/100Base-T)
• Protocol: HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP, SMTP; FTP; DHCP; DNS; DNS; PPPoE;
• IPv4/v6; SNMP; QoS; uPnP; NTP
• Interoperability : ONVIF (Profile S/G), CGI, Milestone, Genetec, P2P
• Streaming Method : Unicast/Multicast
• Max. User Access : 20 Users
• Edge Storage : NAS, FTP, Micro SD (256GB)
• Web Viewer: Internet Explorer, Chrome, Firefox, Safari (versions newer than Safari 12)
• Management Software : Smart PSS, DSS, P2P
• Smart Phone : IOS, Anrdoid

INTERFACE

• RS485: N/A
• Alarm : 1 channel in: 5mA 5VDC 1 Channel out: 300mA 12VDC
• Audio Interface : 1/1 In/Out

ELECTRICAL

• Power Supply: DC12V, PoE(802.3af)
• Power Consumption: DC12V: 2.1W / 7.2W(IR on) PoE: 2.7W / 8.5W(IR on)

ENVIRONMENTAL

• Operating Conditions : -30°C to +60°C
• Storage Conditions : -30°C to +60°C
• Ingress Protection : IP67

CONSTRUCTION

• Casing : Metal
• Dimensions : 244.1 x 79.0 x 75.9mm
• Net Weight: 0.815kg
• Gross Weight : 1.08kg
