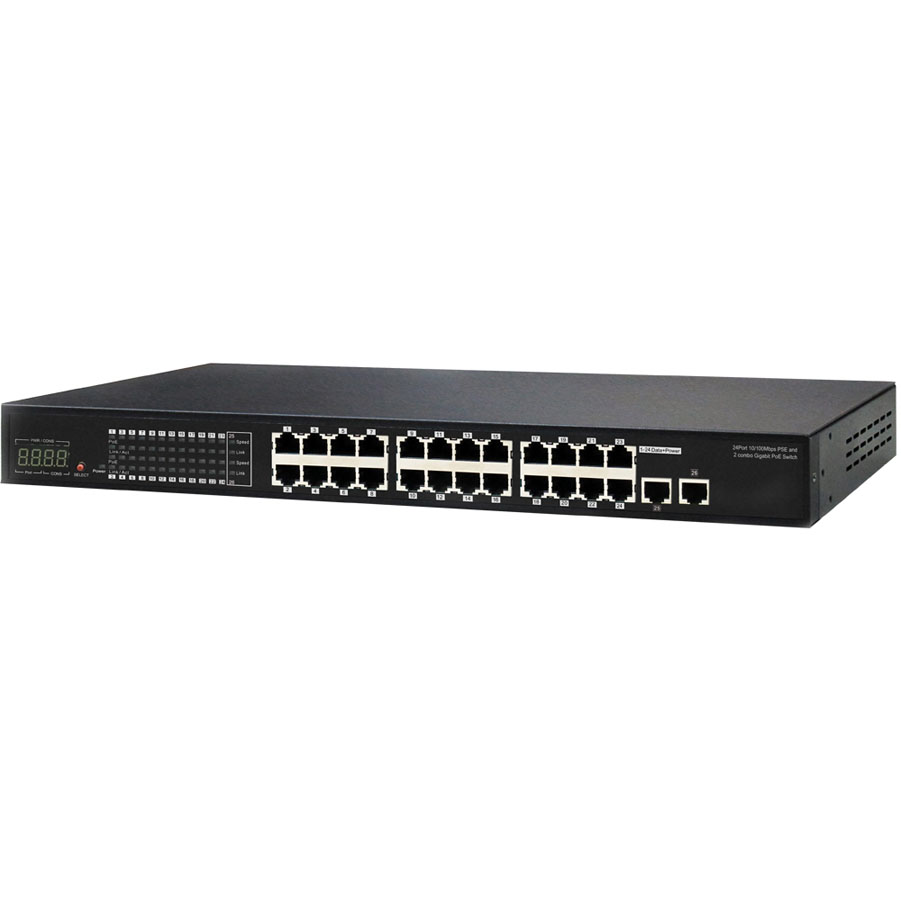

24 Port 10-100 & 2x 1GB PoE+ Switch

Product ID LW-5242U

Price: £613.85 (£736.62 Inc. VAT)

« Previous | Next »

24 Port PSE/PoE+ function
Supports up to 30W per port
24 Port 10/100Mbps
2 Port 10/100/1000Mbps
Compatible with IEEE 802.3X
200Mbps full duplex bandwidth
All ports support Auto-MDIX function
Auto-learning networking config
Status LED's
AC 380W
PSU included
Size: 440 x 325 x 44mm
Model Number: LW-5242U
Product Type: 24 Port POE Switch with 2 Port 1Gbps RJ45
Network Speed: 24x 10/100Mbps 2x 10/100/1000Mbps
Network Standard: IEEE 802.3 10-Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX
POE Standard: IEEE 802.3af class3/class 2/class 1 and IEEE802.3at
Individual POE Port Limit: 30W
Connections: 24x RJ45 POE Ports, 2x RJ45 Ethernet Ports, IEC Power Input
Auto-MDIX: Yes
Storm Control Support: Yes
Filtering/Forwarding Rate: 1000Mbps/1,488,000pps; 100Mbps/148,800pps; 10Mbps/14,880pps
Full Duplex Bandwidth: Yes - 100Mbps Upstream 100Mbps Downstream
Features: Auto learn, 4K MAC table, 2.75M bits buffer memory, up to 1536 packet length, Non-blocking & Non-head-of-line blocking full-wire speed forwarding, Status Leds: System Power, Link/Activity and POE/PSE online.
Power Input: 90~260VAC 50~60Hz 380W
Operating Temperature: 0°C~+40°
Storage Temperature: -20°C~+90°
Dimensions: 440x325x44mm
Weight: 5.0Kg

Product Reviews

No Reviews For This Product.

This product is listed for support only
