High Load Capacity 8 Port POE Gigabit Switch

• Gigabit Uplink and Downlinks
• SFP Fibre Uplink Options
• Can Extend PoE up to 250m**
• Up to 300W Per Device & 30W per Port
• Port Isolation
• PoE++ 90W Ports*
• VLAN for Added Security*
• Built-in Power Supply
• 1 Year Warranty

ScatterBox Gigabit PoE switches have been specifically tailored for powering and connecting IP CCTV cameras to a network thanks to their high speed capacity and high load capacity.

*VLAN available on 4 port, and 8 port models.

** On selected models, Extended PoE up to 250M. Note this will lower the bandwidth of that port to 10Base-T (10Mbps).

ScatterBox Gigabit PoE switches have been specifically tailored for powering and connecting IP CCTV cameras to a network thanks to their high speed capacity and high load capacity.

Not just a distributor, they work in 2 directions firstly by taking a network connection input and distributing power across its 4, 8 or 24 ports to connected IP cameras or devices but in reverse too by carrying the video signal from all the connected cameras back into a single network cable for reproduction elsewhere on the network.

The units add extra flexibility to a network infrastructure thanks to 100 metre run capabilities both in and out of them.

*These PoE switches feature PoE++ ports (90W):

• POE604 - Port 1 PoE ++ 90W; Ports 2 - 4: 30W.
• POE608 - Port 1 PoE ++ 90W; Ports 2 - 8: 30W.
• POE624 - Ports 1 and 2 PoE ++ 90W; Ports 3 - 24: 30W.

Feature Packed Gigabit Switches!

• Gigabit Speeds - Up to 1GB for fast transmission of data over the network
• High Load Capacity - Up to 300W per device and up to 30W per port
• SFP Fibre Ports - For super fast 1GB data speeds over fibre optic cable (POE624 Only)
• Virtual LAN (VLAN) - Extra security as downlinks can only talk to the uplinks and not each other
• Multiple Uplinks - Connect to more upstream devices such as NVRs and Routers simultaneously

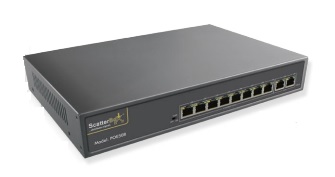

8 Port Switch - POE608

A 10 port Gigabit switch, 2 up links and 8 down links; ideal for connecting directly to an NVR for a local system or for networking via a router.

Each RJ45 port can supply up to 30W individually or 120W over the whole unit.
