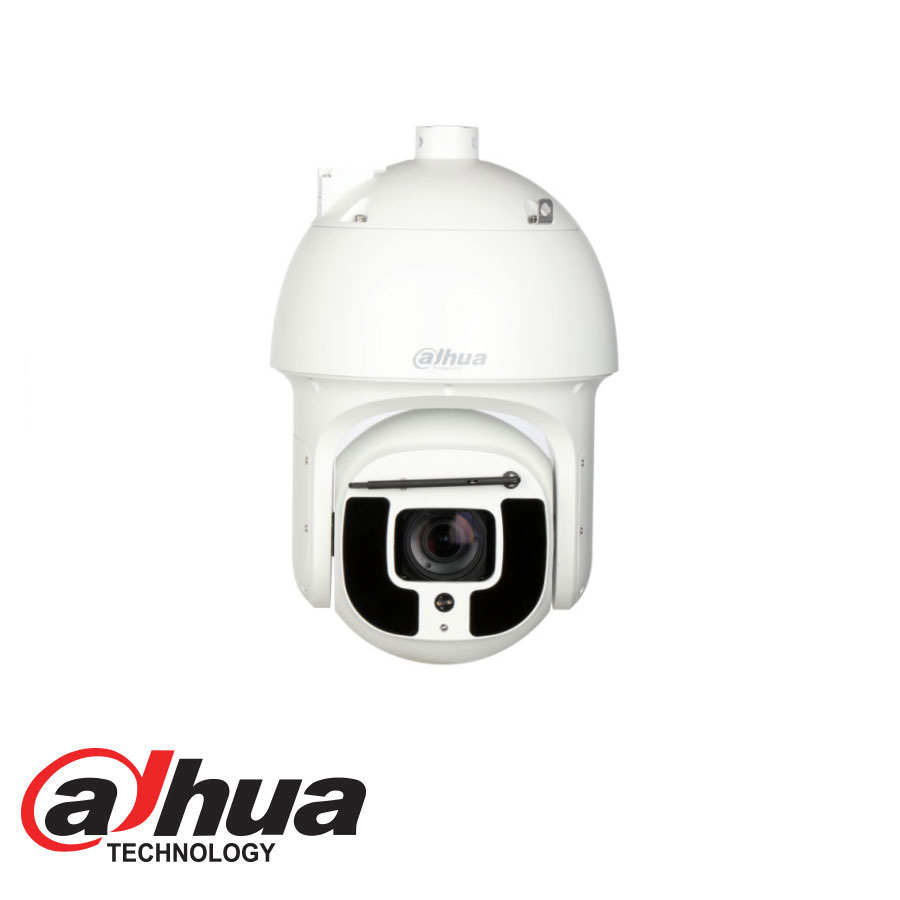

Dahua 8MP AI Starlight PTZ 40X Zoom 5.6-223MM Lens

Key Features

• 40x Optical Zoom (5.6 - 223mm Lens)
• 4K Real Time Display
• H.265 Compression
• 500m IR Range
• Day/Night with IR Cut
• True WDR
• 1x Audio In, 1x Audio Out
• 7x Alarms In, 2x Alarms Out
• Smart Features incl: Object Abandoned/Missing, Intrusion, Tripwire
• Intelligent Features incl: Face Detection, Auto-Tracking 2.0 & Perimeter Protection
• Smart Wiper, Heater, Defog
• Hi-PoE
• IP67 Rated
• PSU & Wall Mount Included
• Size: 262 x 415mm

SPECIFICATION

• Model Number: SD8A840WA-HNF

CAMERA

• Image Sensor: 1/2.8" STARVIS™ CMOS
• Resolution: 8 Mega Pixels
• Effective Pixels: 3840 x 2160,
• Scanning System: Progressive
• Electronic Shutter Speed : 1/1s~1/30000s
• Min Illumination : Colour:0.002Lux@F1.4, B/W:0.0002Lux@F1.4 0Lux@F1.4 (IR on)
• IR Distance : 500m
• IR On/Off Control: Auto/Manual
• IR LEDs: 10
• Smart Wiper : Support

LENS

• Focal Length: 5.6 ~ 223mm
• Max Aperture: F1.4 ~ F4.8
• Angle of View: H:63.9°~2.0° , V:37.2°~1.2°
• Optical Zoom: 40x
• Focus Control: Auto/Manual
• Close Focus Distance: 100~1000mm

PAN/TILT/ROTATION

• Pan/Tilt/Rotation Range : Pan:0°~360° endless; tilt:-30°~90°, Auto Flip 180°
• Manual Control Speed : Pan: 0.1°~240° /s, Tilt: 0.1°~100° /s
• Preset Speed : Pan: 240° /s, Tilt: 120° /s
• Presets: 300
• PTZ Mode: 5 Pattern, 8 Tour, Auto pan, Auto Scan
• Speed Setup: Human-oriented focal length/ Speed adaptation
• Power Up Actions : Auto restore to Previous PTZ and Lens status after power failure
• Idle Motion : Activate Preset / Scan / Tour / Pattern if there is no command in the specified
• period
• Protocol : DH-SD, Pelco-P/D (Auto recognition)

ARTIFICIAL INTELLIGENCE

• Auto Tracking: Support
• Face Recognition: Support
• Perimeter Protection: Tripwire, Intrusion. Support alarm triggering by target (Human and
• Vehicle) Filtering alarms caused by animals, leaves, bright lights, etc.
• Video Structuralisation : Support Human,Motor vehicles and non-motor vehicle image
• capture.

GENERAL INTELLIGENCE

• Evemt Trigger: Motion Detection, Video tampering, Scene Change, Network disconnect, IP
• conflict, Illegal Access, Storage anaomly
• General Intelligence: Abandoned/Missing

VIDEO

• Compression: H.265+/H.265/H.264+/H.264
• Streaming Capability : 3 Streams
• Resolution: 4K , 1080P, 720P, D1, CIF
• Frame Rate : Main stream: 4K/1080P/1.3M/720P(1~25/30fps) Sub stream1: D1/CIF(1 ~
• 25/30fps)
• Bit Rate Control: CBR/VBR
• Bit Rate: H.265/H.264: 512Kbps~8192Kbps
• Day/Night: Auto / Colour / B/W
• BLC Mode: BLC / HLC / WDR
• White Balance: Auto, ATW, Indoor, Outdoor, Manual
• Gain Control: Auto / Manual
• Noise Reduction: Ultra DNR (2D/3D)
• Motion Detection: Support
• Region of Interest : Support
• Electronic Image Stabilization : Support
• Defog: Support
• Digital Zoom: 16x
• Flip: 180°
• Privacy Masking : Up to 24 areas

AUDIO

• Compression : G.711a/G.711mu/PCM/G.726/AAC/G722.1/G729/MPEG2-Layer2

NETWORK

• Ethernet: RJ-45 (10Base-T/100Base-TX)
• Protocol: IPv4/IPv6, HTTP, HTTPs, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP,
• SMTP, NTP, DHCP, DNS, PPPOE, DDNS FTP, IP Filter, QoS, Bonjour, 802.1x
• Interoperability: ONVIF Profile S&G, API
• Streaming Method: Unicast / Multicast
• Max User Access : 20 Users
• Edge Storage : NAS, Local PC for instant recording, Micro SD card 256GB
• Web Viewer: IE, Chrome, Firefox, Safari
• Management Software : Smart PSS, DSS, DMSS
• Smart Phone: IOS, Android

INTERFACE

• Video Interface : 1 Port (BNC, 1.0V[p-p], 75?)
• Audio Interface : 1 in / 1 out
• RS485: 1
• Alarm : 7 in / 2 out

ELECTRICAL

• Power Supply: AC24V/3A (±25%), Hi-PoE
• Power Consumption: 25W (IR off) / 42W (IR on)

ENVIRONMENTAL

• Operating Conditions: -40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH
• Ingress Protection: IP67
• Vandal Resistance : N/A

CONSTRUCTION

• Casing : Metal
• Dimensions : Ø262 x 415.6mm
• Net Weight : 8.5kg
• Gross Weight : 13.5kg
