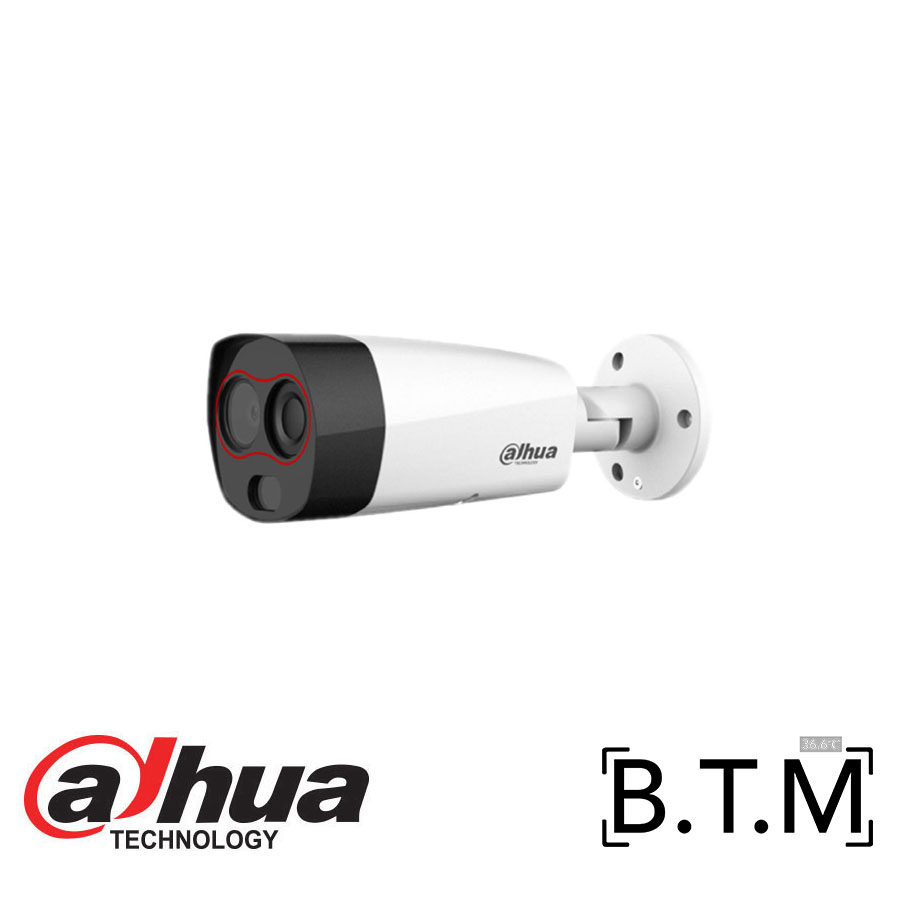

Dahua 2MP - Thermal - 7.5MM Lens BTM System

Key Features

• 256x192 VOx Uncooled Thermal Sensor Technology
• 1/2.8" 2MP Progressive Scan CMOS
• PoE
• H.265
• Athermalised lens
• Skin Temperature Measurement
• Measurement Accuracy: ±0.3°C, with Blackbody
• Active Deterrence with White Light & Siren
• 1x Audio In, 1x Audio Out
• 2x Alarm In, 1x Alarm Out
• 50M IR Range
• 12v DC Power Input
• Size: 280mm x 104mm x 96mm

SPECIFICATION

• Model Number: TPC-BF2221P-HTM

THERMAL

• Detector Type: Vanadium Oxide Uncooled FPA
• Effective Pixels : 256(H)x192(V)
• Pixel Pitch: 12um
• Spectral Range : 8~14um
• Thermal Sensitivity (NETD): <50mK
• Focal Length: 7.5mm
• Field of View: H:32.4°, V:24.6°
• Focus Mode : Fixed
• Aperture : F1.0
• Digital Detail Enhancement (DDE): Yes
• Thermal Imange Stabilisation: N/A
• AGC: Auto/Manual
• Noise Reduction : 2D NR / 3D NR
• Image Flip: 180°/Mirror
• Colour Palettes: 18 Colour Modes
• Temperature Measurement Range : 30°C~+45°C
• Temperture Accuracy: Max:ñ0.3°C with blackbody; Max:ñ1°C without Blackbody when the
• environment temperature is 10°C to 30°C (50°F to 86°F)
• Temperature Mode : N/A

VISIBLE

• Image Sensor: 1/2.8" 2M CMOS
• Effective Pixels : 1920 x 1080
• Electronic Shutter Speed : 1/1 ~ 1/30000s
• Min. Illumination: Colour: 0.01Lux; B/W:0.001Lux; IR on: 0Lux
• IR Distance : 50m
• IR On/Off Control: Auto/Manual
• IR LEDs : 1
• Focal Length: 6mm
• Max. Aperture: F2.0
• Angle of view: H:52.8°, V:30.3°

AUDIO AND VIDEO

• Video Compression : H.265, H.264, H.264H, H.264B, MJPEG
• Resolution: Thermal: 1280x1024, 1024x768, 640x480, 256x192 Visible: 1920x1080,
• 1280x720, 704x577
• Audio compression: G.711a, G.711mu, AAC, PCM
• Image Encoding Format : JPEG

GENERAL FUNCTION

• Two-way Talk: Yes
• Network Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,
• RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Region of Interest : Yes
• Edge Storage : FTP, Micro SD card (max 256G)
• Interoperability: ONVIF, CGI, Dahua SDK
• Browser: IE, Chrome, Firefox, Safari
• User/Host: 20 Users max
• Security: Authorized username and password; attached MAC address; encrypted HTTPs,
• IEE802.1x; controlled network access
• Malfunction Detection: Net disconnect, IP conflict, SD card error.

PORT

• Analog Video Output: N/A
• Network: 1x RJ45 (10/100)
• Alarm Input: 2
• Alarm Output : 1
• Audio Input : 1
• Audio Output: 1
• Alarm Linkage : SD card recording/on-off output/siren and light/email/snapshot
• Alarm Event: Human Body Temperature
• RS-485: 1 channel

POWER

• Power Supply : DC12Vñ20% 1A, PoE (802.3af), ePoE
• Power Consumption: Basic consumption: <8W (12V DC) Max consumption: <18W (12V
• DC, without power adapter)

ENVIRONMENT

• Operating Temperature: 10°C~30°C
• Operating Humidity: <93%
• Self-Adaptive : Auto heating to protect the chip in cold environments

PHYSICAL CHARACTERISTICS

• Protection Grade : IP67
• Dimensions: 365mm x 175mm x 176mm (With bracket)
• Net Weight: ?1.4 kg (3.09 lb)
• Gross Weight: ?1.9 Kg (4.19 lb)
• Power Adaptor : Selectable
• Lens : NA
