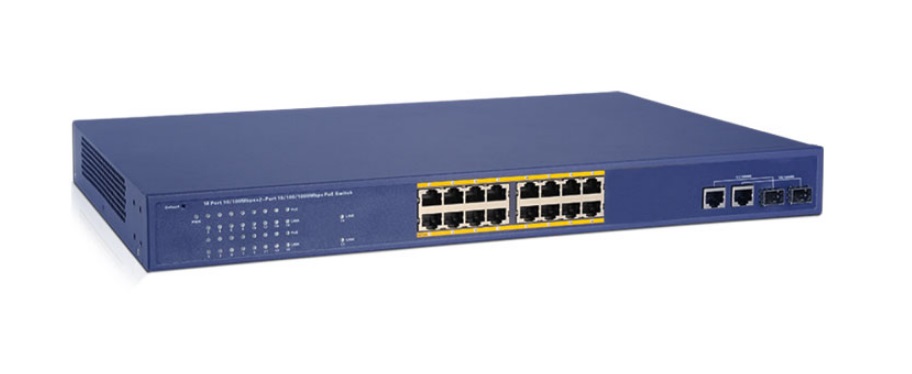

16 Port POE Switch

Information:

• 16 port POE (10/100Mbps)
• 2 uplink pots (10/100/1000Mbps)
• Fully IEEE802.3af compliant
• Support up to 15.4W per port
• Total power budget : 250W
• Plug & play
• PSU included
• Rackmount brackets included
• 1 Year Warranty

• Model Number SWITCH-16P
• Type 16 Port Switch
• Network Standards IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3af
• Network Speed 10/100Mbps
• POE 15.4W per port(IEEE802.3at)
• Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5(+)and 7/8(-)
• Cable:UPT cat.5 or higher
• Processing types Store-and-forward Half-duplex back pressure and
• IEEE802.3x full- duplex flow control
• Buffer memory 2.7Mb embedded memory per unit
• Network latency Less than 20us for 64-byte frames in Store-and- forward mode
• Power Input AC90-260V input
• PoE power consumption 15.4W /port
• Power budget 250W/450W built in adaptor
• Casing Metal case
• Dimensions (L) 440mm x (W) 315mm x (H) 44mm
• Weight 3KG
• LED Indicators System:Power,PoE Maximum power
• Per port:Link,Activity,Speed PoE active,PoE error
• Installation Rack Mount
• Operating Temperature 0–55 °C
• Storage Temperature -10–70 °C
• Operating Humidity 90% max relative humidity, on-condensing
• Storage Humidity 90% max relative humidity, on-condensing
• Safety CE/ROHs/FCC
