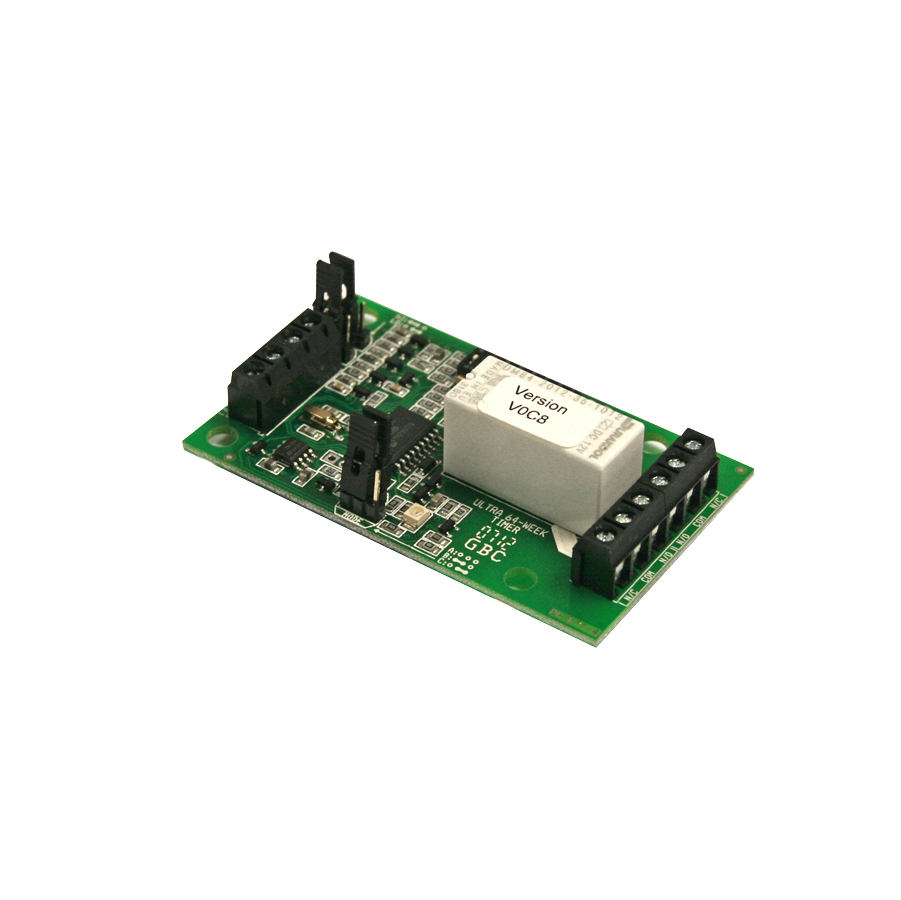

We're really sorry... This product is listed for support only Please add your email to our mailing list for product updates and news Email Home» Accessories» Relay Boards Ultra TimerProduct ID AT-372Price: £39.99 (£47.99 Inc. VAT)+- Add to cart« Previous | Next »AT-372 A versatile timer unit Operate between 12V and 24V DC Adjustable from 1 second to 64 weeks 3 modes of operation Size: 87 x 74mm 3 Year Warranty SPECIFICATION Model Number: AT-372 Operating Voltage: Input: 9.5v to 30v Trigger Levels Low: Less than 220 ohms to ground OR an input of less than 0.8 volts Trigger Levels High: Greater than 4700 ohms to ground OR an input of greater than 4 volts Maximum input voltage 30V Minimum input voltage -4V Peak current available from either pin, 5mA AC Output Voltage: Maximum switching voltage 250 volts, maximum current 8 Amps (non inductive load) DC Output Voltage: Maximum switching voltage 30 volts, maximum current 5 Amps (non inductive load) Minimum switching level 5V @ 10mA Operating Temperature: -10°C~+60° Dimensions: 77.9x47mm Packing Weight: 80g Product ReviewsNo Reviews For This Product.Click to review this product
