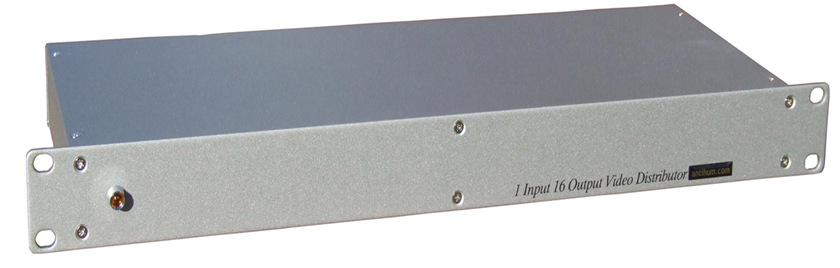

Video Distributor 1 Input 16 Outputs

• 16 x BNC Video outputs
• 1 x Video BNC input
• 12V DC 500mA
• 240V AC
• Bandwidth 10hz - 10Mhz
• 0.8 - 1.2V p - p 75 ohm
• Power switch and LED
• Metal construction
• Rack mounting 1U space
• Dimensions 482 x 170 x 44mm
• 1 Year Warranty

This mains powered CCTV video distributor takes a single video input from a security camera and duplicates it up to 16 times for multiple outputs to DVR's and monitors. Designed for rackmount for professional installation.

This allows users the ability to view the images of one security camera on multiple devices such as viewing monitors in seperate rooms.
